Polyurethane Panel Machine
US$ 1,000,000 - 1,500,000
MOQ: 1 Set
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Specifications
polyurethane panel machine, polyurethane machine- Continuous production line of rigid polyfoam sandwich panel| polyurethane panel machine , polyurethane machine -Continuous Production Line of Rigid Polyfoam Sandwich Panel with Color-Steel Facings |

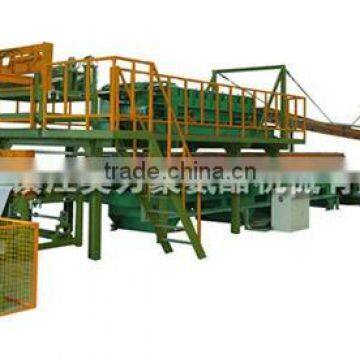

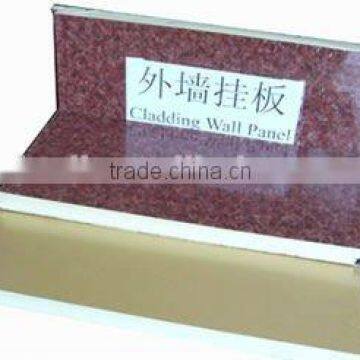

| The line is a kind of specialized polyurethane machine equipment used for producing color-steel-sided sandwich panels with the middle layer of anti-combustion polyurethane, polyisocyanurate or phenolic foam. The thickness of the produced sandwich panel ranges from 30 to 150 mm, the width between 700 and 1000 mm and the length on request. The production line is mainly applied to make wall and roof panels of steel structure buildings, which can also make various other insulation panels if replacing facing sheet. Its operation principle is as follows: Rigid polyfoam raw materials, according to a certain blending ratio, are delivered into mixing head to agitate through metering pump unit on the injection machine and then uniformly injected onto the bottom facing sheet of sandwich panel. After the injection, the bottom facing sheet shall move toward the double-belt conveyors together with panel’s top facing sheet. Between the two conveyors, injected raw material is foamed and hardened into shape. At the end of the line, the formed sandwich panel is cut into preset length by an automatic tracking cutter. |
1. Hydraulic decoiler 2. Upper and lower forming machine 3. Pre-heating table 4. Heating oven 5. Reaction injection machine 6.Side chemical sealing installation 7. Double-belt laminator 8. Hot-air circulator 9. Cross-cutter 10. Hydraulic clipper & film coverer 11. Mobile injector
| Main technical parameters |
| Specification of the panel 700~1000mm (width) 30~150mm (thickness) Length to be custom-made Production speed 3~8m/min Length of belt laminator 24m Max temperature of hot-air circulation 70°C Dimensions of the line about 97000×7,000×3,800mm(L×W×H) Total power about 213kw Power of hot-air furnace 200000 kcal |
