200L Pallet Four Drum Liquid Filling Machine

200L Pallet Four Drum Liquid Filling Machine photo-1

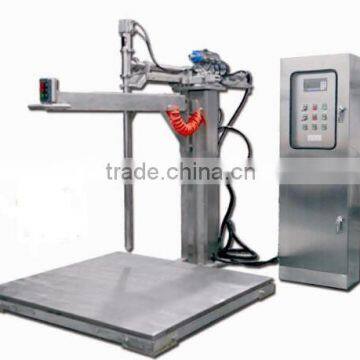

200L Pallet Four Drum Liquid Filling Machine photo-2

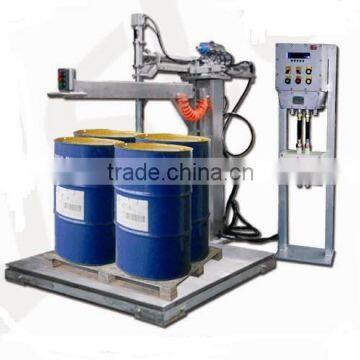

200L Pallet Four Drum Liquid Filling Machine photo-3
US$ 8,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Food, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 110-220V
Power 1.5kw
Place of Origin Jiangsu, China
Brand Name Vstar
Model Number V5-1500AFR
Dimension(L*W*H) 1880x980x2230mm
Weight 600kg
Certification CE
After-sales Service Provided Overseas third-party support available

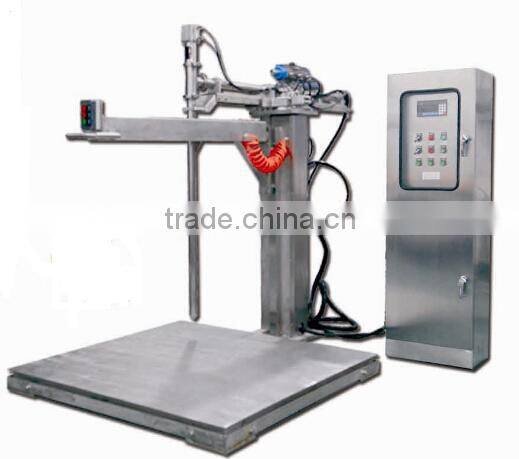

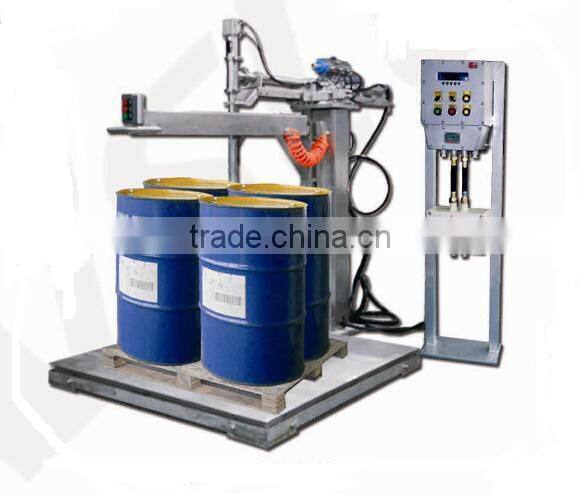

200L Pallet four Drum Liquid Filling Machine

1.Suitable for quantitative filling of chemical industry, food, medical industry

2.The system uses PLC, touch screen, safe and reliable

3.Filling nozzle and pipe use quick coupling, convenient for removing and washing

4.Automatic 2-shift filling with high accuracy

5.The filling nozzle automatically lifts when it is not inserted into a barrel

6.The nozzle automatically lifts when reaching the target filling amount

7.Gross or net filling mode is available

8.Be able to set and store 30 groups of formula for use

9.Free to set target filling amount in order to be convenient for different packing

10.Filling with one button, easy to operate (manual operation mode available)

11.Automatic balance exceeding alarm and material supply control

12.Double windows display filling quantity, barrel quantity, total quantity, etc.

13.Automatic identification of empty barrel weight range and no barrel no filling

Application Sites
·  1. Filling 60L, 100L, and 200L drums and filling IBC and POLY TANK
·  2. Directly filling the drums stocked on the pallet
·  3. Resin, solvent, and varnish products
·  4. Food and beverage products such as liquid sugar, cooking oil, and resin
·  5.Liquid chemicals

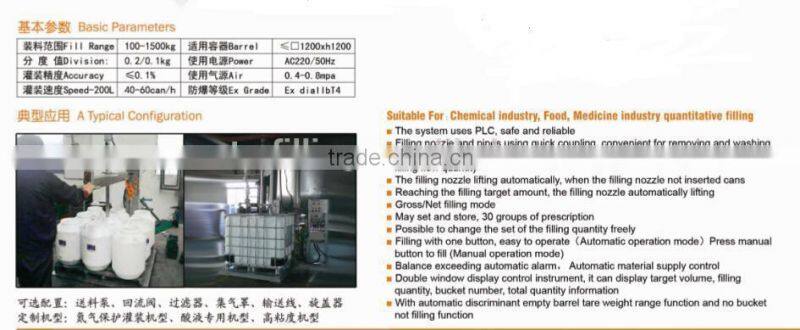

Specifications
· 1.  Max. Capacity : 300kg X 4drums
· 2.  Division:0.2kg/drum
· 3.Filling Capacity : 100~1200kg
· 4.Filling Accuracy : ≤ 0.1%
· 5. Filling Speed : 40~60 Drum/hr
· 6.Up/Down Rang: 0-50mm(H)
· 7.Platform: 1300X1300mm
· 8.Barrel Dimension: ≤φ600×h950mm
· 9.Air Pressure : 0.4~0.8Mpa
· 10. Filling Valve:Material:SUS304/316
· 11.Power: AC 110V/220V, 50/60Hz, 10A
· 12. Operating Temperature:-10°C to 40°C
OPTION:

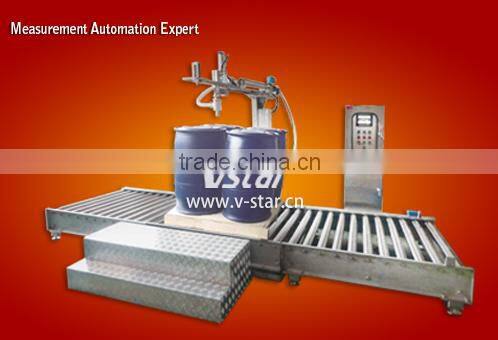

Roller Track: 1500X1300mm
Optional configuration

feed pump, reflux valve, filter, gas-collecting hood, conveyor line, capping machine

Customized  type:

nitrogen protection filling type, dedicated type for acid liquid, explosion-proof type


200L Pallet four Drum Liquid Filling Machine
 200L Pallet four Drum Liquid Filling Machine200L Pallet four Drum Liquid Filling Machine200L Pallet four Drum Liquid Filling Machine200L Pallet four Drum Liquid Filling Machine200L Pallet four Drum Liquid Filling Machine
