Foam Solvent Lance Liquid Filling Machine

Foam Solvent Lance Liquid Filling Machine photo-1
US$ 7,000 - 7,500 MOQ: 1 Case
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Food, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 110V-220V
Power 3KW
Place of Origin Jiangsu, China
Brand Name V-star
Model Number V5-30BSuitable for quantitative filling of foam solvent, chemical indu
Dimension(L*W*H) 1480*600*1620MM
Weight 250KG
Certification CE
After-sales Service Provided Overseas third-party support available

Lance Liquid Filling Machine



Suitable for quantitative filling of foam solvent, chemical industry and food

The system uses PLC, touch screen, safe and reliable

Filling nozzle and pipe use quick coupling, convenient for removing and washing

Automatic 2-shift filling with high accuracy

The filling nozzle automatically lifts when it is not inserted into a barrel

The nozzle automatically lifts when reaching the target filling amount

Gross or net filling mode is available

Be able to set and store 30 groups of formula for use

Free to set target filling amount in order to be convenient for different packing

Filling with one button, easy to operate (manual operation mode available)

Automatic balance exceeding alarm and material supply control

Double windows display filling quantity, barrel quantity, total quantity, etc.

Automatic identification of empty barrel weight range and no barrel no filling

Application Sites
·   Filling the 4~10L small cans
·   Filling each 18L can / 20L pail
·   Filling various containers such as P.E BOTTLE
·   The extra facility of the full automatic filling facility
Specifications
·   Max. Capacity : 30kg
·   Division:10g
·   Filling Capacity : 10~30kg
·   Filling Accuracy : ≤ 0.1%
·   Filling Speed : 120~240 Pail/hr
·   Up/Down Rang: 0-50mm(H)
·   Platform: 400X400mm
·   Roller Track: 400X1000mm
·   Barrel Dimension: ≤φ400×h500mm
·   Air Pressure : 0.4~0.8Mpa
·   Filling Valve:Material:SUS304/316
·   Power: AC 110V/220V, 50/60Hz, 10A
·   Operating Temperature:-10°C to 40°C

Optional configuration:

feed pump,reflux valve, filter, gas-collecting hood, castor, capping machine

Customized type:

nitrogen protection filling type, dedicated type for acid liquid, special type

 foam solvent Lance Liquid Filling Machine

foam solvent Lance Liquid Filling Machinefoam solvent Lance Liquid Filling Machine

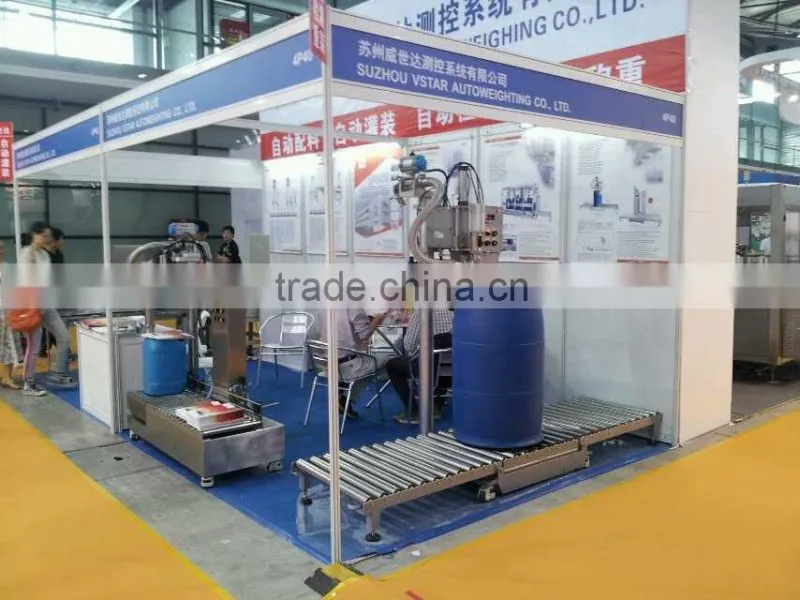

our exhibition:

foam solvent Lance Liquid Filling Machine
