Automatic Liquid Filling Machine 200L

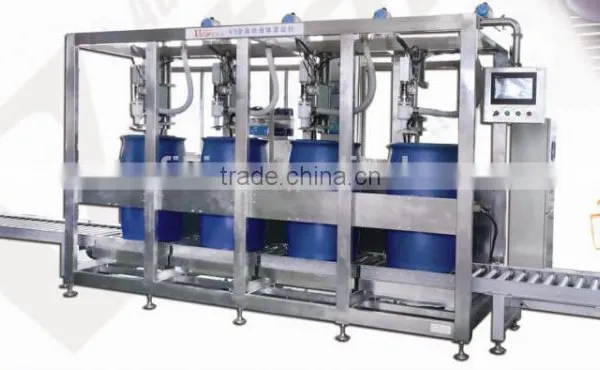

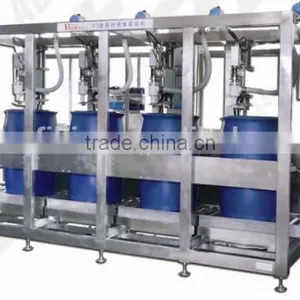

Automatic Liquid Filling Machine 200L photo-1

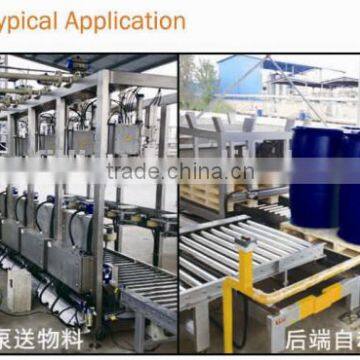

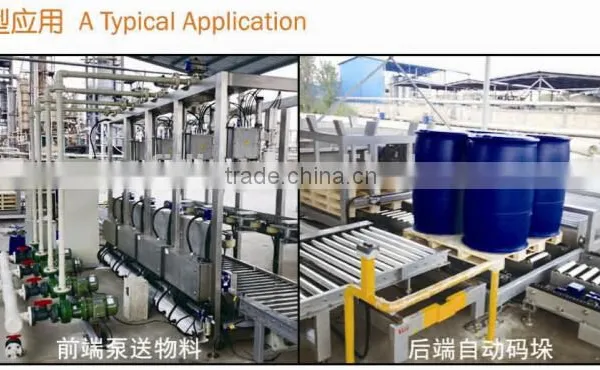

Automatic Liquid Filling Machine 200L photo-2

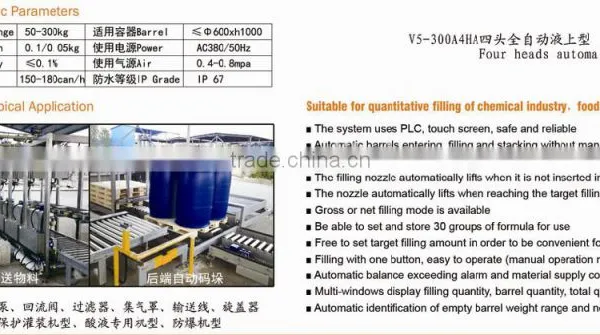

Automatic Liquid Filling Machine 200L photo-3
US$ 80,000 - 130,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Chemical, Food, Other, Medical, Apparel, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Chemical, Food, Other, Medical, Apparel, Chemical, Food, Machinery & Hardware, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 110-220V
Power 3kw
Place of Origin Jiangsu, China
Brand Name V-star
Model Number V5-300A4HA
Dimension(L*W*H) 17x4.9x2.2m
Weight 2500kg
Certification CE
After-sales Service Provided Overseas third-party support available

Automatic Liquid Filling Machine 200L V5-300A4HA



1. Suitable for quantitative filling of chemical industry, food, medical industry

2. The system uses PLC, touch screen, safe and reliable

3. Automatic barrels entering, filling and stacking without manual operation

4. Automatic 2-shift filling with high accuracy

5. The filling nozzle automatically lifts when it is not inserted into a barrel

6. The nozzle automatically lifts when reaching the target filling amount

7. Gross or net filling mode is available

8. Be able to set and store 30 groups of formula for use

9. Free to set target filling amount in order to be convenient for different packing

10. Filling with one button, easy to operate (manual operation mode available)

11. Automatic balance exceeding alarm and material supply control

12. Multi-windows display filling quantity, barrel quantity, total quantity, etc.

13. Automatic identification of empty barrel weight range and no barrel no filling

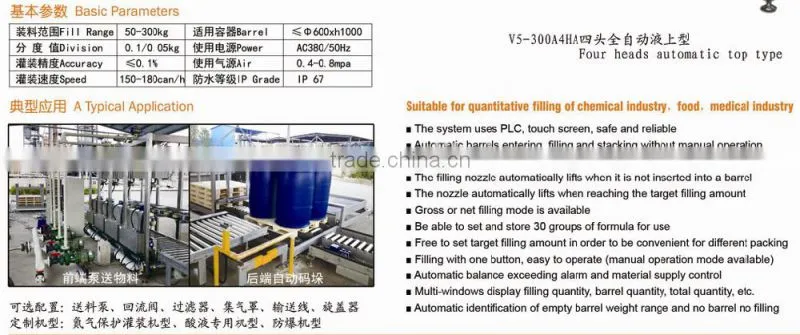

Basic Parameters

Fill Range

50-300kg

Barrel

≤Φ600×h1000

Division

0.1/0.05kg

Power

AC380/50Hz

Accuracy

≤0.1%

Air

0.4-0.8mpa

Speed

150-180can/h

IP Grade

IP 67



Optional configuration:

feed pump, reflux valve, filter, gas-collecting hood, conveyor line, capping machine



Customized  type:

nitrogen protection filling type, dedicated type for acid liquid, explosion-proof type

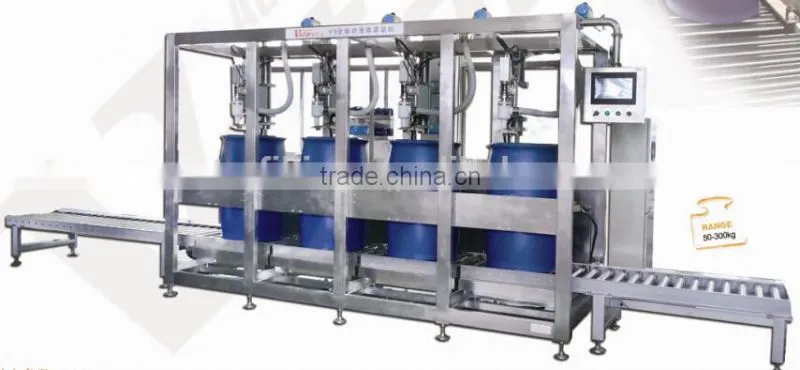

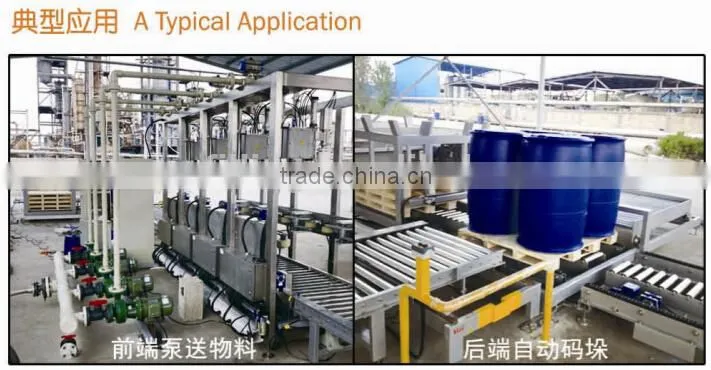

Automatic Liquid Filling Machine 200L
