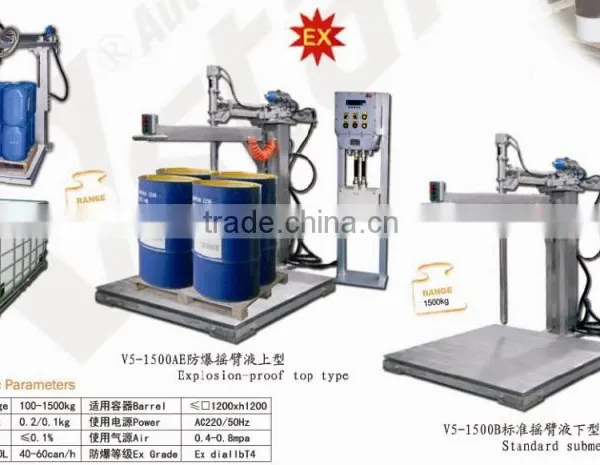

IBC Tank Liquid Filling Machine Scale

FOB Price

US$ 10,000 - 20,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type	Case	Packaging Material	Wood
Automatic Grade	Semi-Automatic	Driven Type	Electric
Voltage	110-220V	Power	1.5kw
Place of Origin	Jiangsu, China	Brand Name	V-star
Model Number	V5-1500AE	Dimension(LWH)	18809802230mm
Weight	600kg	Certification	CE
After-sales Service Provided	Overseas third-party support available

Product Description

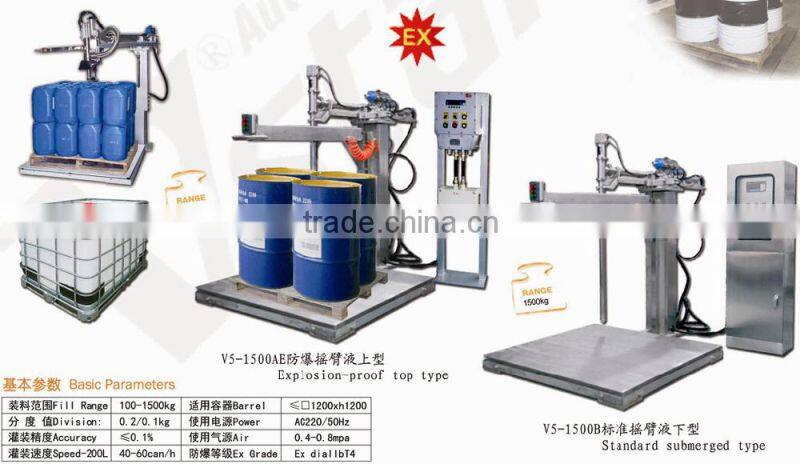

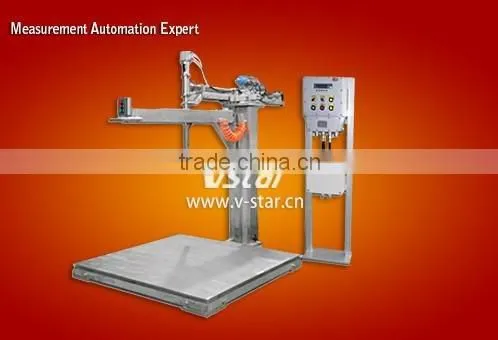

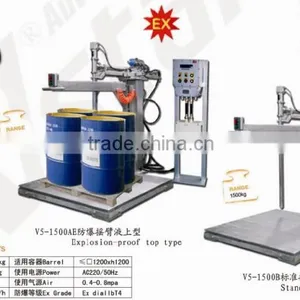

IBC tank Liquid Filling Machine

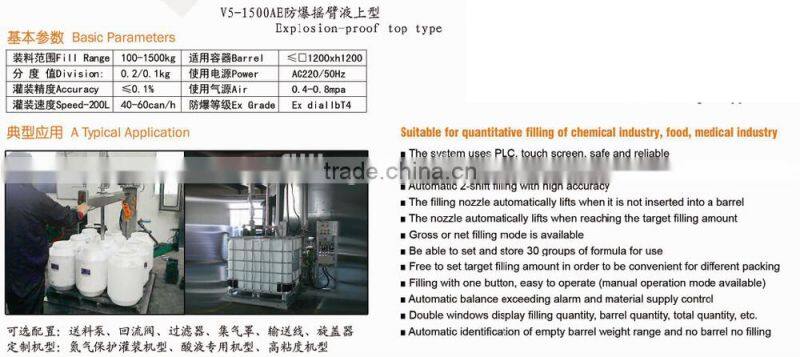

1. Suitable for quantitative filling of chemical industry, food, medical industry

2. The system uses PLC, touch screen, safe and reliable

3. Filling nozzle and pipe use quick coupling, convenient for removing and washing

4. Automatic 2-shift filling with high accuracy

5. The filling nozzle automatically lifts when it is not inserted into a barrel

6. The nozzle automatically lifts when reaching the target filling amount

7. Gross or net filling mode is available

8. Be able to set and store 30 groups of formula for use

9. Free to set target filling amount in order to be convenient for different packing

10. Filling with one button, easy to operate (manual operation mode available)

11. Automatic balance exceeding alarm and material supply control

12. Double windows display filling quantity, barrel quantity, total quantity, etc.

13. Automatic identification of empty barrel weight range and no barrel no filling

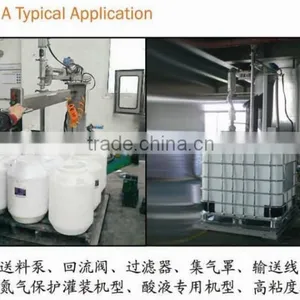

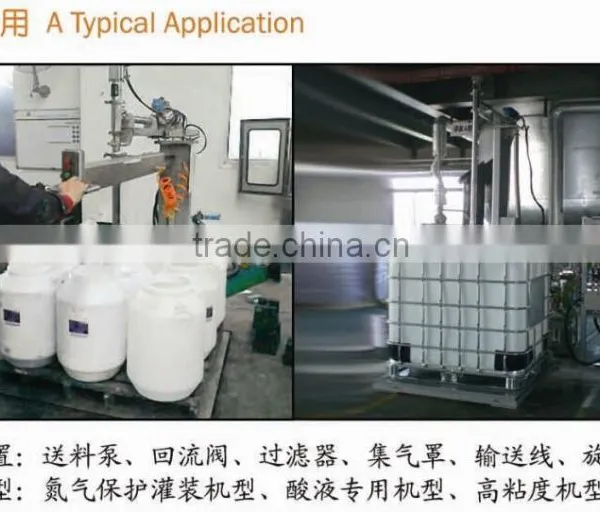

Application Sites

·   Filling 60L, 100L, and 200L drums and filling IBC and POLY TANK
·   Directly filling the drums stocked on the pallet
·   Resin, solvent, and varnish products
·   Food and beverage products such as liquid sugar, cooking oil, and resin
·   Liquid chemicals

Specifications

1. Max. Capacity : 300kg X 4drums

2. Division:0.2kg/drum

3. Filling Capacity : 100~1200kg

4. Filling Accuracy : ≤ 0.1%

5. Filling Speed : 40~60 Drum/hr

6. Up/Down Rang: 0-50mm(H)

7. Platform: 1300X1300mm

8. Barrel Dimension: ≤φ600×h950mm

9. Air Pressure : 0.4~0.8Mpa

10. Filling Valve:Material:SUS304/316

11. Power: AC 110V/220V, 50/60Hz, 10A

12. Operating Temperature:-10°C to 40°C

OPTION: Roller Track: 1500X1300mm

Optional configuration

feed pump, reflux valve, filter, gas-collecting hood, conveyor line, capping machine

Customized type:

nitrogen protection filling type, dedicated type for acid liquid, high viscosity type

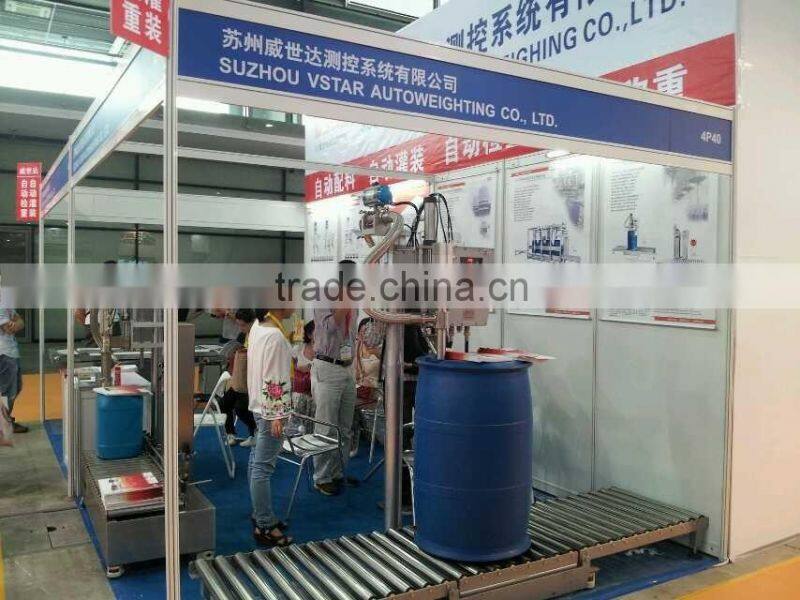

Our Exhibition:
