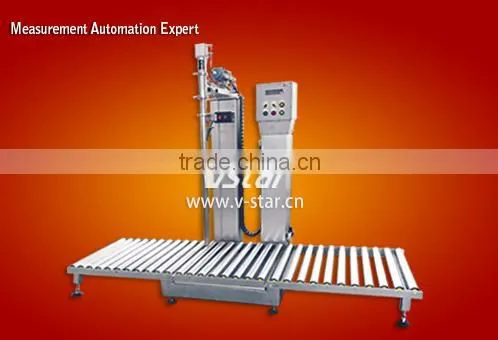

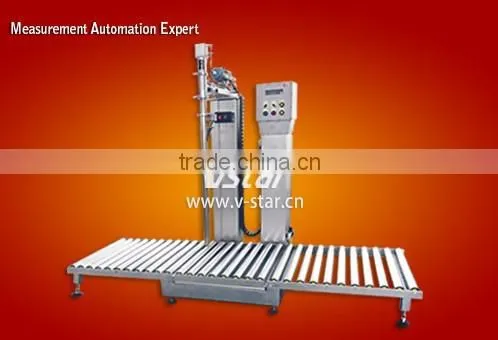

Hydrofluoric Acid Expiosion-proof Liquid Filler

Hydrofluoric Acid Expiosion-proof Liquid Filler photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Food, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 110-220V
Power 3KW
Place of Origin Jiangsu, China
Brand Name V-star
Model Number V5-300BE
Dimension(L*W*H) 1100*578*1358MM
Weight 300kg
Certification CE
After-sales Service Provided Overseas third-party support available

Hydrofluoric acid Expiosion-proof Liquid Filler

Suitable for quantitative filling of foam liquid in chemical industry, food, medical industry

The system uses PLC, touch screen, safe and reliable

Filling nozzle and pipe use quick coupling, convenient for removing and washing

Automatic 2-shift filling with high accuracy

The filling nozzle automatically lifts when it is not inserted into a barrel

The nozzle automatically lifts when reaching the target filling amount

Gross or net filling mode is available

Be able to set and store 30 groups of formula for use

Free to set target filling amount in order to be convenient for different packing

Filling with one button, easy to operate (manual operation mode available)

Automatic balance exceeding alarm and material supply control

Double windows display filling quantity, barrel quantity, total quantity, etc.

Automatic identification of empty barrel weight range and no barrel no filling

Application Sites
·   Oil
·   Solvent such as thinner
·   Liquid sugar
·   Cooking oil and resin
·   Resin
·   Food and beverage such as soy sauce
·   Paint and varnish
·   Other liquid chemicals
Specifications
·   Max. Capacity : 300kg
·   Division:0.1kg
·   Filling Capacity : 50~300kg
·   Filling Accuracy : ≤ 0.1%
·   Filling Speed : 40~60 Drum/hr
·   Up/Down Rang: 0-50mm(H)
·   Platform: 700X700mm
·   Roller Track: 700X1000mm
·   Barrel Dimension: ≤φ600×h950mm
·   Air Pressure : 0.4~0.8Mpa
·   Filling Valve:Material:SUS304/316
·   Power: AC 110V/220V, 50/60Hz, 10A
·   Operating Temperature:-10°C to 40°C
·   Explosion Proof Grade: EXdia II BT4
Optional configuration:

feed pump, reflux valve, filter,  gas-collecting hood, conveyor line, capping machine

Customized type:

nitrogen protection filling type, nozzle lifting as liquid level rise, 2-shift type

Hydrofluoric acid Expiosion-proof Liquid Filler



 Hydrofluoric acid Expiosion-proof Liquid Filler

Hydrofluoric acid Expiosion-proof Liquid Filler

Hydrofluoric acid Expiosion-proof Liquid Filler
