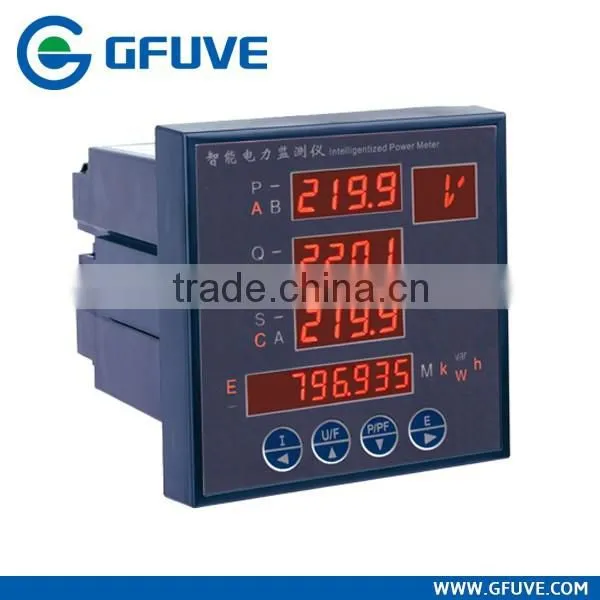

Multi-function Power Analyzer Digital ac Power Meter

Name: Multi-function Power Analyzer Digital ac Power Meter
Brand: GFUVE
SKU: 109755167
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

GFUVE

Model Number:

FU2030

Beijing GFUVE Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name GFUVE

Model Number FU2030

Measuring Current Range 0 ~ 6A

Measuring Voltage Range 30 ~ 600V

Accuracy Class 0.1%

Operating Temperature -25 ~ 55 °C

Dimensions 21mm(T) * 118mm(D)

Multi-function Power Analyzer digital ac power meter

Product Description

FEATURES

Electrical parameters
Power supply (AC/DC)	AC 85-265V/DC 85-330V Power consumption: <6VA
Measurement parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power (W); Reactive Power (Q); Apparent Power (S)
Computation	Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy
Measuring range	30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Measuring accuracy	Frequency: 0.1% Electric energy: 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power Factor : 0.5% ±0.001
Display	LED Display, 4 Displays. 4 operation keys.
Communication	RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol.
Analog output (expansion module)	DC 4-20mA output, programmable to any measured parameters.
Programmable	Measuring System : 3P4W/3P3W etc. Transformation Ratio : PT, CT. Communication: Address: 1-247; Baud: 1200-19200; Parity Bit: N/E/O Energy: Reset
Connection mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W
Mechanical parameters
Dimensions (mm)	Mounting panel: 120x120 Thickness: 21 Depth: 118
Mounting	Panel mounting Trepanning: 92x92mm
Environmental conditions
Temperature	-25 to +55°C
Humidity	20%-95%RH, without condensation
