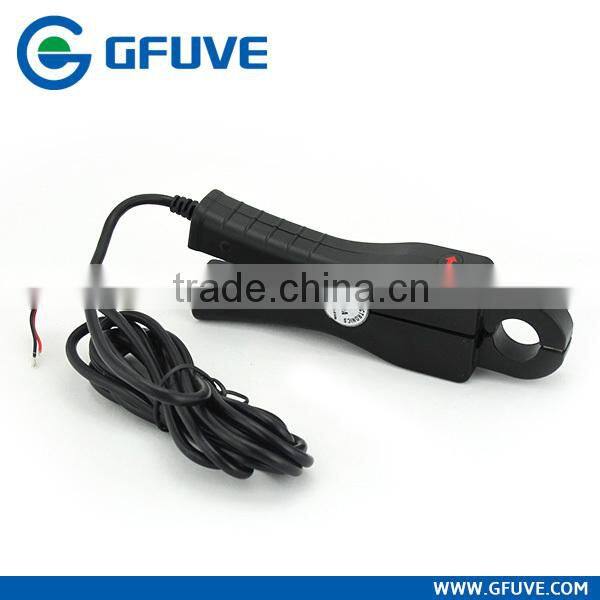

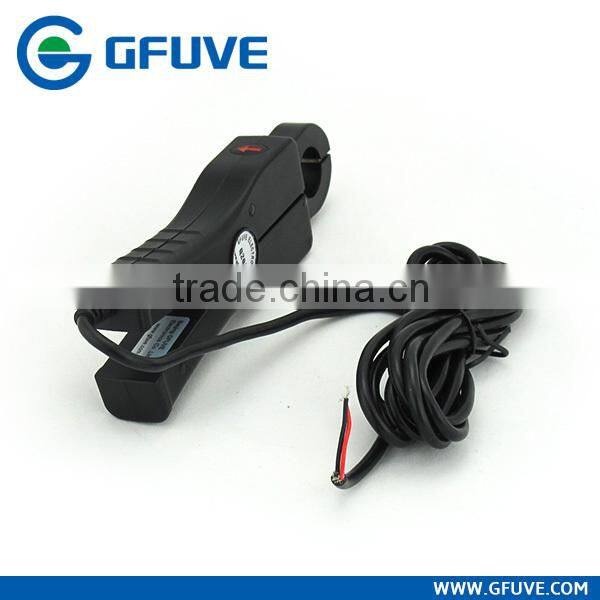

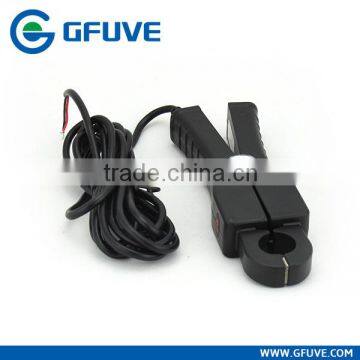

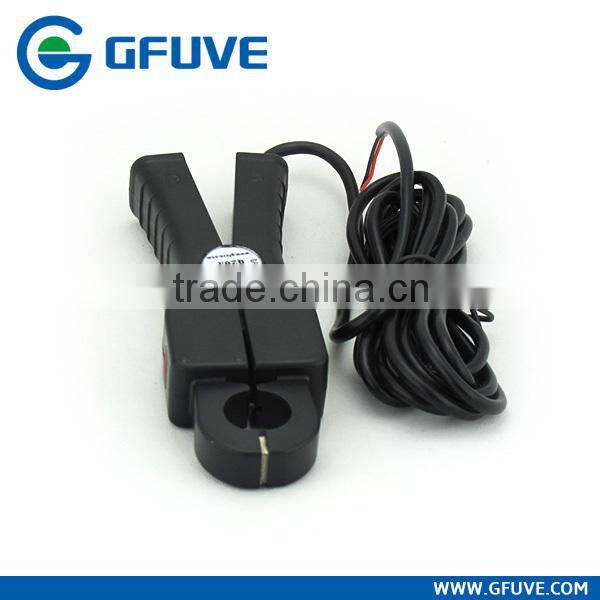

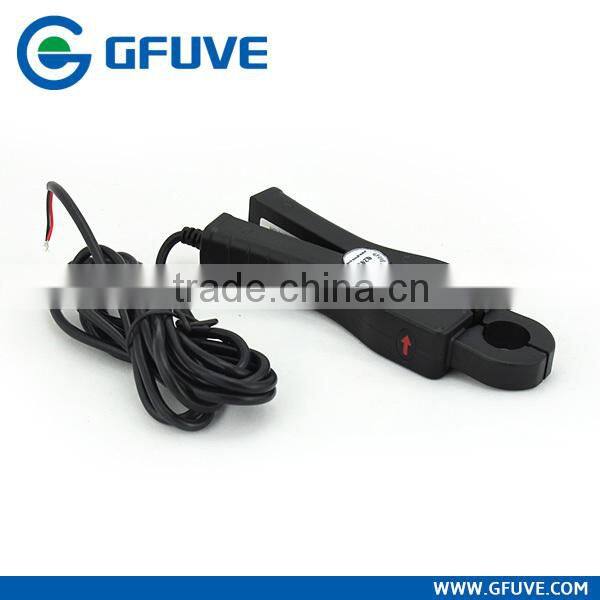

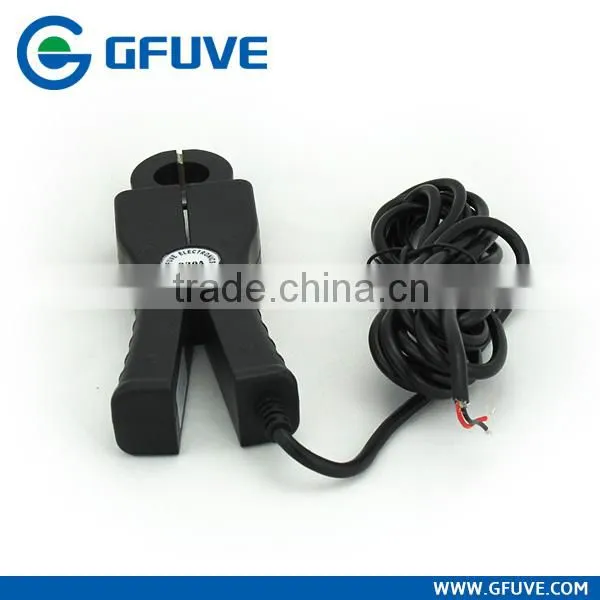

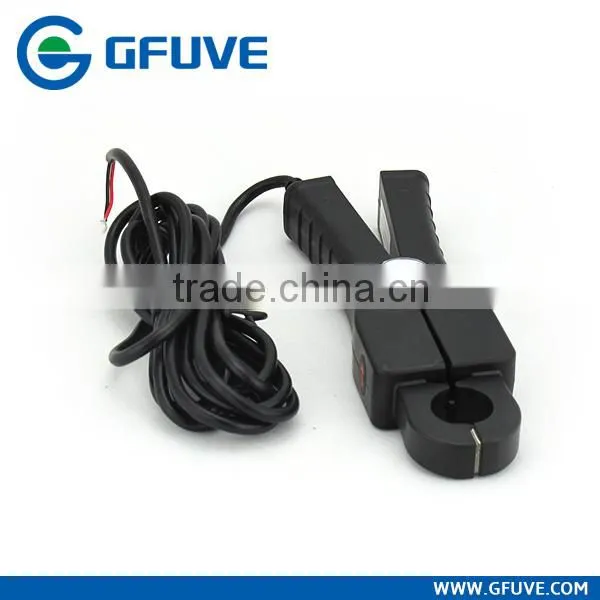

Open Core Current Sensor Test AC Probe
Suitable for 200 A cable online measurement.
Holding wire diameter:Φ20mm
Dimension:48mm×186mm×27mm
Load capacity:≤4Ω
Installation: clamp type
Output mode: lead output
Primary current |
Secondary current |
Compensation turns |
Precision |
30A |
30mA |
No |
Class 0.2% |
80A |
20mA |
No |
Class 0.2% |
80A |
20mA |
400 circle |
Class 0.2% |
100A |
20mA |
No |
Class 0.1%, 0.2% |
100A |
50mA |
No |
Class 0.1%, 0.2% |
100A |
100mA |
No |
Class 0.2% |
200A |
50mA |
No |
Class 0.1%, 0.2% |
200A |
100mA |
No |
Class 0.1%, 0.2% |
200A |
200mA |
No |
Class 0.2% |
Ratio |
1000: 1 or 2000:1 , customized |
Nominal input current |
200 A |
Max. Cont. Input current |
240A |
Accuracy |
0.1 %,0.2% |
Over voltage category |
CAT III 600 V |
Output signal |
200mA AC at nominal input current |
Frequency range |
40 Hz-2000 Hz |
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
Temperature range |
-20 °C to +55 °C |
Output |
2.5 meter cable with D01 connector |
Max. voltage not insulated conductors |
600 V |
Max. jaw opening |
20 mm |
Standard |
EN 61010-1 |
Dimensions |
48mm x 186mm x 27mm |
Weight |
300 g |

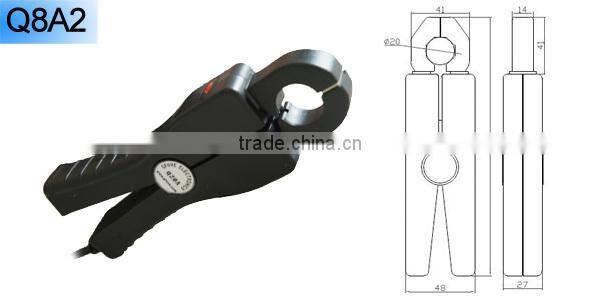

Layout
