AC Clamp On Current Probe

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	GFUVE
Model Number	Q50A

AC Clamp On Current Probe

Product Description

Holding wire diameter: φ50mm

Dimension: 101mm×219mm×26mm

Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA

Installation: clamp type

Output mode: lead output

Parameters

Primary current	Secondary current	Precision
10A	2.5mA	0.1%, 0.2%, 0.5%
10A	5mA	0.1%, 0.2%, 0.5%
20A	5mA	0.1%, 0.2%, 0.5%
100A	20mA	0.1%, 0.2%, 0.5%
100A	40mA	0.1%, 0.2%, 0.5%
100A	50mA	0.1%, 0.2%, 0.5%
100A	100mA	0.1%, 0.2%, 0.5%
200A	80mA	0.1%, 0.2%, 0.5%
200A	100mA	0.1%, 0.2%, 0.5%
200A	200mA	0.1%, 0.2%, 0.5%
300A	120mA	0.1%, 0.2%, 0.5%
300A	150mA	0.1%, 0.2%, 0.5%
300A	200mA	0.1%, 0.2%, 0.5%
300A	300mA	0.1%, 0.2%, 0.5%
500A	100mA	0.1%, 0.2%, 0.5%
500A	200mA	0.1%, 0.2%, 0.5%
500A	250mA	0.1%, 0.2%, 0.5%
500A	500mA	0.1%, 0.2%, 0.5%
600A	120mA	0.1%, 0.2%, 0.5%
600A	200mA	0.1%, 0.2%, 0.5%
600A	300mA	0.1%, 0.2%, 0.5%
600A	400mA	0.1%, 0.2%, 0.5%
600A	500mA	0.1%, 0.2%, 0.5%
600A	600mA	0.1%, 0.2%, 0.5%
700A	200mA	0.1%, 0.2%, 0.5%
700A	350mA	0.1%, 0.2%, 0.5%
700A	700mA	0.1%, 0.2%, 0.5%
800A	160mA	0.1%, 0.2%, 0.5%
800A	200mA	0.1%, 0.2%, 0.5%
800A	250mA	0.1%, 0.2%, 0.5%
800A	320mA	0.1%, 0.2%, 0.5%
800A	400mA	0.1%, 0.2%, 0.5%
800A	500mA	0.1%, 0.2%, 0.5%
800A	800mA	0.1%, 0.2%, 0.5%
500A-1000A	1A	0.2%, 0.5%
600A-1000A	1A	0.1%, 0.2%, 0.5%
200A	5A	1%
300A-500A	5A	0.5%
500A-1000A	5A	0.2%, 0.5%
Grounding resistance tester supporting	Need to match special instrument	0.1%, 0.5%

We offer customized probe according to requests

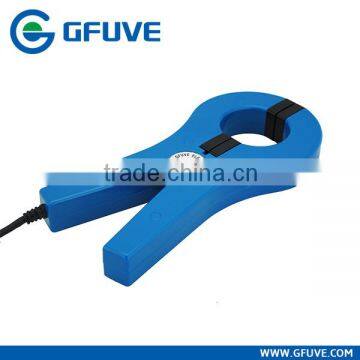

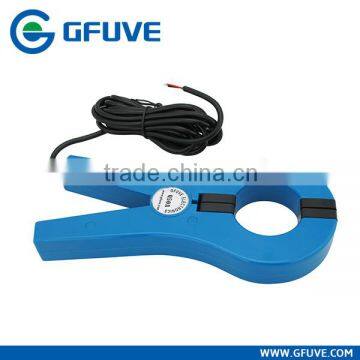

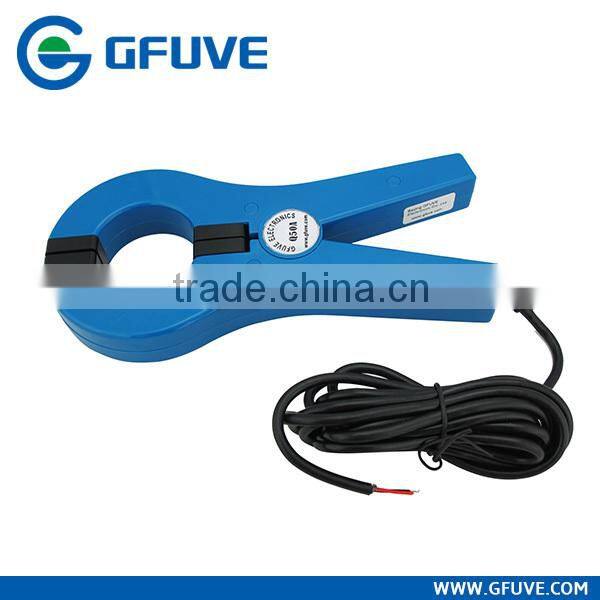

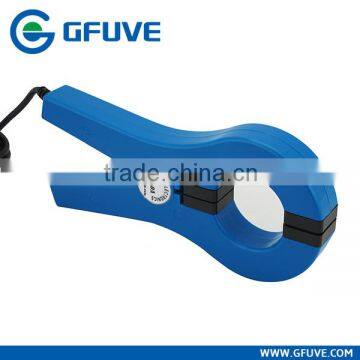

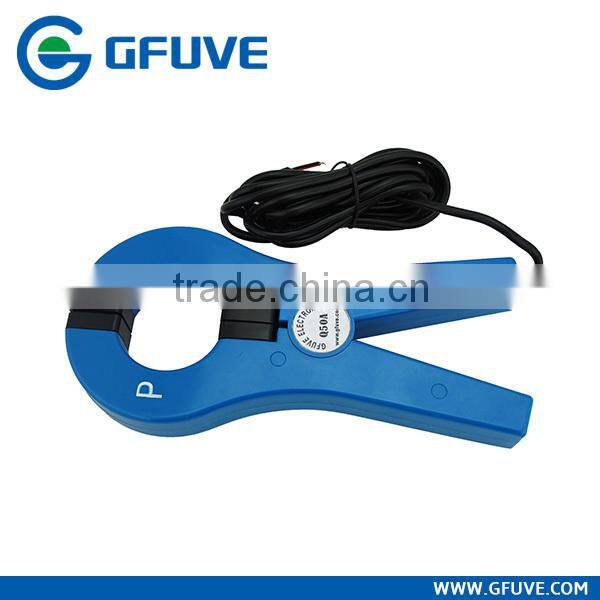

Photos
