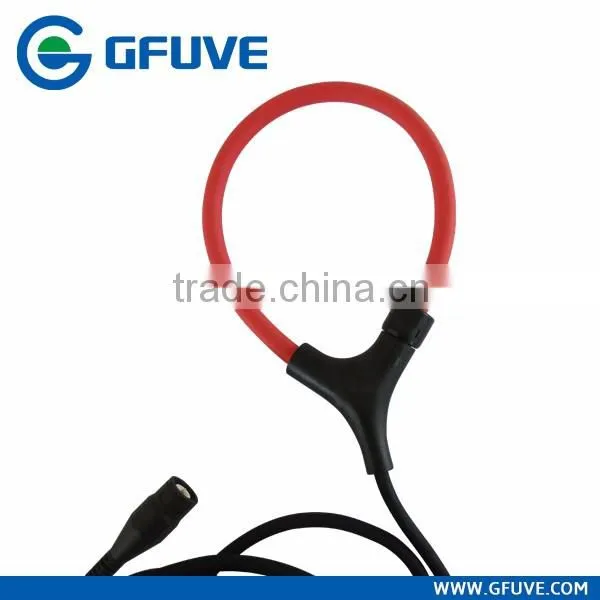

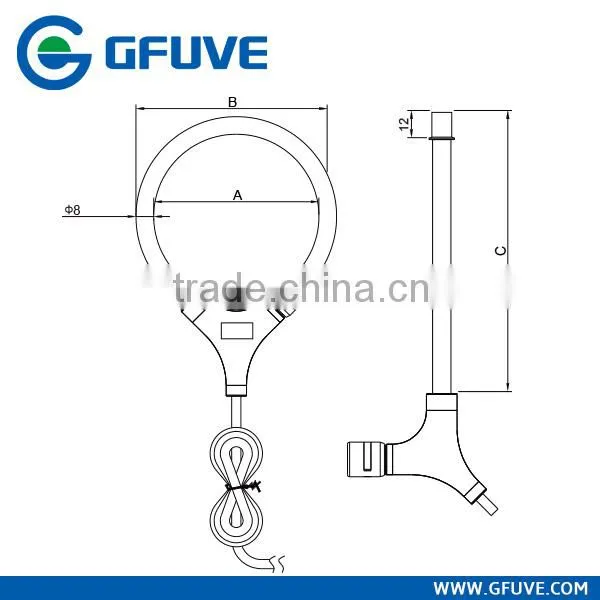

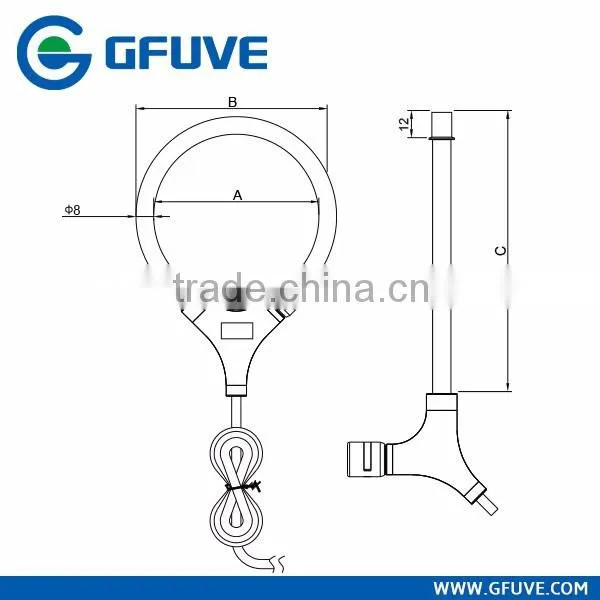

Electrical AC Flexible Rogowski Coil Current Sensor

          Model

Data

FQ-RCT01-55

FQ-RCT01-80

FQ-RCT01-105

FQ-RCTA01-55

FQ-RCTA01-80

FQ-RCTA01-105

Current Range

10A~10kA

10A~6000A

Frequency

25Hz~20kHz

45Hz~600Hz

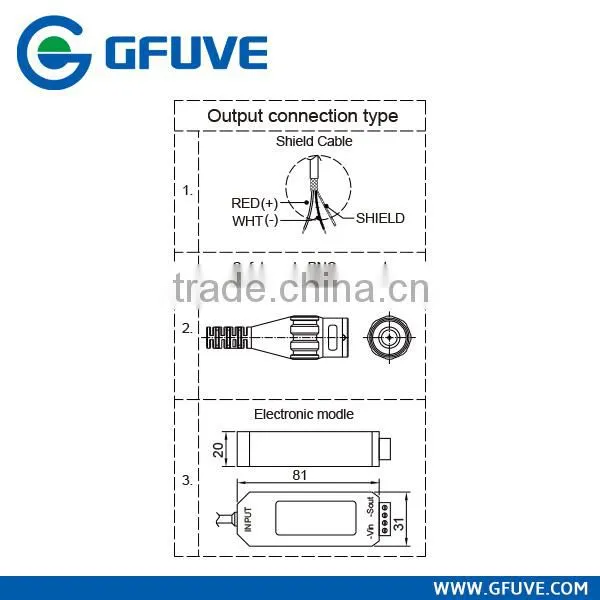

Output

Voltage

Rated current

500A

1000A

2000A

250A,500A

800A,1000A

1000A,1500A,2000A,2500A

1000A,2000A,2500A,3000A

50Hz

50mV AC

100mV AC

200mV AC

333mV

1mV/A

Max output

/

3.0V AC max

Accuracy

<1% @25°C (45-65Hz)

<1% @25°C (45-65Hz)

Phase error

<60’ @25°C (45-65Hz)

<60’ @25°C (45-65Hz)

Output sensitivity

±2% Max (No Calibration)

1%

±0.5% @25°C  (With Calibration)

Linearity error

±0.2% (10%-100%I1n)

±0.2%

Position Sensitivity

±2%

±2%

External Influence

±2% Max

±1.5% Max

Power Supply

/

10-30VDC,30mA Max.
