Solar Charge Controller With USB Output in Solar Controllers

solar charge controller with USB in Solar Controllers

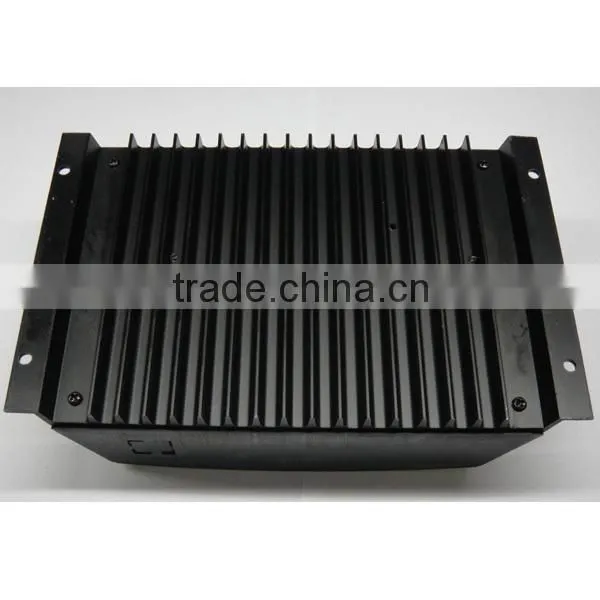

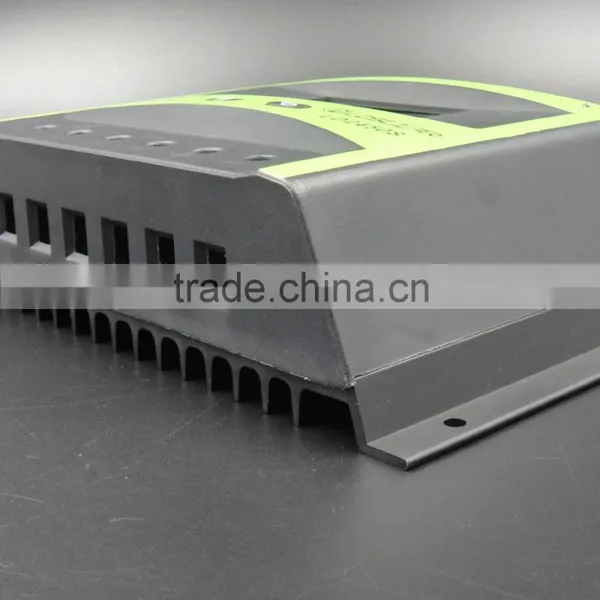

Better design for the heat comes out

Large user-friendly screen that is easy to read and understand.

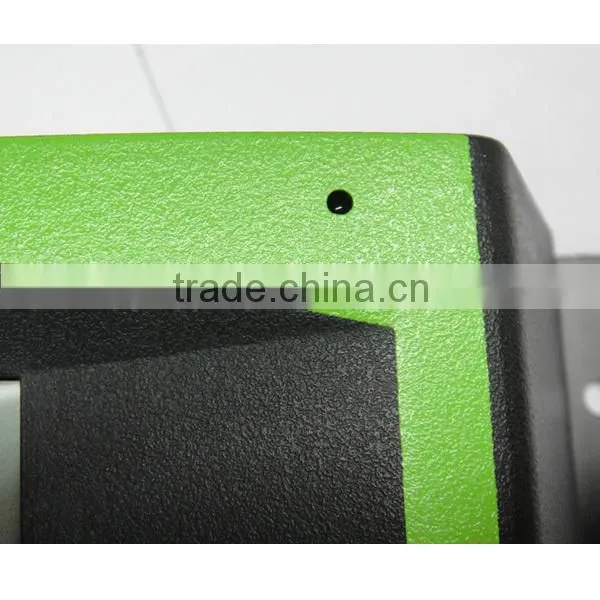

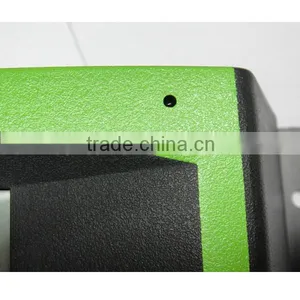

Curved screen print in a large area, magnanimous beautiful

Quality controlled assembly process to insure reliability

Clear label

Well engineered packaging to reduce shipping damage

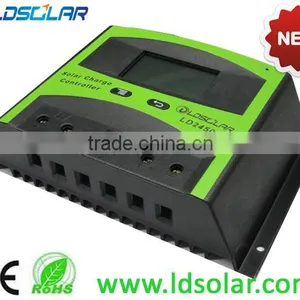

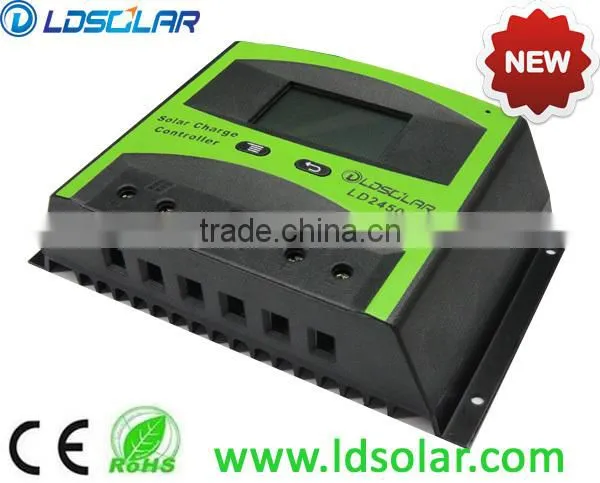

Smart 30A solar charge controller for solar PV system

smart 30A solar charge controller for solar system continues the huge success of one of the most used SHS (Solar Home System.) controllers. With a power range to 30A at automatically recognized 12V or 24V it fits to a system size of maximum 720 W.

The latest charging technologies, combined with a new state of charge determination which has been significantly improved once again. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display.

Product Features                                    Displays

Microcontroller digital accuracy                          Graphical LCD display

                                                       for operating parameters, fault message, self test

PWM control

Multistage charging technology                            Operation

Load disconnection depending on LVD               Simple menu-driven operation

Automatic load reconnection                          Programming by button

Temperature Compensation                          Manual load switch

Common positive grounding on one terminal

Integrated data logger(optional)                      Certificates

Night light and morning light function                   CE compliant according EN61000-6-1 and EN61000-3

Integrated self test                                   RoHS compliant

Automatic detection of voltage                         Manufactured according to ISO9001 and ISO14001

Electronic protection functions

Overcharge Protection

Deep discharge Protection                               Reverse polarity protection of module, load and battery

Automatic electronic fuse                                Short circuit protection of load and module

Open circuit protection with disconnected battery array       Reverse current protection at night

Overload protection                                     Battery Overvoltage shutdown

Technical data

Application

We could offer safe and high efficiency transport service for all customers.

..

.....

Special large connector which is good for solar system performance and easy installation processing

CE certificates for solar charge controller                        RoHS  certificates for solar charge controller
