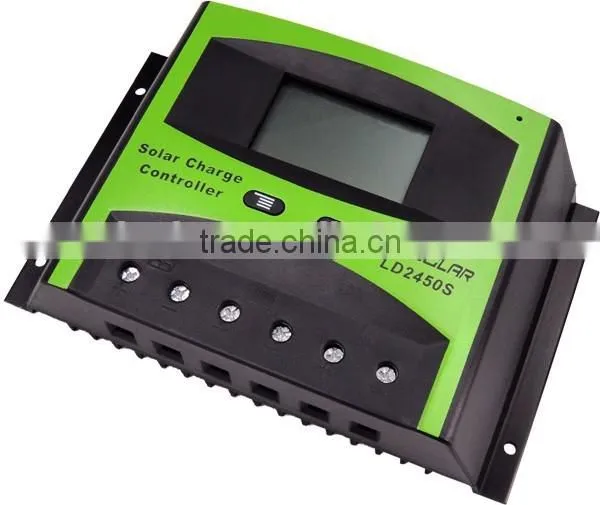

Ldsolar Pwm Solar Charge Controller 60A 12/24V for Solar Power System Off-grid
US$ 1 - 57
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
LDSOLAR
Model Number:
LD2460S
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN Shenzhen Guangzhou Shanghai.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Price Solar Charge Controller 30A With Lcd Screen High Efficiency LdsolarUS$ 1 - 28MOQ: 100 Pieces -
Automatic 12v/24v Solar Panel Voltage Regulator 30a 40a 50a 60aUS$ 1 - 28MOQ: 100 Pieces
-
Pwm Solar Charge Controller 30a for Solar Power SystemUS$ 28 - 30MOQ: 100 Pieces
-
Pwm Solar Charge Controller for Off-grid Solar SystemUS$ 18 - 20MOQ: 120 Pieces
-
Factory Price Pwm Solar Charge Controller 30A 12/24V With LCD Quality ChoiceUS$ 1 - 28MOQ: 120 Pieces
Place of Origin
Hubei, China
Brand Name
LDSOLAR
Model Number
LD2460S
Application
Charger Controller
Rated Voltage
Other, 12V 24 auto or 48V.
Maximum Current
60A
Model |
LD2450S |
LD4850S |
System Voltage |
12V/24V |
48v |
Max. Input Voltage of solar panel |
55V |
100V |
Self-consumption |
≤10mA |
≤12mA |
Max. charge current |
50A/60A |
|
Max. discharge current |
50A/60A |
|
LVD |
11.0V ADJ 9V….12V;×2/24V;×4/48V |
|
LVR |
12.6V ADJ 11V….13.5V;×2/24V;×4/48V |
|
Float Voltage |
13.8V ADJ 13V….15V;×2/24V;×4/48V |
|

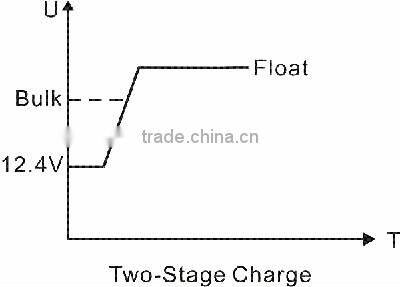

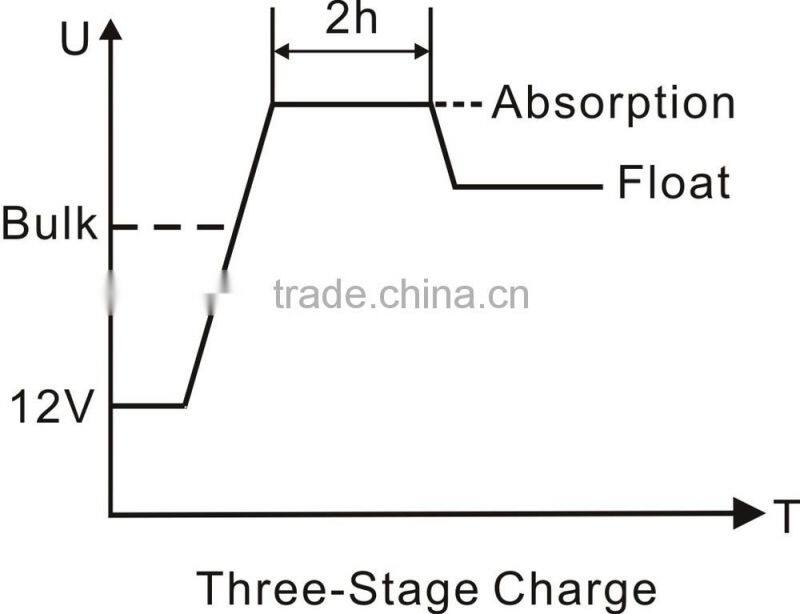

Boost charging |
14.4V ; ×2/24V;×4/48V Battery Voltage less than 12Vstart boost charging 2 hours |
|
Battery Over Voltage Protection |
16.5V ;×2/24V;×4/48V |
|
ReverseConnection Protection |
yes |
|
Load Over Current Protection |
Yes, each two minutes restart once |
|
Charge Type |
PWM |
|
Temperature Compensation |
-24 mV /℃ for 12V system;×2/24V;×4/48V |
|
Working Temperature |
-20℃---+55℃ |
|
Terminal Scale |
20~3 AWG 25mm2 |
|
Strip length |
16mm. |
|
Waterproof grade |
IP32 |
|
Size |
200.1mm×127mm×55.3mm. |
|
Netweight |
690g |
|
