Permalloy Test AC Current Probes
US$ 60 - 150
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
Q50A
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Clamp On Industrial Current SensorUS$ 70 - 120MOQ: 1 Piece -
High Precision Clamp On AC Current Sensor 100AUS$ 20 - 100MOQ: 1 Piece
-
CT Clamp on 100a Current SensorUS$ 50 - 100MOQ: 3 Pieces
-
Multifunction Digital Clamp Meter Calibrate TesterUS$ 3,000 - 6,000MOQ: 1 Set
-
Clamp Type Multifunction Resistence Meter CalibratorUS$ 5,000 - 6,000MOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
Q50A
Usage
Current
Phase
Single
Coil Structure
Toroidal
Coil Number
Autotransformer
Permalloy Test AC Current Probes
Product Description
The model Q50A current probe is designed for fast and easy measure the current in industrial and power environment, it has wide range of current measurement.
Parameters
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600 V |
| Output signal | 500mA,1A,5A AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20 °C to +55 °C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 101 x 219 x 26 |
| Weight (g) | 650 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |

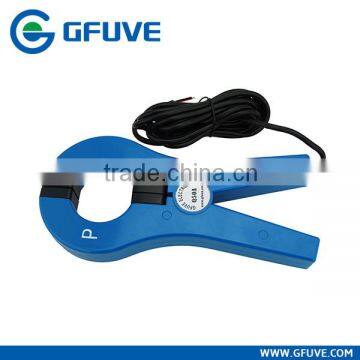

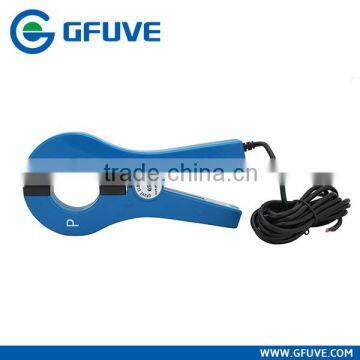

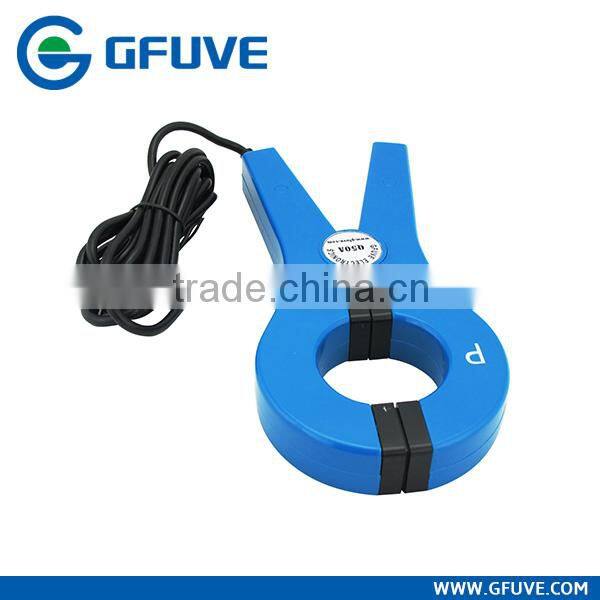

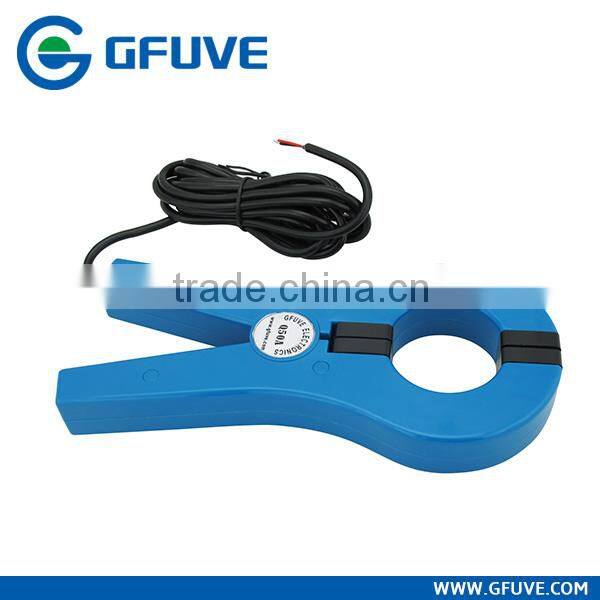

Photos
