Hot Sale 12V/24V 10a-60a Solar Charge Controller Pwm in Solar Controllers

Name: Hot Sale 12V/24V 10a-60a Solar Charge Controller Pwm in Solar Controllers
Brand: LDSOLAR
SKU: 109749631
Availability: InStock

US$ 57 - 68 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

LDSOLAR

Model Number:

LD2450S

Wuhan Welead S&T Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

wuhan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name LDSOLAR

Model Number LD2450S

Application Solar System Controller

Rated Voltage Other, 12V/24V auto

Maximum Current 50A

Hot sale 12V/24V 10A-60A Solar Charge Controller

Thank you for choosing LDSOLAR products.

Contact: Mr. Yang Xiong Skype: xnnhope

Mobile:0086-18646302665 QQ: 113226583

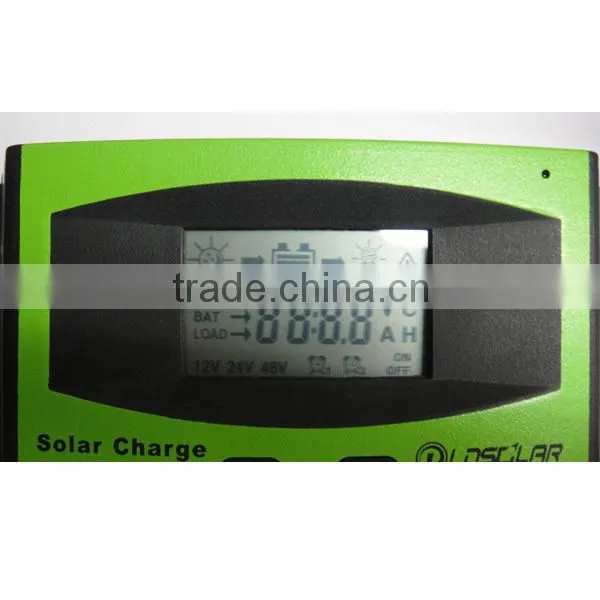

50A 12/24v solar charge controller with LCD screen PWM type

Model
System Voltage	12V/24V	48v
Max. Input Voltage of solar panel	55V	100V
Self-consumption	≤10mA	≤12mA
Max. charge current	50A/60A
Max. discharge current	50A/60A
LVD	11.0V ADJ 9V….12V;×2/24V;×4/48V
LVR	12.6V ADJ 11V….13.5V;×2/24V;×4/48V
Float Voltage	13.8V ADJ 13V….15V;×2/24V;×4/48V
Boost charging	14.4V ; ×2/24V;×4/48V Battery Voltage less than 12Vstart boost charging 2 hours
Battery Over Voltage Protection	16.5V ;×2/24V;×4/48V
ReverseConnection Protection	yes
Load Over Current Protection	Yes, each two minutes restart once
Charge Type	PWM
Temperature Compensation	-24 mV /℃ for 12V system;×2/24V;×4/48V
Working Temperature	-20℃---+55℃
Terminal Scale	20~3 AWG 25mm²
Strip length	16mm
Waterproof grade	IP32
Size	200.1mm×127mm×55.3mm
Netweight	690g
