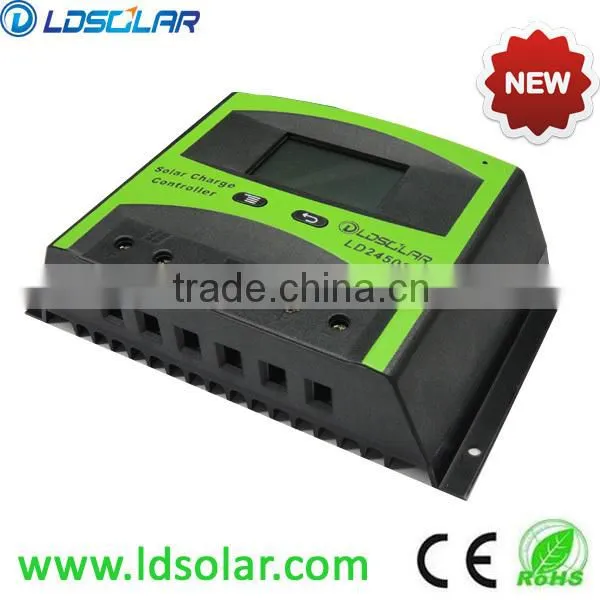

OEM LDSOLAR LD2460S 48V 60A Solar charge Controller with LCD Display
Promotion Now!
Thank you for choosing LDSOLAR products.
Contact: Mr. Yang Xiong Skype: xnnhope
Mobile:0086-18646302665 QQ: 113226583

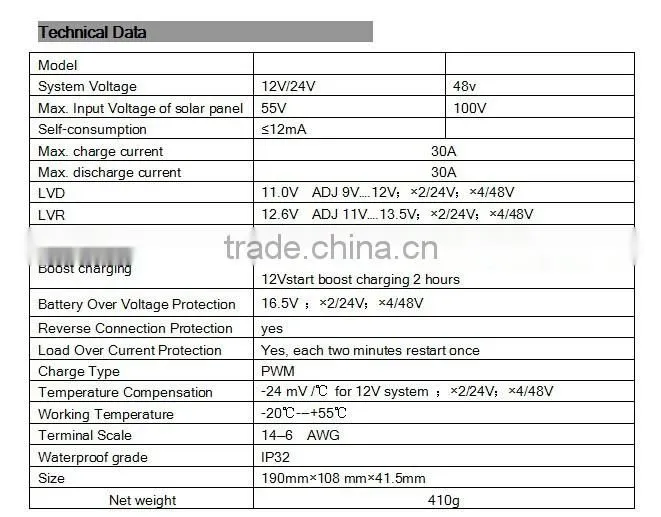

Model |
|
|
System Voltage |
12V/24V |
48v |
Max. Input Voltage of solar panel |
55V |
100V |
Self-consumption |
≤10mA |
≤12mA |
Max. charge current |
50A/60A |
|
Max. discharge current |
50A/60A |
|
LVD |
11.0V ADJ 9V….12V;×2/24V;×4/48V |
|
LVR |
12.6V ADJ 11V….13.5V;×2/24V;×4/48V |
|
Float Voltage |
13.8V ADJ 13V….15V;×2/24V;×4/48V |
|
Boost charging |
14.4V ; ×2/24V;×4/48V Battery Voltage less than 12Vstart boost charging 2 hours |
|
Battery Over Voltage Protection |
16.5V ;×2/24V;×4/48V |
|
ReverseConnection Protection |
yes |
|
Load Over Current Protection |
Yes, each two minutes restart once |
|
Charge Type |
PWM |
|
Temperature Compensation |
-24 mV /℃ for 12V system;×2/24V;×4/48V |
|
Working Temperature |
-20℃---+55℃ |
|
Terminal Scale |
20~3 AWG 25mm2 |
|
Strip length |
16mm |
|
Waterproof grade |
IP32 |
|
Size |
200.1mm×127mm×55.3mm |
|
Netweight |
690g |
|
We could offer safe and high efficiency transport for all customers
......

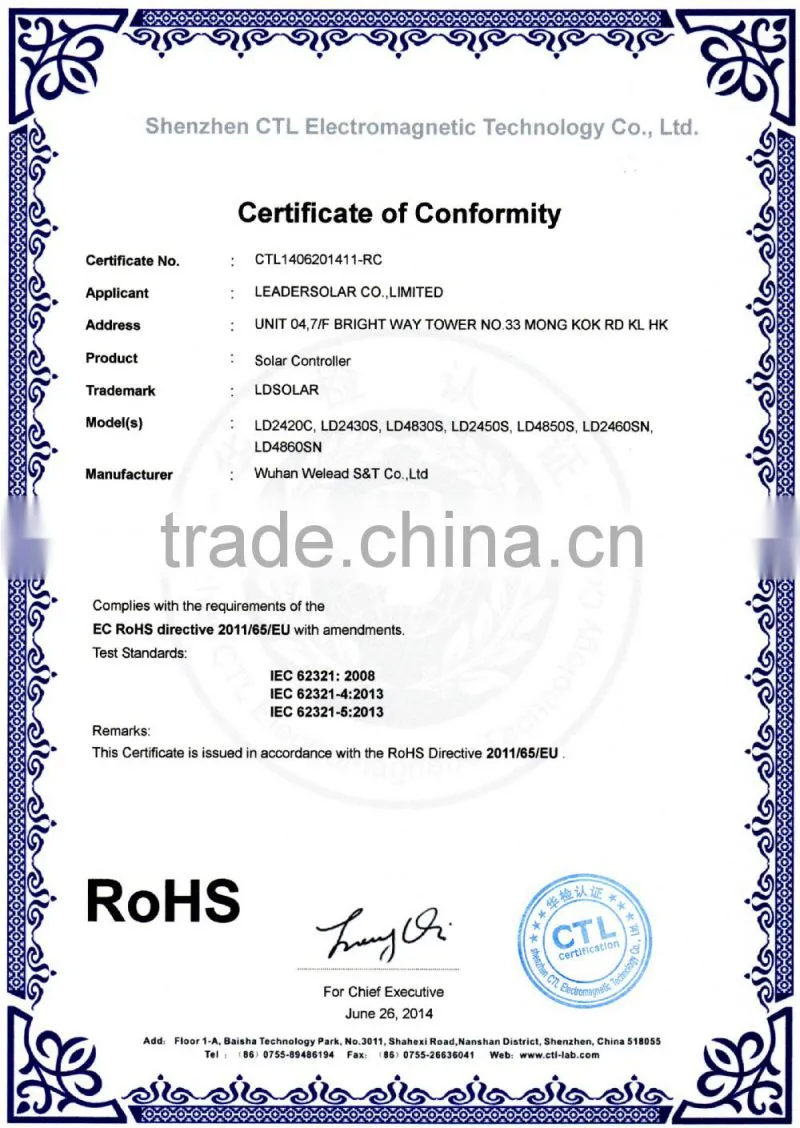

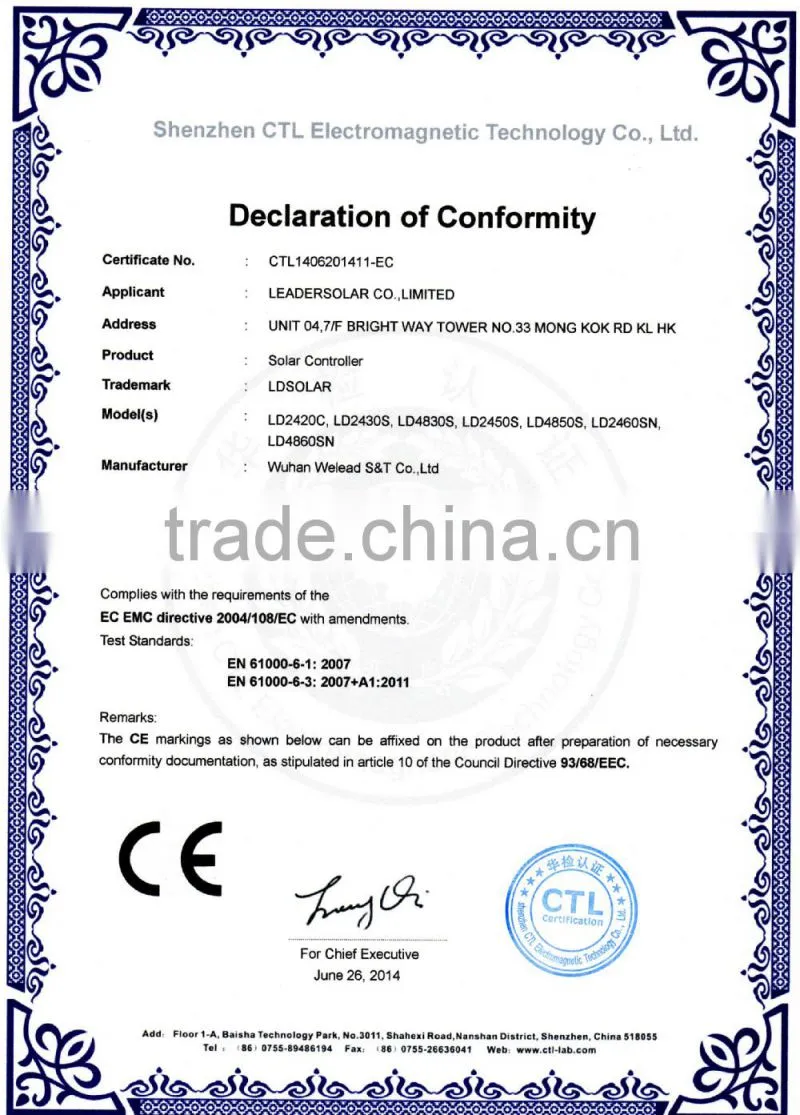

CE certificates for solar charge controller RoHS certificates for solar charge controller.
