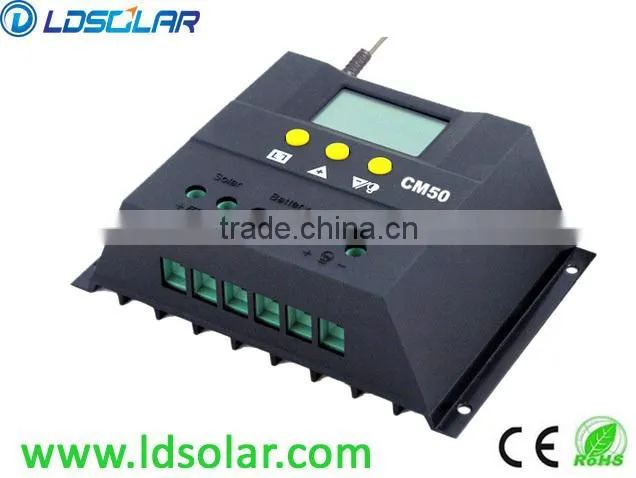

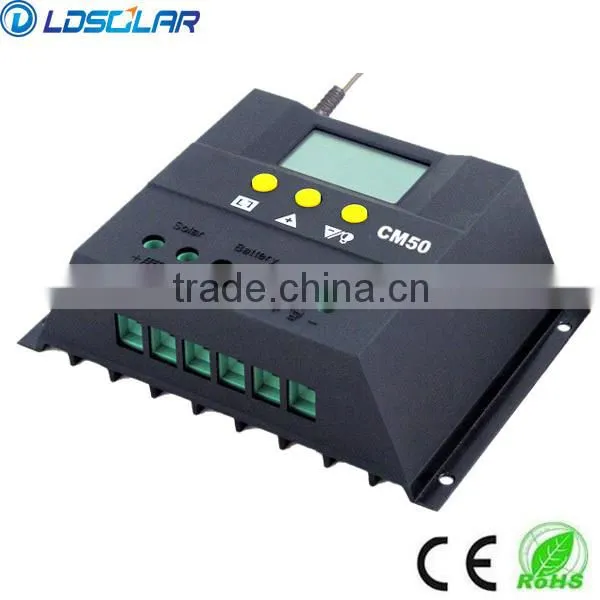

CM50 Intelligent Solar Charge Controller
CM series controller is a kind of intelligent, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface;
various control parameters can be flexibly set, fully meet your various application requirements.
CM series controller has following features:
Image of LCD graphic symbol;Simple button operation;Automatic Identification System Voltage level;Intelligent PWM charge mode;Automatic Temperature Compensation;Adjustable charge-discharge control parameters;Settable Operating mode of Load;Remote monitoring and control function (custom);Accumulated function of charge and discharge Ampere hours
Protection functions:
- Overload, Short Circuit Protection
- Battery Low Voltage Disconnection (LVD)
- Battery reverse-discharge protection
- Battery reverse connection protection
Technical Data
Model |
CM5024Z | CM5048 | ||
| Rated Current | 50A | 50A | ||
| Rated Voltage | 12V/24V | 48V | ||
| Solar Panle Voltage | ≤50V | ≤100V | ||
| Float Charging Voltage | 13.8V/27.6V | 55.2V | ||
| Low Voltage disconnecting | 10.7V/21.4V | 42.8V | ||
| Low Voltage Recovery | 12.5V/25.0V | 50.0V | ||
| No load loss | ≤30mA | ≤30mA | ||
| Loop Voltage Drop | ≤170mV | ≤170mV | ||
| Charging mode | PWM | |||
| Temperature compensation | -4mV/Cell/ | |||
| Note | Model suffix "Z" represent automatic identify system voltage level,"T"represent controller with remote monitoring. | |||
.
.
....
..
