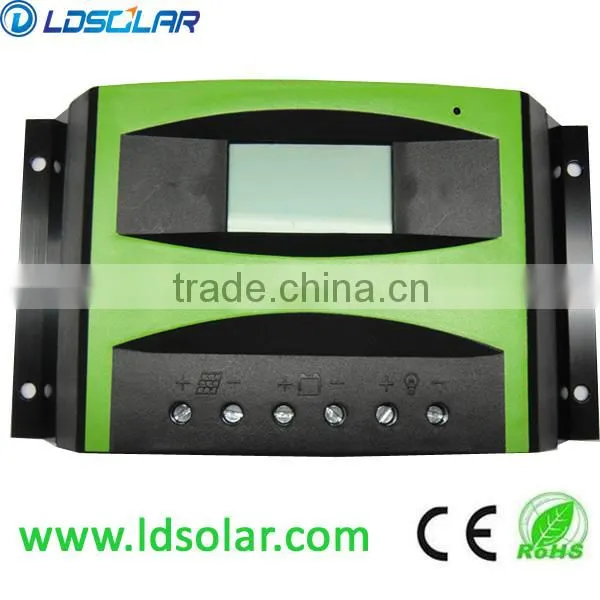

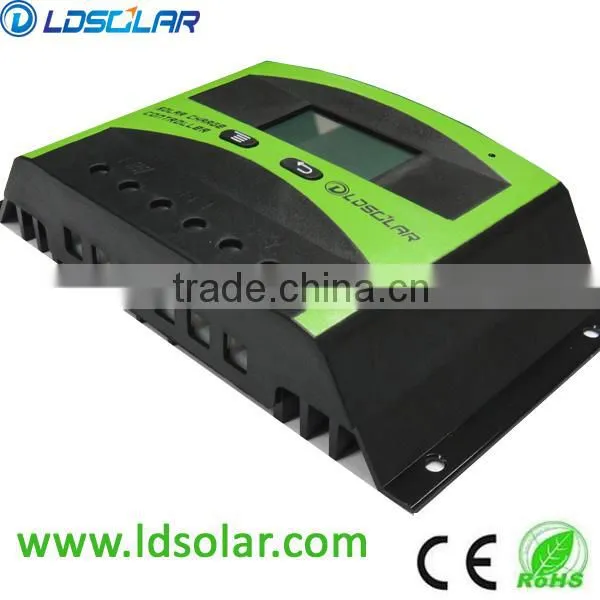

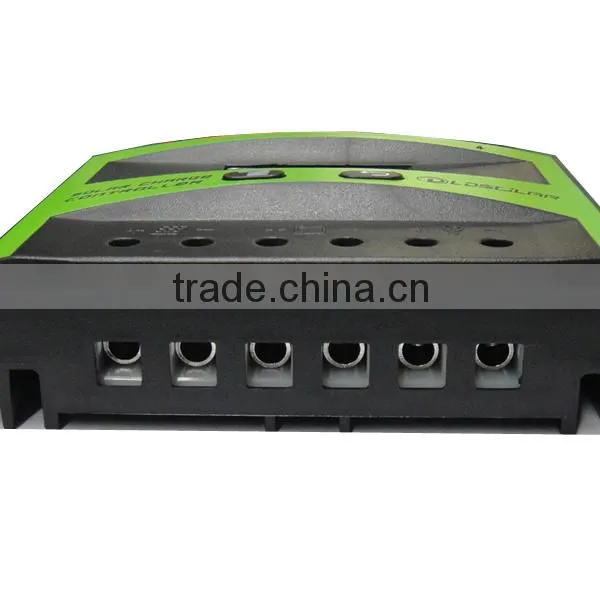

30A48V solar charge controller with LCD for solar power system 30A48V solar charge controller with LCD for solar power system .
30A48V solar charge controller with LCD for solar power system
30A48V solar charge controller with LCD for solar power system continues the huge success of one of the most used SHS (Solar Home System.) controllers. With a power range to 30A at automatically recognized 48V, it fits to a system size of maximum 1440 W.

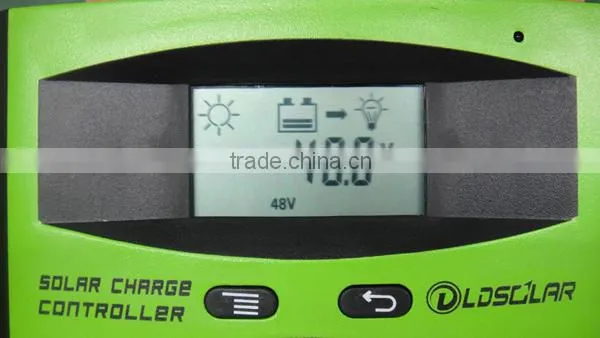

The latest charging technologies, combined with a new state of charge determination which has been significantly improved once again. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display.
Product Features Displays
Microcontroller digital accuracy Graphical LCD display
&nbqp; for operating parameters, fault message, self test
PWM control
Multistage charging technology Operation
Load disconnection depending on LVD Simple menu-driven operation
Automatic load reconnection Programming by button
Temperature Compensation Manual load switch
Common positive grounding on one terminal
Integrated data logger(optional) Certificates
Night light and morning light function CE compliant according EN61000-6-1 and EN61000-3
Integrated self test RoHS compliant
Automatic detection of voltage Manufactured according to ISO9001 and ISO14001
Electronic protection functions
Overcharge Protection
Deep discharge Protection Reverse polarity protection of module, load and battery
Automatic electronic fuse Short circuit protection of load and module
Open circuit protection with disconnected battery array Reverse current protection at night
Overload protection Battery Overvoltage shutdown
Model |
LD2430S |
LD4830S |
System Voltage |
12V/24V |
48v |
Max. Input Voltage of solar panel |
55V |
100V |
Self-consumption |
≤12mA |
|
Max. charge current |
30A |
|
Max. discharge current |
30A |
|
LVD |
11.0V ADJ 9V….12V;×2/24V;×4/48V |
|
LVR |
12.6V ADJ 11V….13.5V;×2/24V;×4/48V |
|
Float Voltage |
13.8V ADJ 13V….15V;×2/24V;×4/48V |
|
Boost charging |
14.4V ; ×2/24V;×4/48V Battery Voltage less than 12Vstart boost charging 2 hours |
|
Battery Over Voltage Protection |
16.5V ;×2/24V;×4/48V |
|
Reverse Connection Protection |
yes |
|
Load Over Current Protection |
Yes, each two minutes restart once |
|
Charge Type |
PWM |
|
Temperature Compensation |
-24 mV /C for 12V system;×2/24V;×4/48V |
|
Working Temperature |
-20C---+55C |
|
Terminal Scale |
14—6 AWG |
|
Waterproof grade |
IP32 |
|
Size |
190mm×108 mm×41.5mm |
|
Net weight |
410g |
|
. ...
... .
