hydraulic ram cylinders rear dump

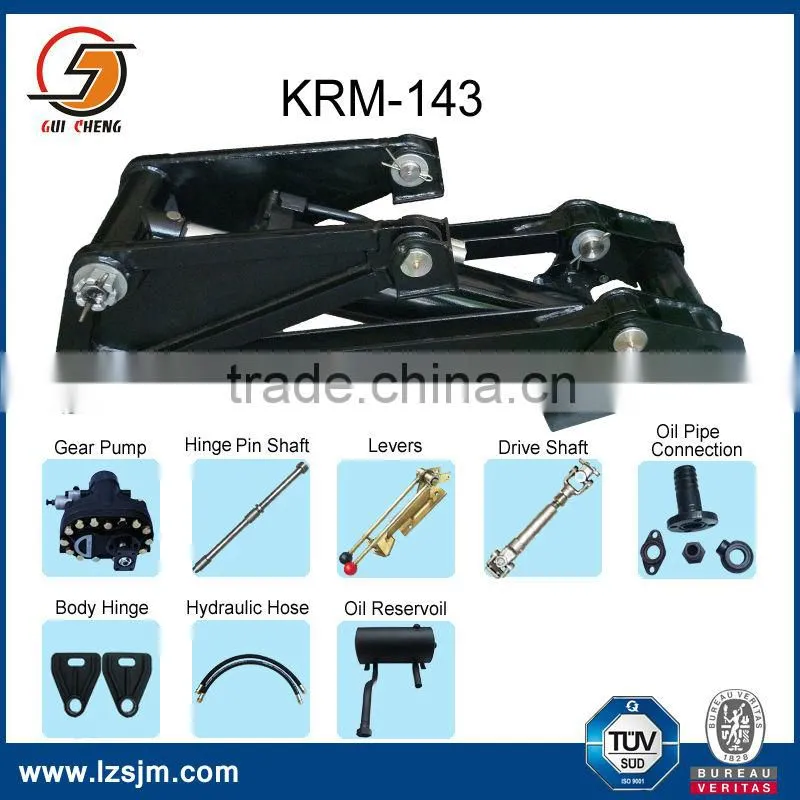

Hoist Mechanism, Dimensions and Weight (approx.)
Length(mm) |
Width(mm) |
Height(mm) |
Min. Mounting Distance(mm) |
Weight(kg) |
1193 |
410 |
341 |
794 |
179 |
Hoist Cylinder and Pump Combination Specification (approx.)
|
Hoist Cylinder KRM143 |
Working Pressure (MPa) (Kgf/cm2) |
6.4 |
Gear Pump KP-55A |
Standard Revolution (rpm) |
800 |
65 | |||||
Inner Diameter (mm) |
140 |
Discharge Volume(ml/rev.) |
55 |
||
Stroke (mm) |
504 |
Max. Testing Pressure (MPa) (Kgf/cm2) |
|
||
Min. Close distance (mm) |
727 |
20.6 |
|||
210 | |||||
Piston Rod Diameter (mm) |
60 |
Weight(kg) |
13 |
||
|
Max. pressure (MPa) (Kgf/cm2) |
14.7 |
||||
150 |
Hoist Mounting and Maximum Lifting Capacity
Recommended Truck G.W.(kg) |
Body Length(mm) |
Rear Overhang(mm) |
Distance between Load Center to Hinge(mm) |
Distance between trunion to Hinge(mm) |
Rated Lifting Capacity(kg) |
Designed Max. lifting Capacity(kg) (including load weight) |
6000-9000 |
3400 |
400 |
1300 |
1100 |
4000-5000 |
8500/60° |
Products feature:
1.With Rolling technology,the cylinder are straighter ,the surface are harder and its quality are more durable .
2.All piston rod have to go through comprehensive processing : Heating →Vehicle processing→ Grinding→Polishing→Plating hard chrome→Polishing , this comprehensive processing make the cylinder harder ,wearable and acid .
3.Using imported materials for seal kits .
4.The structure kits are made by high-strength manganese plate
5.Andvanced surface treatment :
a.Environmental automatically pipelined painting
b.Cleaning with automatic washing machine
c. Assembling in seal clean workshop
Quality Control :
1.Cylinder products have to pass strict quality control from purchasing materials, processing, assembling . (We passed the certification of ISO/ TS 16949:2009)
2.Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3.Welding with CO2 arc and automatically girth welding, which can ensure the welding quality of the seal parts
4. Full Cylinder inspection, all products need to100% pass the comprehensive test before deliver out from factory.
Reference data for different models of our KRM serial Hydraulic Cylinder:
(We can also produce custom made Hydraulic Cylinder according to your specific requirments)
| Model | Cylinder Inner Hole Diameter(mm) | Piston Rod Diameter(mm) | Stroke(mm) | Lifting Capacity(Ton) |
| KRM92 | 152 | 60 | 545 | 2-3 |
| KRM-143A | 140 | 60 | 530 | 4-5 |
| KRM-160S | 160 | 70 | 640 | 6-8 |
| KRM-160C | 160 | 70 | 794 | 6-8 |
| KRM-183B | 180 | 85 | 962 | 15-17 |
| KRM-201 | 200 | 100 | 948 | 16-18 |

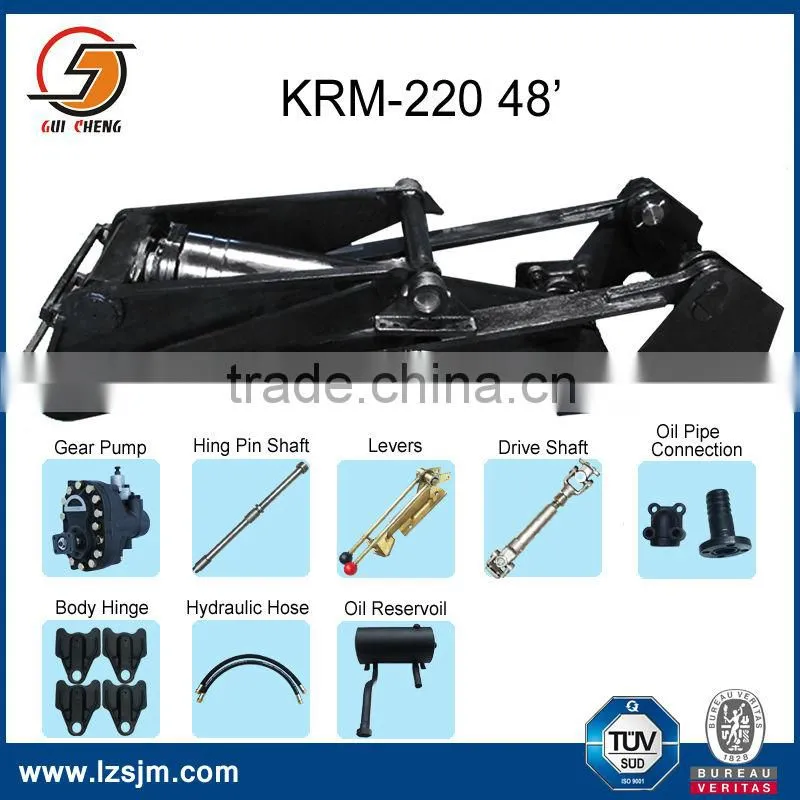

| KRM-220(48") | 220 | 100 | 1123 | 18-25 |
| KRM-220(68") | 220 | 100 | 1620 | 20-29 |
Welcome to contact us
