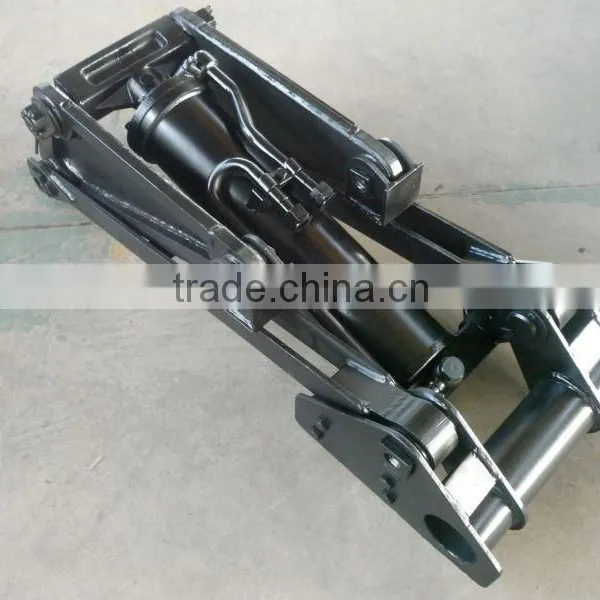

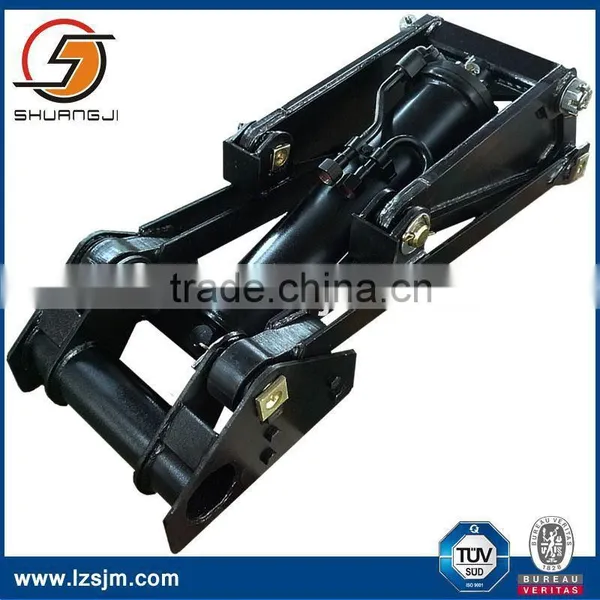

Indonesia style KRM143/167 auto chassis dump truck hydraulic hoist
Cylinder Specification
| Model | Piston Rod DIA(mm) | Cylinder Inner DIA(mm) | Stroke(mm) | Weight | Retracted Cylinder Length (eye to eye) | Working pressure |
| KRM 143A cylinder | 60 | 140 | 530 | 72kg | 727mm | 6.4Mpa |
Hoist Mechanism Dimensions
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1193 | 410 | 341 | 794 | 179 |
Hydraulic pump kp-55A
| Standard Revolution(rpm) | 800 |
| Discharge Volume(ml/rev.) | 55 |
| Max.Testing Pressure(Mpa) | 20.6 |
| Mass(kg) | 13 |
supra shoes ramming Mounting and Maximum Lifting Capacity
|
Recommended Truck G.V.W.(kg) |
Body Length L(mm) |
Rear Overhang R(mm) |
Distance between Load Center to Hinge D(mm) |
Distance between trunnion to Hinge T(mm) |
Rated Lifting Capacity(kg) |
Designed Max.lifting Capacity (kg) |
||||||
6,000 to 9,000 |
3,400 | 400 | 1,300 | 1,100 |
4,000 to 5,000 |
60º |
||||||
| 8500 | ||||||||||||
Reference Datas for supra shoes ramming:
(We also produce custom made Hydraulic Cylinder according to your specific requirments)
| Model | Cylinder Inner Hole Diameter(mm) | Piston Rod Diameter(mm) | Stroke(mm) | Lifting Capacity(Ton) |
| KRM-92 | 160 | 45 | 405 | 4-5.5 |
| KRM-143A | 140 | 60 | 530 | 6-9 |
| KRM-160S | 160 | 70 | 604 | 8-11 |
| KRM-160C | 160 | 70 | 794 | 6-8 |
| KRM-183 | 180 | 80 | 832 | 21-29 |
| KRM-201 | 200 | 100 | 878 | 25-32 |
| KRM-220(48") | 220 | 100 | 1123 | 18-25 |
| KRM-220(68") | 220 | 100 | 1620 | 20-29 |

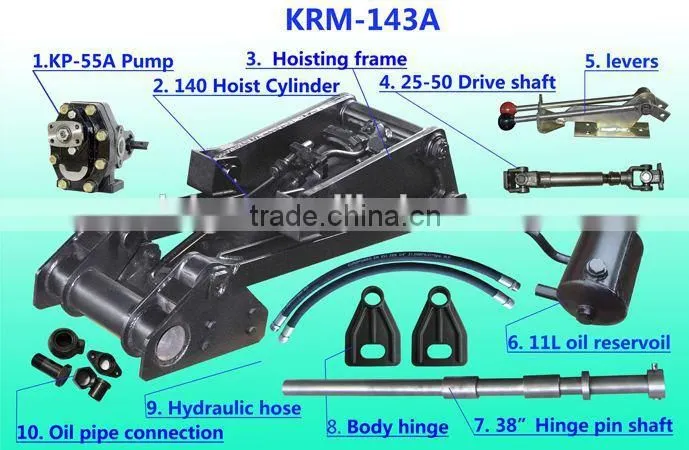

We can offer the completed KRM143
Advantages:
1. Using new rolling technology to ensure high precision for the inside hole of cylinder
2. The thickness of cylinder is up to 16mm,it can meet the strength requirement when the truck is overloaded
3. The diameter of piston rod reach 90mm,it will not bending under normal use
4. Using 3 seal-rings to seal piston rod ,it can be lifetime used
Quality Control:
1.supra shoes ramming have to pass strict quality control from purchasing materials, processing, assembling . (We passed the certification of ISO/ TS 16949:2009)
2.Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3.Welding with CO2 arc and automatically girth welding, which can ensure the welding
quality of the seal parts
4. Full Cylinder inspection, all products need to100% pass the comprehensive test before deliver out from factory.
Welcome to contact us for more information
