KRM220 48" Hoist Mechanism System With Buffer

KRM220 48" Hoist Mechanism System With Buffer thumbnail-1
KRM220 48" Hoist Mechanism System With Buffer thumbnail-2
KRM220 48" Hoist Mechanism System With Buffer thumbnail-3
KRM220 48" Hoist Mechanism System With Buffer photo-1
KRM220 48" Hoist Mechanism System With Buffer photo-2
KRM220 48" Hoist Mechanism System With Buffer photo-3
US$ 150 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Contact Supplier Request Quote Chat Now
Liuzhou Shuangji Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Fangcheng Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Piston Cylinder
Power Hydraulic
Body Material Stainless Steel
Maximum Stroke 1050mm
Shaft Diameter 100mm
Place of Origin Guangxi, China
Model Number KRM 220-48", KRM-220 48"
Brand Name Shuangji

 KRM 220-48" hoist mechanism system with buffer

KRM 220-48" Specification



 Mechanism,Dimensions and Mass(approx.)

Length(mm) Width(mm) Height(mm)

Min.ClosesdLength(mm)

 Weight(kg)
 2272 646  559  1506  670

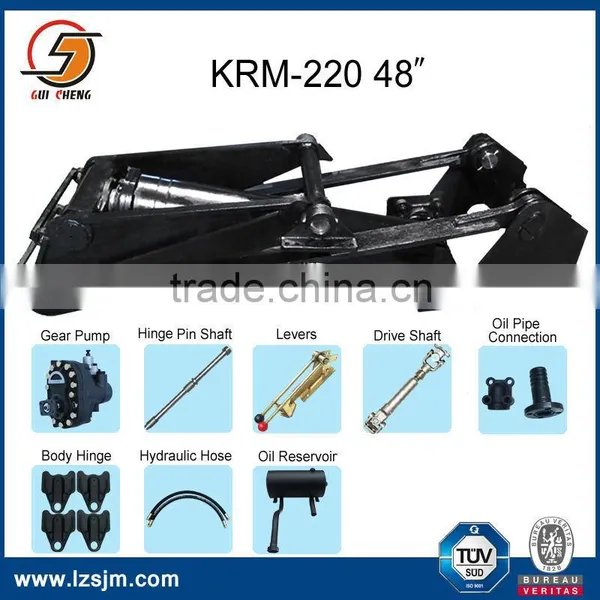

Hoist Cylinder and Pump Combination Specification(approx.)

Hoist Cylinder KRM 220-48" Working pressure  9.8Mpa Hydraulic Pump KP-1505A Standard Revolutions 800rpm
100kgf/cm²
Inner DIA 220mm Discharge Volume 148ml/rev
Stroke 1050mm Max. Testing Pressure 20.6MPa
Retracted Cylinder Length 1433mm 210kgf/cm²
Piston Rod DIA 100mm Weight 37kg
Max. Pressure 20.6MPa
210kgf/cm²

 Hoist Mounting and Maximum Lifting Capacity

Recommended Truck G.V.W.(kg) Body Length (mm) Rear Overhang ( mm) Distance between Load Centre and Hinge(mm) Distance between trunnion and Hinge(mm) Rated Lifting Capacity(kg) Designed Max.lifting Capacity(kg)

35000

 6000 1000 2000 3380 18000-25000 35000




KRM 220-48" Advantage

1.With Rolling technology,the spring return pneumatic cylinder are straighter ,the surface are harder and its quality are more durable .

2.All piston rod have to go through comprehensive processing : Heating →Vehicle processing→ Grinding→Polishing→Plating hard chrome→Polishing , this comprehensive processing  make the cylinder harder ,wearable and acid .

3.Using imported materials for seal kits .

4.The structure kits are made by high-strength manganese plate

5.Andvanced surface treatment :

                                a.Environmental automatically pipelined painting

                                b.Cleaning with automatic washing machine

                                c. Assembling in seal clean workshop





Other KRM products for reference.

(We can also produce custom made Hydraulic Cylinder according to your specific requirments)



  Cylinder Inner Hole Diameter(mm) Piston Rod Diameter(mm) Stroke(mm) Lifting Capacity(Ton)
KRM-92   160 45 405 4-5.5
KRM-143A 140 60 530 6-9
KRM-160S 160 70 604 8-11
KRM-160C 160 70 794 6-8
KRM-183 180 80 832 21-29
KRM-201 200 100 878 25-323
KRM-220(48") 220 100 1123 35

KRM-220

(68")

 220 100 1620

39
