Main data of hoist long stroke dump truck hoist
Hoist Mechanism, Dimensions and Weight (approx.)
Length(mm) |
Width(mm) |
Height(mm) |
Min.closing length(mm) |
Weight(kg) |
1722 |
525 |
430 |
1152 |
298 |
Hoist Cylinder and Pump Combination Specification (approx.)
|
Hoist Cylinder KRM160C |
Working Pressure(MPa) (Kgf/cm2) |
6.9 |
Gear Pump KP-75A/B
|
Standard Revolution (rpm) |
800 |
70 | |||||
Inner Diameter (mm) |
160 |
Discharge Volume(ml/rev.) |
72 |
||
Stroke (mm) |
755 |
Max. Testing Pressure(MPa) (Kgf/cm2) |
|
||
Min. mounting distance (mm) |
1075 |
20.6 |
|||
210 | |||||
Piston Rod diameter (mm) |
70 |
Weight(kg) |
22 |
||
|
Max. pressure (MPa) (Kgf/cm2) |
15.7 |
||||
160 |
Hoist Mounting and Maximum Lifting Capacity
Recommended Truck G.W.(kg) |
Body Length(mm) |
Rear Overhang Length(mm) |
Distance between Load Center and Hinge(mm) |
Distance between trunnion and Hinge(mm) |
Rated Lifting Capacity(kg) |
Designed Max. lifting Capacity(kg) (including load weight) |
11000-17000 |
4500 |
750 |
1500 |
2050 |
6000-8000 |
16000/52° |
Good choice for our hydraulic cylinder
1. Merge together with Europe security idea
Our whole set hydraulic cylinder system with multi-protection can protect the safety of worker &truck and cargo.
2. Specialized system configuration
Specialized system configuration that greatly improve work efficiency and reduce system weight.
3. Custom made is available
We can design different hydraulic system for truck, lifting platform, hydraulic door and so on
Reference Datas for KRM Series Hydraulic Cylinder:
(We also produce custom made Hydraulic Cylinder according to your specific requirments)
| Model | Cylinder Inner Hole Diameter(mm) | Piston Rod Diameter(mm) | Stroke(mm) | Lifting Capacity(Ton) |
| KRM-92 | 160 | 45 | 405 | 4-5.5 |
| KRM-143A | 140 | 60 | 530 | 6-9 |
| KRM-160S | 160 | 70 | 604 | 8-11 |

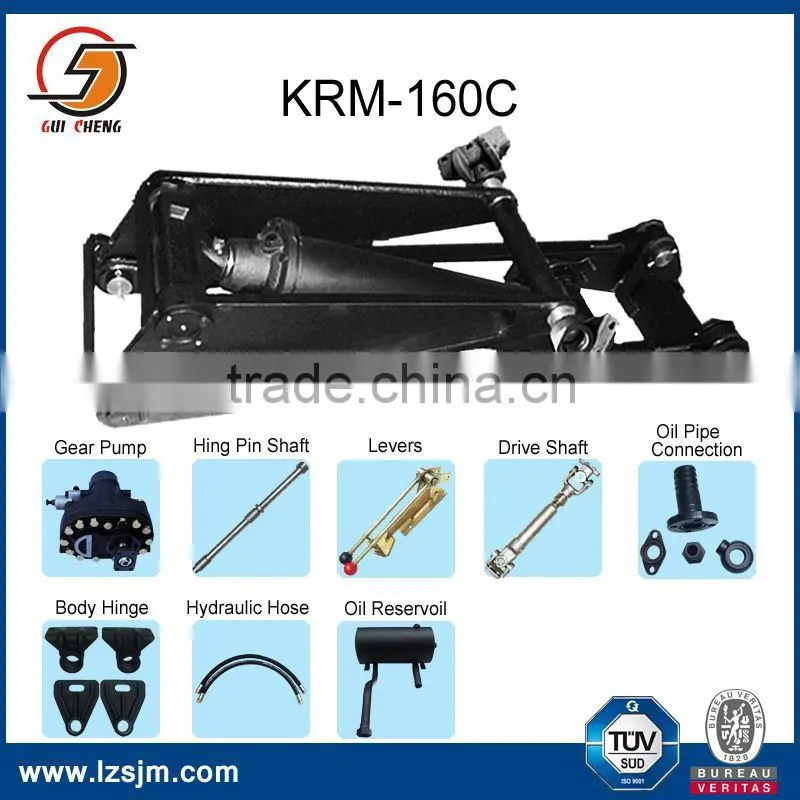

| KRM-160C | 160 | 70 | 794 | 6-8 |
| KRM-183 | 180 | 80 | 832 | 21-29 |
| KRM-201 | 200 | 100 | 878 | 25-32 |

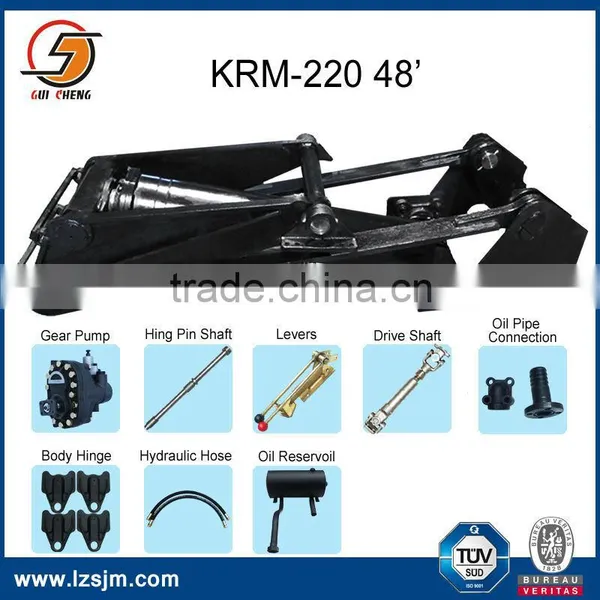

| KRM-220(48") | 220 | 100 | 1123 | 18-25 |
| KRM-220(68") | 220 | 100 | 1620 | 20-29 |
