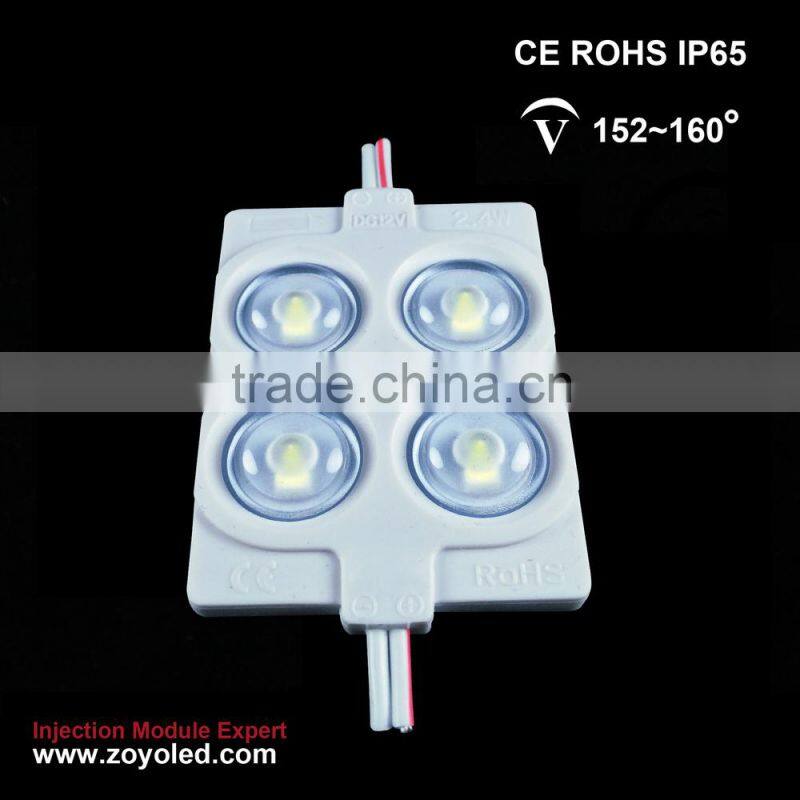

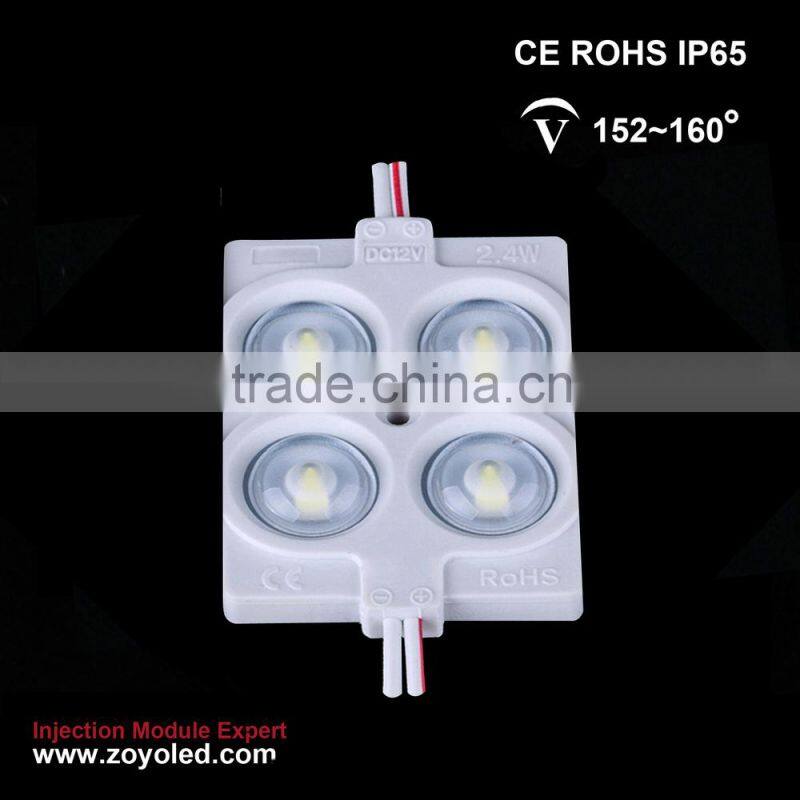

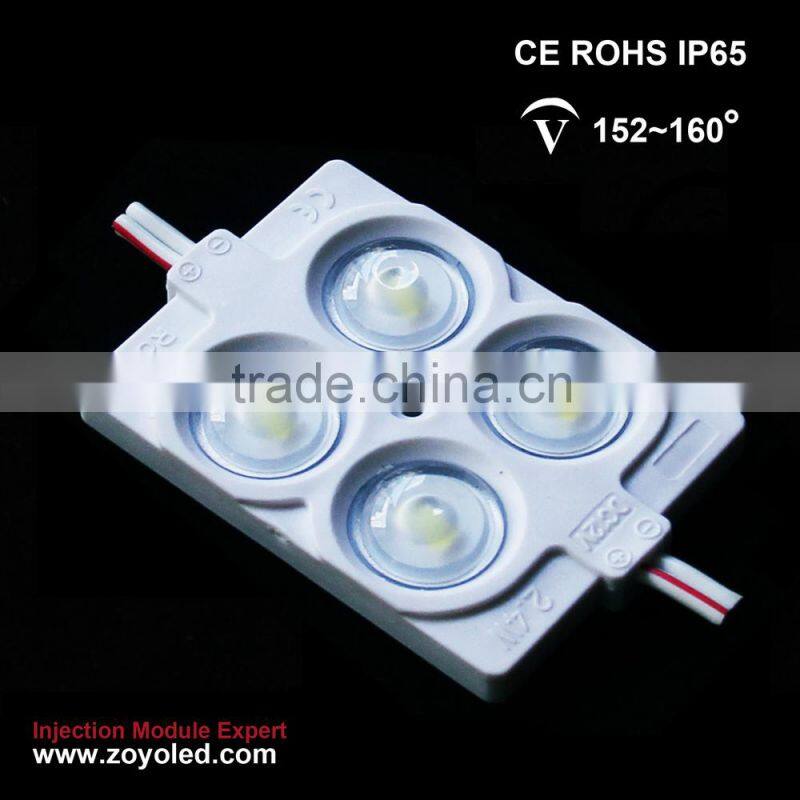

ce Rohs Module Led 12v High Power Led Lens Module

ce Rohs Module Led 12v High Power Led Lens Module thumbnail-1
ce Rohs Module Led 12v High Power Led Lens Module photo-1
US$ 0.65 - 0.73 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
MA484F
Chip Material:
InGaN
Emitting Color:
Other, warm white, pure white, cool white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number MA484F
Chip Material InGaN
Emitting Color Other, warm white, pure white, cool white
Luminous Flux(lm) 185lm
Optical Attenuation(%) 1%
Power Other, 2.4W
Power Dissipation 2.4W
Color Rendering Index(Ra) 80
Color Temperature 3000K-15000K
Operating Temperature(℃) -20, 50
Storage Temperature(℃) -30, 60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE



ce rohs module led 12v high power led lens module

Product Name

2.4W 4-LED SMD2835 led injection module with lens 160 degree beam angle back light source-Tiger series





Product Advantage

1. Epistar LED, 3-Year Warranty
2. Constant current driving mode
3. Wide Beam Angle 160 degree
4. PMMA optic lens
5. High lumen & high power
6. Patented unique design
7. OEM/ODM available
8. CE & RoHS certified





Product Parameter

  Parameters                          (Room temperature =25℃)

Items

Parameter

Unit

LED type

2835



LED Quantity

4

PCS

Concatenation

20

PCS

Dimension

48*36*7.2

mm

Modules’ Centre Dis.

190

mm

Power

2.4±10%

W

Input V.

DC12V

V

Input C.

0.2

A

Drive Mode

Constant Current



Surface Temp.

< 40

℃

Working Temp.

-20 ~ +45

℃

Storage Temp.

-30 ~ +60

℃

Protect Level

IP65

-

  Optical and Electrical Parameters               (Room temperature =25℃)

Test Item

 Test Condition

Symbol

Parameter

Unit

Min.

Typical

Max.

Color Temperature

DC12V

CCT

12000

15000

18000

K

Ra

DC12V

CRI

70

80

85

--

Luminous Flux

DC12V

Φ

158

175

192

lm

Light Efficiency

DC12V

LPW

66

73

80

lm/W

Visual Angle

DC12V

Wd

147

152

157-

Deg

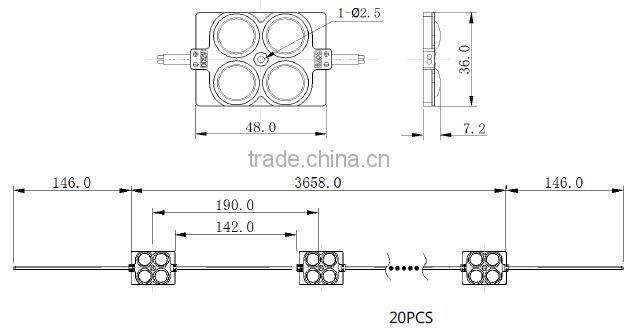

Product Sketch

ce rohs module led 12v high power led lens module





Product Installation

ce rohs module led 12v high power led lens module





Light Attenuation Graph

ce rohs module led 12v high power led lens module





Light Distribution Curve:



 ce rohs module led 12v high power led lens module





Product Package

ce rohs module led 12v high power led lens module

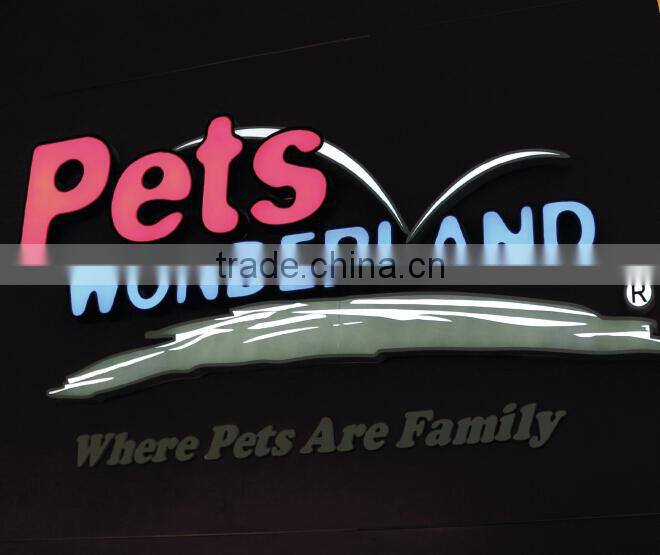

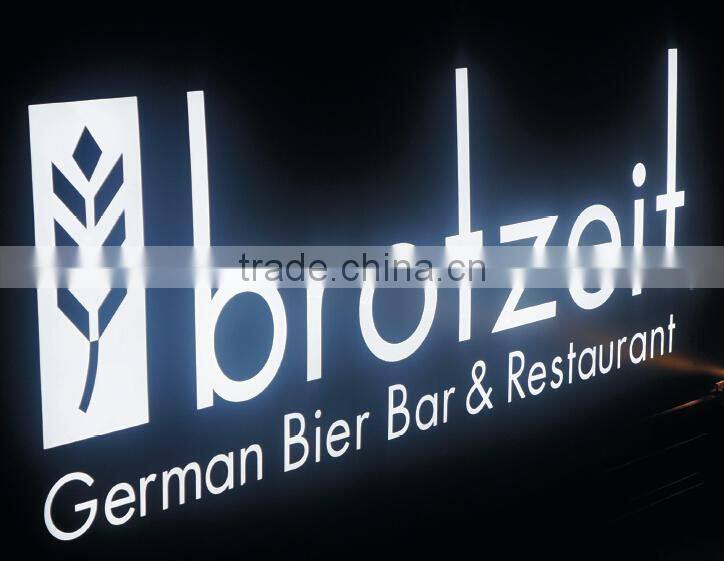

 Product Application

Light boxes, Logo lighting, Advertising Signs, Back light source, Channel letters, etc.

ce rohs module led 12v high power led lens module



ce rohs module led 12v high power led lens module



ce rohs module led 12v high power led lens module

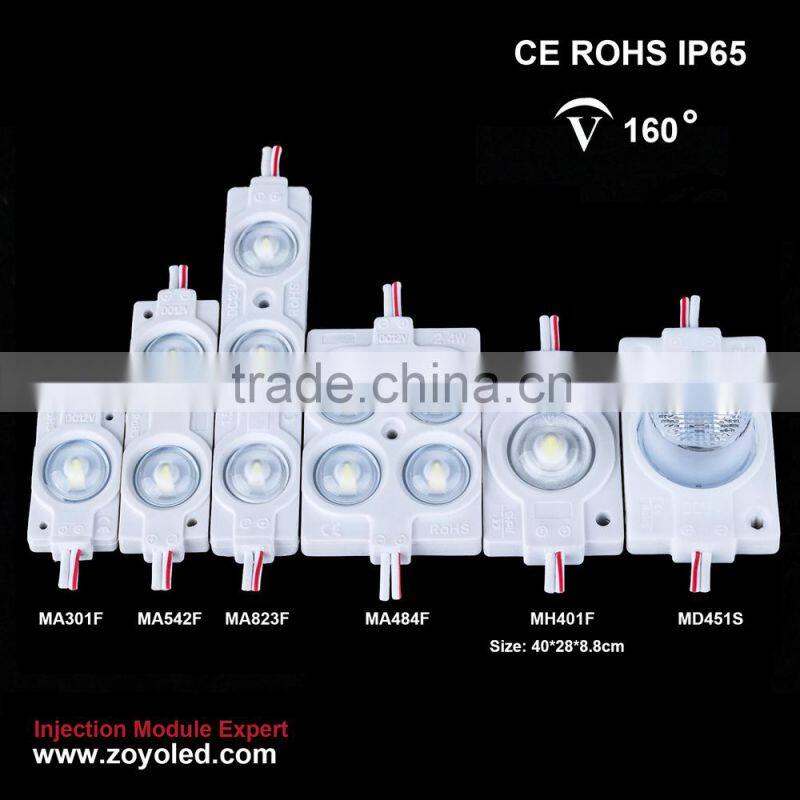

Product Showcase

ce rohs module led 12v high power led lens module



ce rohs module led 12v high power led lens module


ce rohs module led 12v high power led lens module
