led lens module with Al substrate dc12v constant current
- 2 Piece / Pieces per Month
- Shenzhen/Hongkong
- T/T L/C D/P D/A Credit Card PayPal
- ABS injection led advertising module with lens 4 LEDs
- modulos led lighting for light box lens led module high power
- 4pcs PMMA optic lens led module injection molding
- abs/pvc injection led backlight module for illumination
- epistar chip led module 3 year warranty constant current lens module
- 1led/2led/3led/4led lens module led for advertising sign
Product Details
Model Number: | MA484F | Chip Material: | InGaN | Emitting Color: | Other, warm white, pure white, cool white |
Luminous Flux(lm): | 185lm | Optical Attenuation(%): | 1% | Power: | Other, 2.4W |
Power Dissipation: | 2.4W | Color Rendering Index(Ra): | 80 | Color Temperature: | 3000K-15000K |
Operating Temperature(℃): | -20, 50 | Storage Temperature(℃): | -30, 60 | Place of Origin: | Guangdong, China |
Brand Name: | ZOYO | Certification: | CE |
Product Description
Product Name

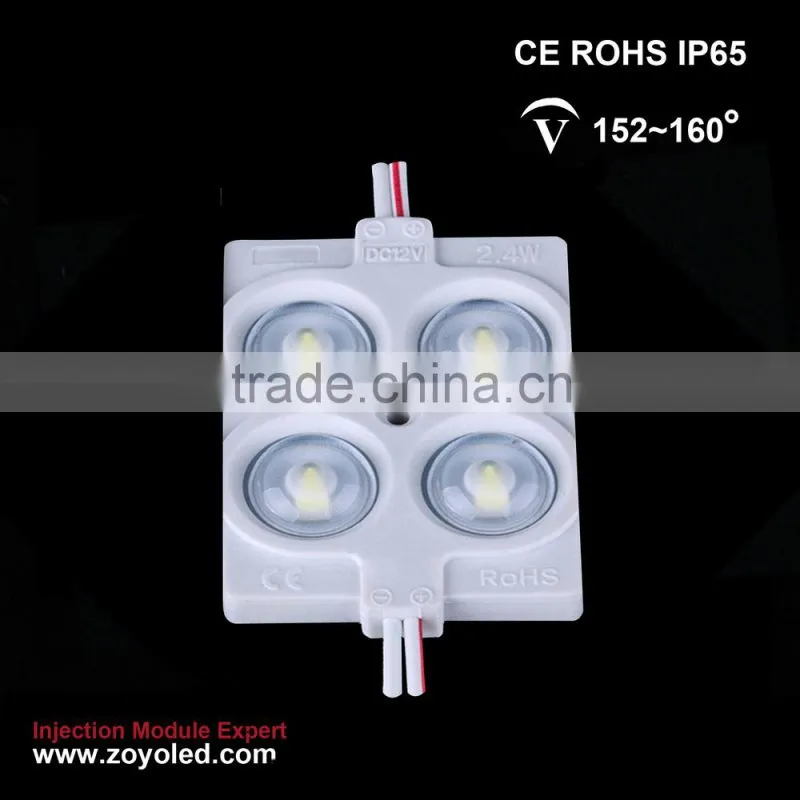

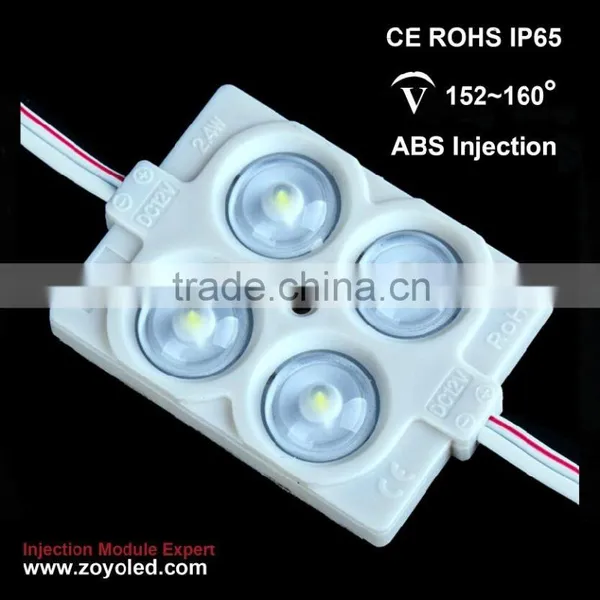

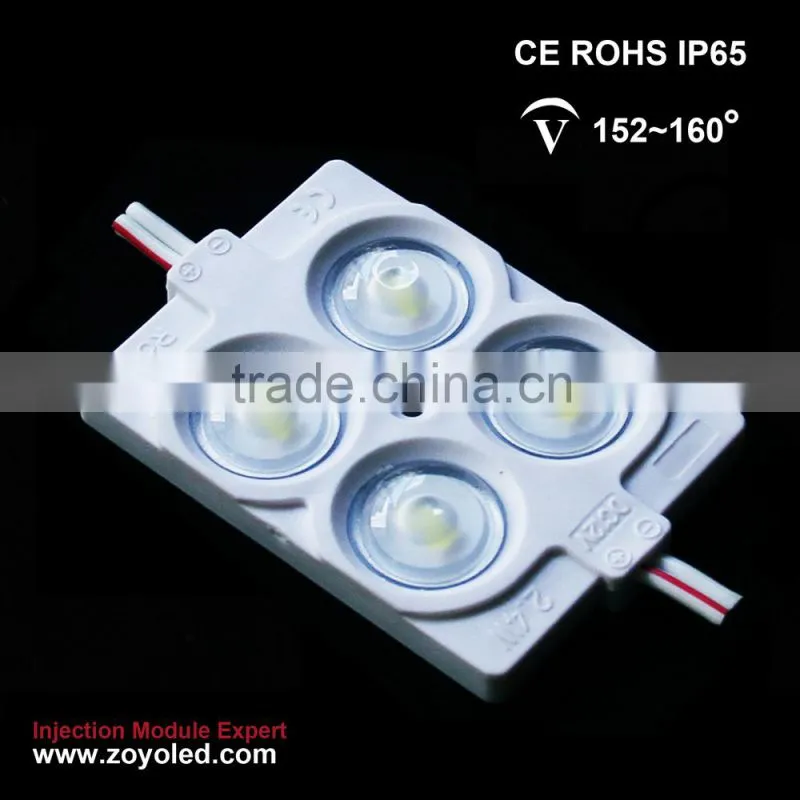

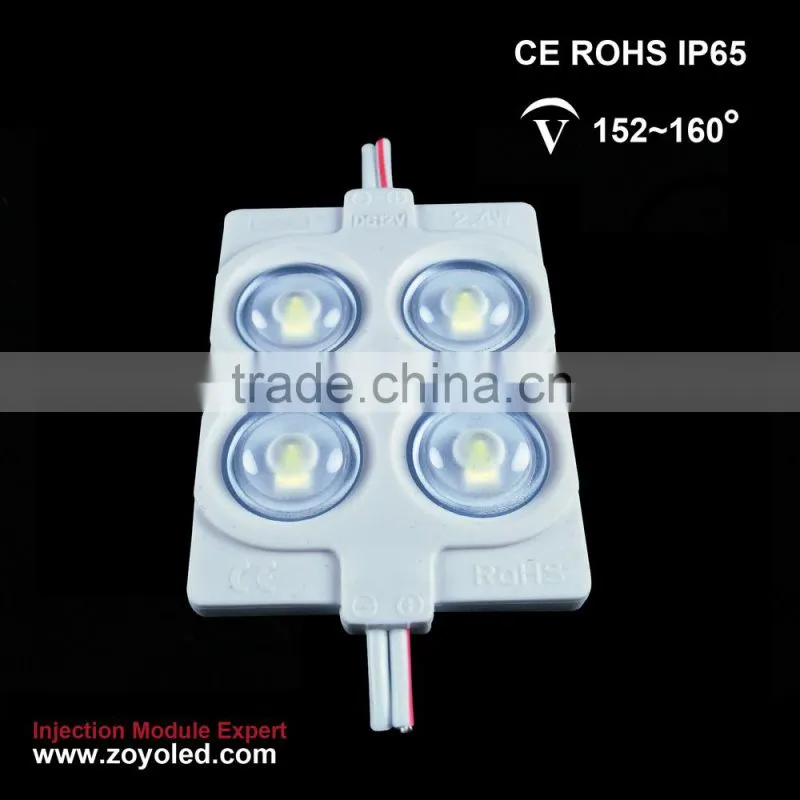

2.4W 4-LED SMD2835 led injection module with lens 160 degree beam angle back light source-Tiger series
Product Advantage
1. Epistar LED, 3-Year Warranty
2. Constant current driving mode
3. Wide Beam Angle 160 degree
4. PMMA optic lens
5. High lumen & high power
6. Patented unique design
7. OEM/ODM available
8. CE & RoHS certified
Product Parameter
Parameters (Room temperature =25℃) | |||||||
Items | Parameter | Unit | |||||
LED type | 2835 |
| |||||
LED Quantity | 4 | PCS | |||||
Concatenation | 20 | PCS | |||||
Dimension | 48*36*7.2 | mm | |||||
Modules’ Centre Dis. | 190 | mm | |||||
Power | 2.4±10% | W | |||||
Input V. | DC12V | V | |||||
Input C. | 0.2 | A | |||||
Drive Mode | Constant Current |
| |||||
Surface Temp. | < 40 | ℃ | |||||
Working Temp. | -20 ~ +45 | ℃ | |||||
Storage Temp. | -30 ~ +60 | ℃ | |||||
Protect Level | IP65 | - | |||||
Optical and Electrical Parameters (Room temperature =25℃) | |||||||
Test Item | Test Condition | Symbol | Parameter | Unit | |||
Min. | Typical | Max. | |||||
Color Temperature | DC12V | CCT | 12000 | 15000 | 18000 | K | |
Ra | DC12V | CRI | 70 | 80 | 85 | -- | |
Luminous Flux | DC12V | Φ | 158 | 175 | 192 | lm | |
Light Efficiency | DC12V | LPW | 66 | 73 | 80 | lm/W | |
Visual Angle | DC12V | Wd | 147 | 152 | 157- | Deg |

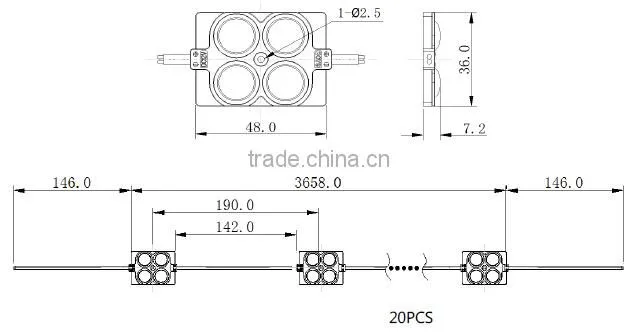

Product Sketch
Product Installation
Light Attenuation Graph
Light Distribution Curve:
Product Package

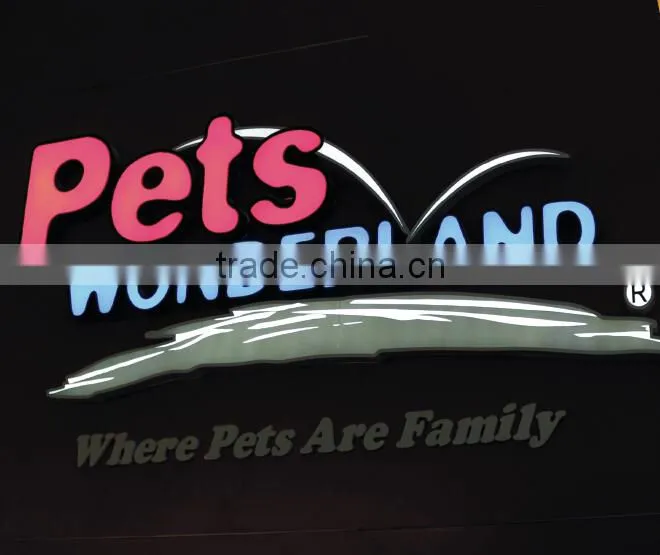

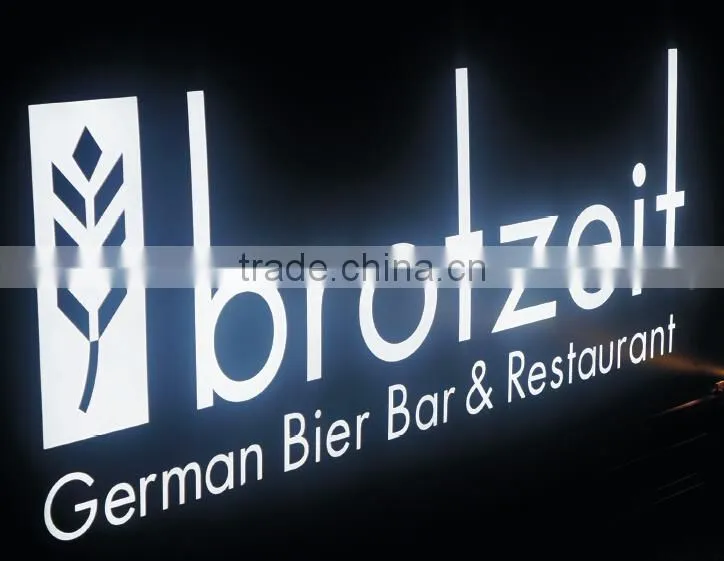

Product Application
Light boxes, Logo lighting, Advertising Signs, Back light source, Channel letters, etc.

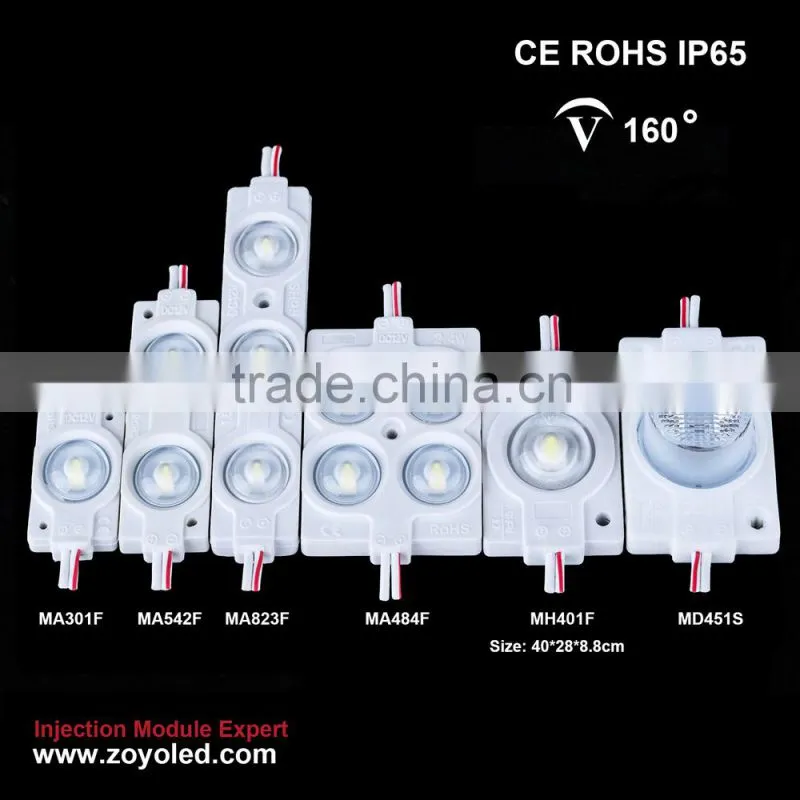

Product Showcase
Why choose ZOYO LED?
1> Factory direct pricing
2> Factory customer support and service
3> In-house design and development
4> Experienced engineering
5> Quality assurance
6> Cost control due to vertical integration
7> In-house control of production
8> On time delivery control
Our Service
1. All your inquires will be replied within 12 hours
2. Well-trained and passional sales consultant who can speak fluent English
3. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers with strong ability to do ODM projects.
More information, please feel free to contact us or send e-mail to info4(at). FREE samples are waiting for you. ^_^
Thanks and Best regards,
Jacey Wu
Sales Manager
E-mail: info4(at)
Mobile/Whatsapp/Wechat: +86-15919423655
