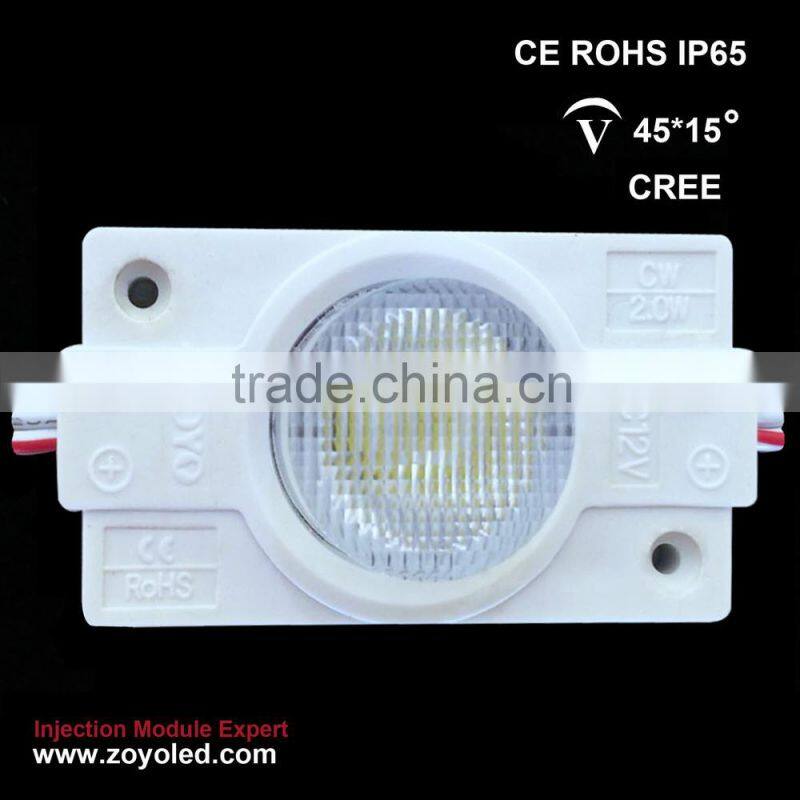

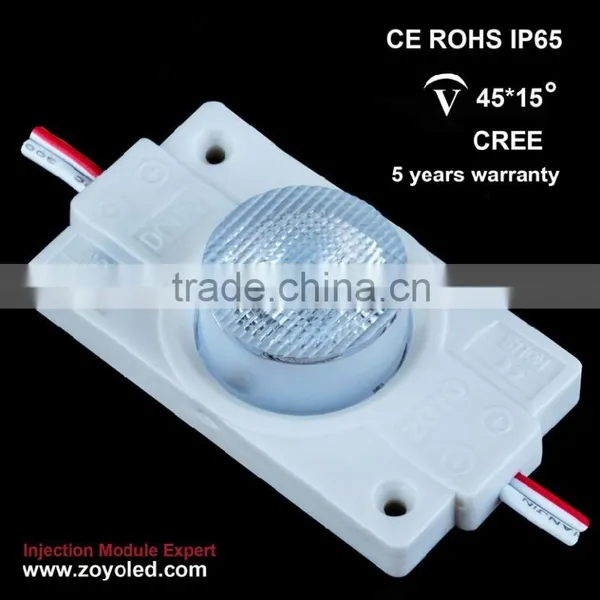

45*15 Degree Wide Beam Angle Led Module Edge Emiting Led Module Power Lens

45*15 Degree Wide Beam Angle Led Module Edge Emiting Led Module Power Lens thumbnail-1
45*15 Degree Wide Beam Angle Led Module Edge Emiting Led Module Power Lens photo-1
US$ 1.25 - 1.55 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
ML521S
Chip Material:
InGaN
Emitting Color:
Other, warm white, pure white, cool white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number ML521S
Chip Material InGaN
Emitting Color Other, warm white, pure white, cool white
Luminous Flux(lm) 185lm
Optical Attenuation(%) 1%
Power Other, 2W
Power Dissipation 2W
Color Rendering Index(Ra) 80
Color Temperature 3000K-6000K
Operating Temperature(℃) -20, 45
Storage Temperature(℃) -30, 60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

45*15 degree wide beam angle led module edge emiting led module power lens

Product Name

Side Emitting 1pcs*CREE XBD LED DC12V Constant Current IP65 LED Injection

Module 2W with PMMA optic lens-Eagle series





Product Advantage

1. Use high brightness high power CREE LED as light source

2. Al substrate for LED components with well heat transfer
3. 45*15 degree wide Beam Angle
4. One-time Injection molding with own patent
5. Best sealed, waterproof IP65; 5-year Warranty
6. CE RoHS certified





Product Parameter

 Parameters                          (Room temperature =25℃)

Items

Parameter

Unit

LED type

CREE XBD



LED Qtty

1

PCS

Concatenation

20

PCS

Dimension

52*30*15

mm

Power

2.0±10%

W

Input V.

DC12

V

Input C.

0.167

A

Surface Temp.

< 40

℃

Working Temp.

-20 ~ +45

℃

Storage Temp.

-30 ~ +60

℃

Protect Level

IP65

-

 Optical and Electrical Parameters               (Room temperature =25℃)

Test Items

Testing Condition

Symbol

       Parameters

Unit







Min

Typical

Max



Color Temperature

DC12V

CCT



6000



K

Ra

DC12V

CRI



80



--

Luminous Flux

DC12V

Φ

-

175

-

lm

Light Efficiency

DC12V

LPW

-

88

-

lm/W

Visual Angle

DC12V

Wd

--

45*15/ 30*10

--

Deg

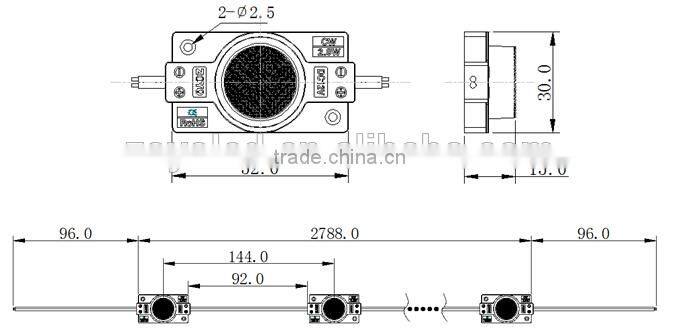

Product Sketch

45*15 degree wide beam angle led module edge emiting led module power lens

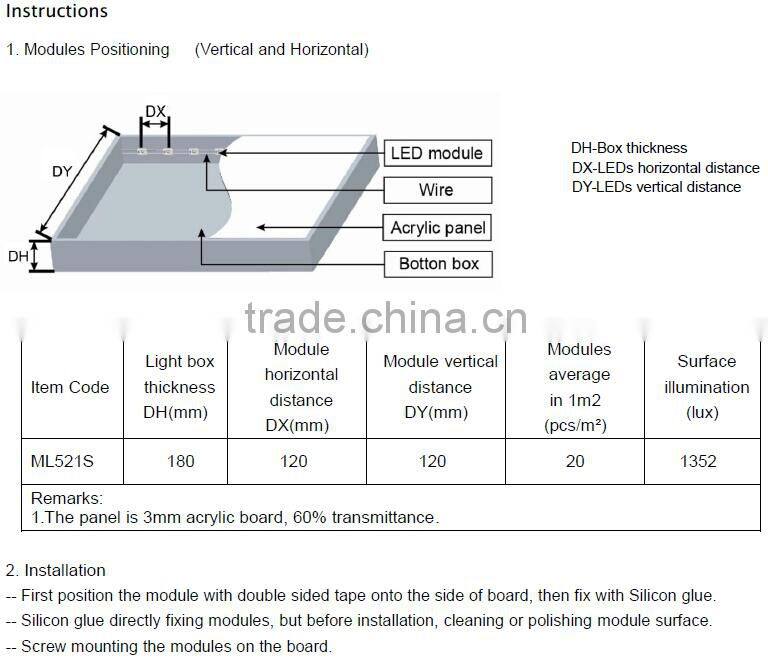

Product Instructions

45*15 degree wide beam angle led module edge emiting led module power lens





Light Attenuation Graph

45*15 degree wide beam angle led module edge emiting led module power lens

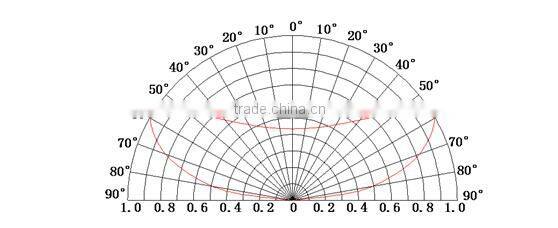

Light Distribution Curve:

45*15 degree wide beam angle led module edge emiting led module power lens





Product Package

45*15 degree wide beam angle led module edge emiting led module power lens

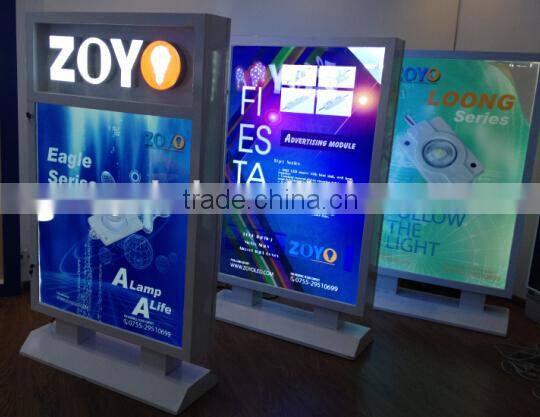

 Product Application

Light boxes, Logo lighting, Advertising Signs, Back light source, Channel letters, etc.

45*15 degree wide beam angle led module edge emiting led module power lens



45*15 degree wide beam angle led module edge emiting led module power lens

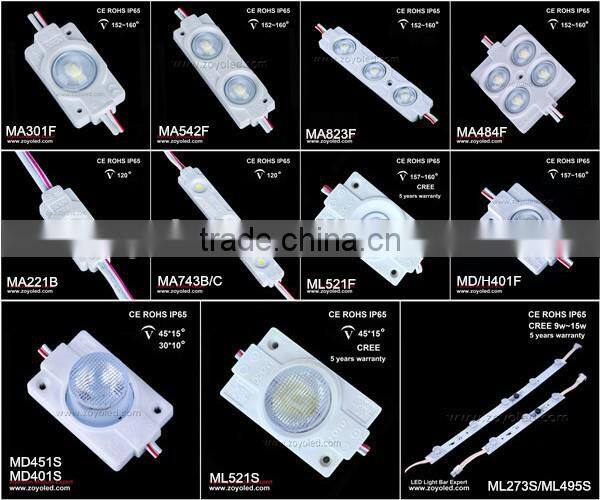

Product Showcase

45*15 degree wide beam angle led module edge emiting led module power lens



45*15 degree wide beam angle led module edge emiting led module power lens



45*15 degree wide beam angle led module edge emiting led module power lens



45*15 degree wide beam angle led module edge emiting led module power lens





Factory View

45*15 degree wide beam angle led module edge emiting led module power lens





Product Shipping

45*15 degree wide beam angle led module edge emiting led module power lens





Our Exhibition

45*15 degree wide beam angle led module edge emiting led module power lens





Why choose ZOYO LED?

1> Factory direct pricing

2> Factory customer support and service

3> In-house design and development

4> Experienced engineering

5> Quality assurance

6> Cost control due to vertical integration

7> In-house control of production

8> On time delivery control





Our Service



1. All your inquires will be replied within 12 hours

2. Well-trained and passional sales consultant who can speak fluent English

3. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.

4. Experienced R&D engineers with strong ability to do ODM projects.





More information, please feel free to contact us or send e-mail to info4(at). FREE samples are waiting for you. ^_^
