Light Box Led Module Back Light Led Module Side Light Module Led

Light Box Led Module Back Light Led Module Side Light Module Led thumbnail-1
Light Box Led Module Back Light Led Module Side Light Module Led thumbnail-2
Light Box Led Module Back Light Led Module Side Light Module Led photo-1
Light Box Led Module Back Light Led Module Side Light Module Led photo-2
US$ 0.41 - 0.53 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
MA823F
Chip Material:
InGaN
Emitting Color:
Other, warm white, pure white, cool white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number MA823F
Chip Material InGaN
Emitting Color Other, warm white, pure white, cool white
Luminous Flux(lm) 140lm
Optical Attenuation(%) 1%
Power Other, 1.5W
Power Dissipation 1.5W
Color Rendering Index(Ra) 80
Color Temperature 3000K-15000K
Operating Temperature(℃) -20, 45
Storage Temperature(℃) -30, 60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

light box led module back light led module side light module led

Product Name

High power led injection module with lens smd2835 led module light good price

module led back lighting





Product Advantage

1. Use high brightness high power SMD2835 as light source

2. Al substrate for LED components with well heat transfer
3. 160 degree wide Beam Angle
4. One-time Injection molding with own patent
5. Best sealed, waterproof IP65; 3-year Warranty
6. CE RoHS certified





Product Parameter

Parameters                          (Room temperature =25℃)

Items

Parameter

Unit

LED type

SMD2835



LED Quantity

3

PCS

Concatenation

20

PCS

Dimension

82*18*7.2

mm

Power

1.5±10%

W

Modules’ Centre Dis.

224

mm

Input V.

DC12

V

Input C.

0.125

A

Drive Mode

Constant Current



Surface Temp.

< 40

℃

Working Temp.

-20 ~ +50

℃

Storage Temp.

-30 ~ +60

℃

Protect Level

IP65

-

 Optical and Electrical Parameters               (Room temperature =25℃)

Test Item

Test Condition

Symbol

Parameters

Unit

Min.

Typical

Max

Color Temperature

DC12V

CCT

12000

15000

18000

K

CRI

DC12V

CRI

70

80

85

Ra

Luminous Flux

DC12V

Φ

105

116

128

lm

Light Efficiency

DC12V

LPW

70

77

85

lm/W

Visual Angle

DC12V

Wd

147

152

157-

Deg









Product Sketch

light box led module back light led module side light module led



 light box led module back light led module side light module led





Light Attenuation Graph

light box led module back light led module side light module led





Light Distribution Curve:



 light box led module back light led module side light module led





Product Package

light box led module back light led module side light module led

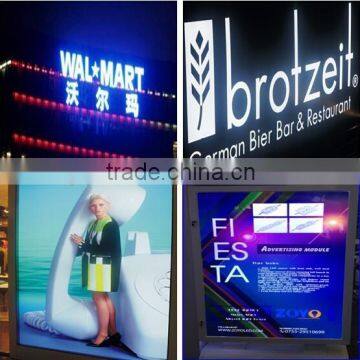

 Product Application

Light boxes, Logo lighting, Advertising Signs, Back light source, Channel letters, etc.

light box led module back light led module side light module led





Product Showcase

light box led module back light led module side light module led

light box led module back light led module side light module led



light box led module back light led module side light module led



light box led module back light led module side light module led





Factory View

light box led module back light led module side light module led





Product Shipping

light box led module back light led module side light module led





Our Exhibition

light box led module back light led module side light module led





Why choose ZOYO LED?

1> Factory direct pricing

2> Factory customer support and service

3> In-house design and development

4> Experienced engineering

5> Quality assurance

6> Cost control due to vertical integration

7> In-house control of production

8> On time delivery control





Our Service

1. All your inquires will be replied within 12 hours

2. Well-trained and passional sales consultant who can speak fluent English

3. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.

4. Experienced R&D engineers with strong ability to do ODM projects.



More information, please feel free to contact us or send e-mail to info4(at). FREE samples are waiting for you. ^_^



Thanks and best regards,

Jacey Wu

Oversea Dept.

Skype: jacey.wu

Mob: +86-15919423655

Shenzhen ZOYO LED
