UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter

UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter thumbnail-1
UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter thumbnail-2
UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter photo-1

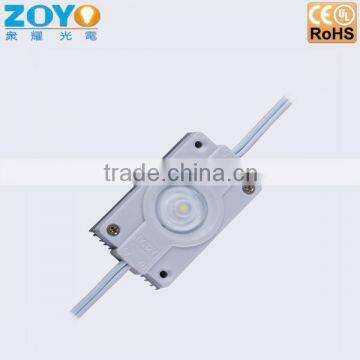

UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter photo-2
US$ 1.32 - 1.42 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
Loong series-ME501F
Chip Material:
InGaN
Emitting Color:
Other, white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port/HK Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number Loong series-ME501F
Chip Material InGaN
Emitting Color Other, white
Luminous Intensity 10000
Luminous Flux(lm) 220-230
Optical Attenuation(%) 5%
Power 3W
Power Dissipation 0.72
Color Rendering Index(Ra) 83
Color Temperature 7000k
Operating Temperature(℃) -20, +45
Storage Temperature(℃) -30, +60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

Constant current led module 3W waterproof led pixel module light 12V flexible led light advertising light 5 year warranty



Product Advantage



1. High Power 3535 LED, 5 Year Warranty

2. Constant current driving mode

3. Wide Beam Angle 165 degree

4. PMMA optic lens

5. High lumen & high power

6. Patented unique design

7. OEM/ODM available

8. CE & RoHS certified

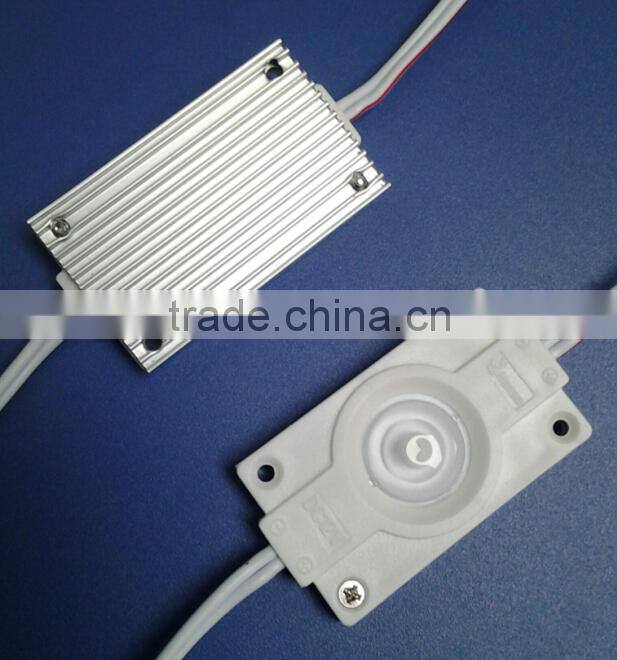

Product Sketch

UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel LetterUL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter

  UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter

Product Parameter



UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter


Constant current led module 3W waterproof led pixel module light 12V flexible led light advertising light 5 year warranty





Light Attenuation Graph

UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter



Light Distribution Curve:



 UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter



Instructions



1. Modules Positioning   (Vertical and Horizontal)



Item     Code

Light box thickness

DH(mm)

Module horizontal distance

DX(mm)

Module vertical

distance

DY(mm)

Module Qty.

in 1m2

(pcs/m²)

Surface illumination

(lux)

ME501F

180

175

175

30

800

Remarks:

1.The box panel is 3mm height acrylic board, 60% transmittance.





















2.Installation



-- Clean the fixation board and stabilize it.



-- Position the module with double sided tape and stick on the back of board.



-- Use silicon glue to fix modules (if needed).



-- Screw mounting the modules on the fixation board.



 UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter







Constant current led module 3W waterproof led pixel module light 12V flexible led light advertising light 5 year warranty




Product Application



UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter



UL Waterproof Led Module IP65 / 3W Injection Molding LED Module for Backlight/ Channel Letter





Packaging & Shipping

Product Package





Shipping

1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods;

4.Delivery Time: 3-5 days for samples; 10-15 days for batch goods.



Payment terms:

1. Payment: T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery

2.MOQ:20 pcs

3.Warranty: 5 years

4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.

Our Services

Why choose us?

1.We are Alibaba Assessed Gold Supplier;

2.We are a factory professional manufacturing Injection molding LED modules,Best production

capability,best quality control,Best service.

3.We have our own R&D engineers team,best product innovation capabilities;

4.100% QC inspection Before Shippment;

5.CE/ROHS listed,factory direct sales,competitive price.
