High Power 1 Led SMD3535,3w,12v,round Lens,ABS; Beautiful and Strong Quality Injection Led Module

High Power 1 Led SMD3535,3w,12v,round Lens,ABS; Beautiful and Strong Quality Injection Led Module thumbnail-1
High Power 1 Led SMD3535,3w,12v,round Lens,ABS; Beautiful and Strong Quality Injection Led Module thumbnail-2
High Power 1 Led SMD3535,3w,12v,round Lens,ABS; Beautiful and Strong Quality Injection Led Module photo-1
High Power 1 Led SMD3535,3w,12v,round Lens,ABS; Beautiful and Strong Quality Injection Led Module photo-2
US$ 1.32 - 1.42 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
Loong series-ME501F
Chip Material:
InGaN
Emitting Color:
Other, white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port/HK Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number Loong series-ME501F
Chip Material InGaN
Emitting Color Other, white
Luminous Flux(lm) 220-230
Optical Attenuation(%) 5%
Power 3W
Color Rendering Index(Ra) 83
Color Temperature 7000k
Operating Temperature(℃) -20, +45
Storage Temperature(℃) -30, +60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

Constant current led module 3W waterproof led pixel module light 12V flexible led light advertising light 5 year warranty



Product Advantage



1. High Power 3535 LED, 5 Year Warranty

2. Constant current driving mode

3. Wide Beam Angle 165 degree

4. PMMA optic lens

5. High lumen & high power

6. Patented unique design

7. OEM/ODM available

8. CE & RoHS certified

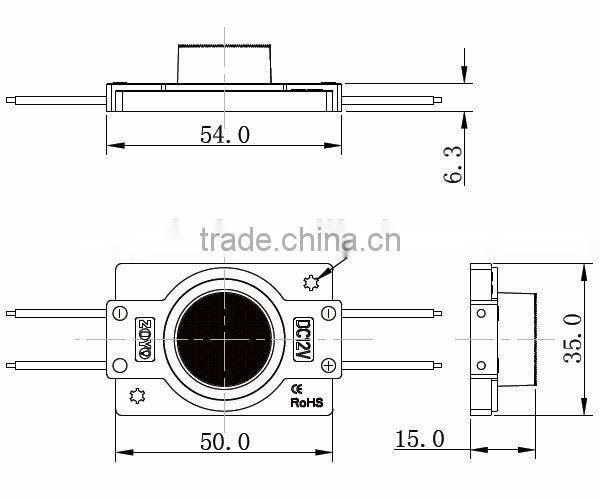

Product Sketch

high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led modulehigh power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module

  high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module

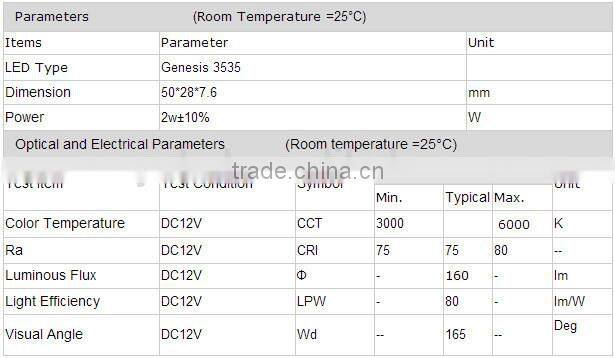

Product Parameter



high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module


Constant current led module 3W waterproof led pixel module light 12V flexible led light advertising light 5 year warranty

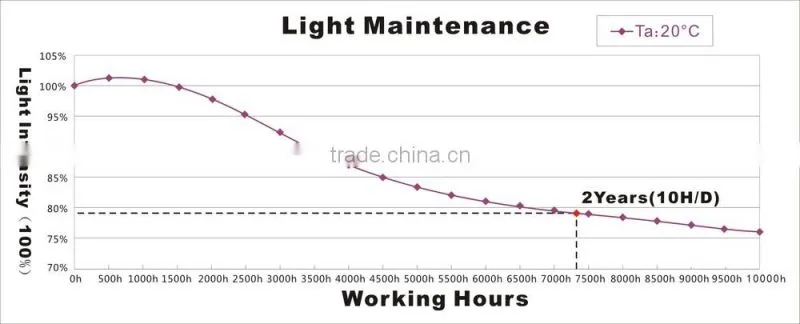

Light Attenuation Graph

high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module

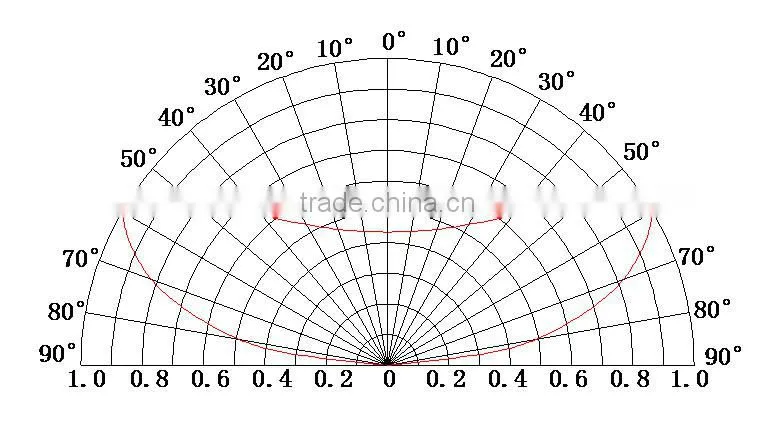

Light Distribution Curve:



 high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module



Instructions

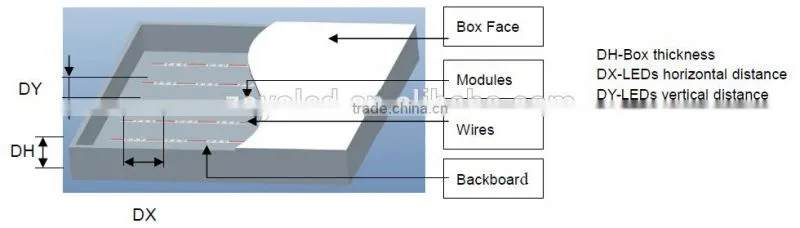

1. Modules Positioning   (Vertical and Horizontal)



Item     Code

Light box thickness

DH(mm)

Module horizontal distance

DX(mm)

Module vertical

distance

DY(mm)

Module Qty.

in 1m2

(pcs/m²)

Surface illumination

(lux)

ME501F

180

175

175

30

800

Remarks:

1.The box panel is 3mm height acrylic board, 60% transmittance.





















2.Installation



-- Clean the fixation board and stabilize it.



-- Position the module with double sided tape and stick on the back of board.



-- Use silicon glue to fix modules (if needed).



-- Screw mounting the modules on the fixation board.



 high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module







Constant current led module 3W waterproof led pixel module light 12V flexible led light advertising light 5 year warranty

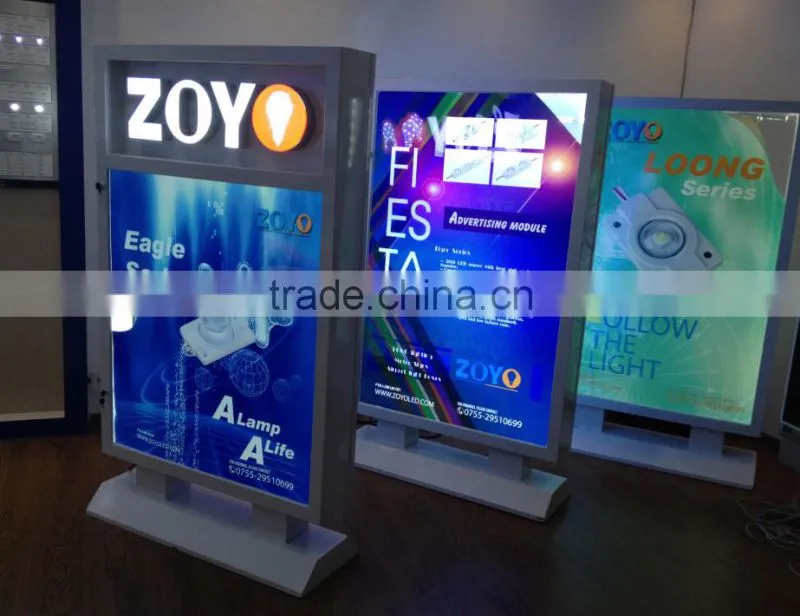

Product Application



high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module



high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module





Packaging & Shipping

Product Package





Shipping

1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods;

4.Delivery Time: 3-5 days for samples; 10-15 days for batch goods.



Payment terms:

1. Payment: T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery

2.MOQ:20 pcs

3.Warranty: 5 years

4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.

Our Services

Why choose us?

1.We are Alibaba Assessed Gold Supplier;

2.We are a factory professional manufacturing Injection molding LED modules,Best production

capability,best quality control,Best service.

3.We have our own R&D engineers team,best product innovation capabilities;

4.100% QC inspection Before Shippment;

5.CE/ROHS listed,factory direct sales,competitive price.

Company Information

 Company View

high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led modulehigh power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module

  high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module



Our certifications:CE/ROHS



high power 1 led SMD3535,3w,12v,round lens,ABS; beautiful and strong quality injection led module





How to contact Us?

Sales: Jenny Lee

Email: info7@

Mobile & We Chat: 86-18307202615

Skype: zoyoled_sales7

Alibaba: cn1511108560
