Injection led module Epistar Samsung chip led module light DC12V CE RoHS UL 5 years warranty waterproof For lightboxes channel latters
|
Parameters
| |
Product No. |
MD401F |
Size |
40*28*8.8mm |
LED |
SMD3030 |
Drive type |
Constant current driving IC |
Input voltage |
DC12V |
Input Current |
0.125A |
Power |
1.5W |
Luminous Flux |
115lm(ww),125(w),110(cw) |
Color Temperature |
3000K / 6500K / 9000K |
Beam angle |
165 degree |
IP rate |
IP65 |
|
Structure & material
|
Pure Aluminum PCB, ABS process, PMMA optic lens |
Warranty |
5 years warranty |
Quick Delievery |
7-10 days |
Certificate |
CE (EMC+LVD) / ROHS / UL |
Working temperature |
-20~+45°C |
Stock temperature |
-30~+60°C |
Wire distance |
146mm |
QTY. /Square meter |
40pcs |
Application |
advertising signs / channel letters / light boxes, and etc.. |
ODM & ODM |
Both are available |

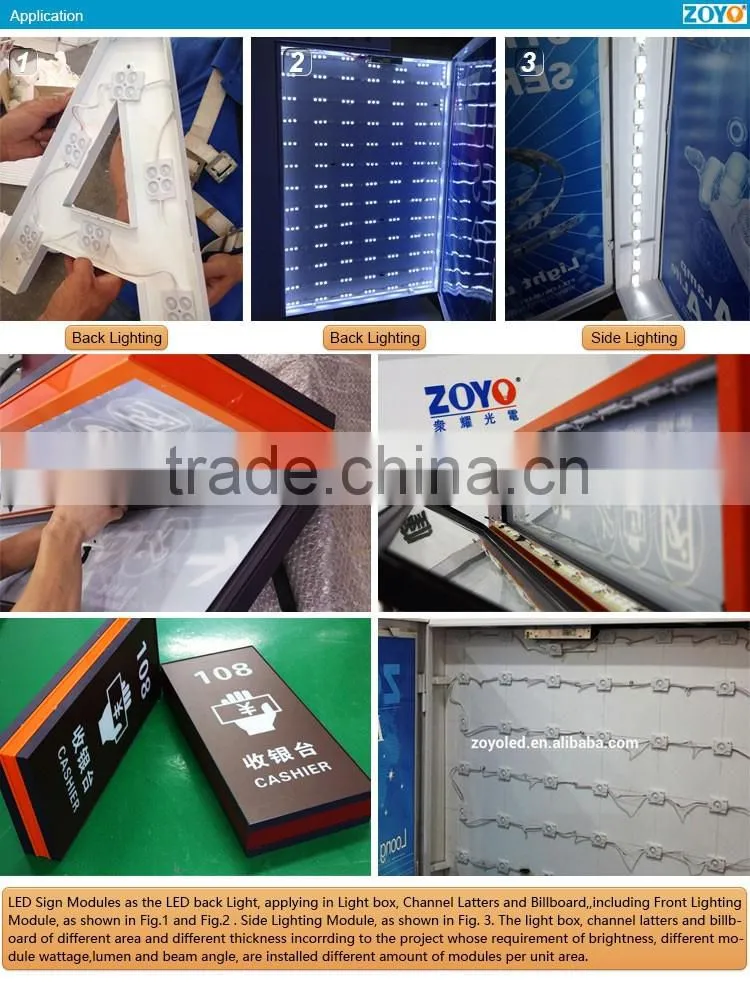

Product Application:
1.Advertising signs, LOGO & Channel Letters backlight.
2.Light source for advertising boxes or cabinets.
3.Ceiling lighting for elevators, conforence rooms, office, builidings.
4.And etc..
HOT SALES PRODUCTS | |||||
Product Name |
Items |
Power |
Color Tempreture |
Size |
Remark |
Bee Series |
MA221B |
0.36w |
15000K/ 6000K/ 3000K |
22*10*4.8mm |
Backlit |
MA743B |
0.6w |
15000K/ 6000K/ 3000K |
74*12*4.8mm |
Backlit |
|
Tiger Series |
MA301F |
0.6w |
15000K/ 6000K/ 3000K |
30*18*6.4mm |
Backlit |
MA542F |
1.2w |
15000K/ 6000K/ 3000K |
54*18*6.4mm |
Backlit |
|
MA653F |
0.72w |
15000K/ 6000K/ 3000K |
65*14.5*4.8 |
Backlit |
|
MA823F |
1.5w |
15000K/ 6000K/ 3000K |
82*18*7.2mm |
Backlit |
|
MA484F |
2w |
15000K/ 6000K/ 3000K |
48*36*6.4mm |
Backlit |
|
|

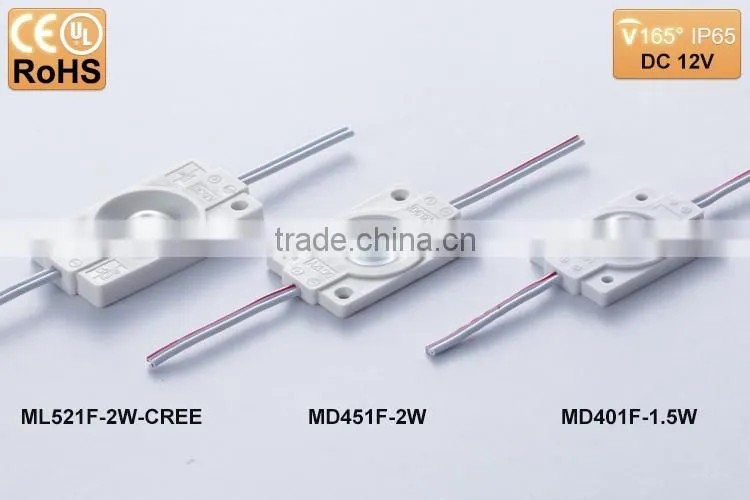

Loong Series
|
MD451F |
2w |
6000K/ 3000K/ 9000K |
45*30*8.8mm |
Backlit |
MH401F/MD401F |
1.5w |
6000K/ 3000K/ 9000K |
40*28*7.4mm |
Backlit |
|
1.2w |
6000K/ 3000K/ 9000K |
||||
CREE XBD LED |
ML521F |
2w/3w |
6000K/ 3000K |
52*28*7.4mm |
Backlit |
Eagle Series |
MD401S |
1.2w |
6000K/ 3000K |
40*35*15mm |
Edge light |
Eagle Series |
MD451S |
2w |
6000K/ 3000K |
45*35*15mm |
Edge light |
CREE XBD LED |
ML521S |
2w/3w |
6000K/ 3000K |
52*35*15mm |
Edge light |
ML273S |
9w |
6000K/ 3000K |
273*26*15mm |
Edge light |
|
ML495S |
15w |
6000K/ 3000K |
495*26*15mm |
Edge light |
|
Item Code |
Light box thickness DH(mm) |
Module horizontal distance DX(mm) |
Module vertical distance DY(mm) |
Module Qty. in 1m2 (pcs/m²) |
Surface illumination (lux) |
MD401F |
120 |
180 |
160 |
40 |
812 |
|
Remarks: 1.The box panel is 3mm acrylic board with transmittance 60% | |||||
Installation
1.Clean the fixation board and stabilize it.
2.Position the module with double sided tape and stick on the back of board.
3.Use silicon glue to fix modules (if needed).
4.On the modules, two holes of size Φ2.5mm, use Φ2mm*8 screws mounting the modules on the fixation board.
Shipping method and shipping time
1. Express (DHL, UPS, FEDEX, TNT): around 5-7 working days
2. Transport by air: around 5-8 working days
3. Ocean shipping: around 1-2 month
ZOYO LED is a professional high technology and new technology enterprise, who is specialized in development, production, sales, service of LED signage modules.
The core team of the company compose with the experienced specialists and senior engineers, who have been working in this fields more than 10 years. And a few leaders in the electronic, structural,optical fields form the R & D center. We are honored with our own national patents.
Through persevering efforts, ZOYO LED has passed ISO9001, and all products have been CE, RoHs UL certificated.Products are exported to Western Europe, Mid-East and South-East Asia as well as south America.Our sales net are under built in these regions in order to give our customers best after service.
ZOYO LED always doing its best to focus on LED light innovation, guarantee the products' reliable quality, most competitive price & fast delivery.
1.We are Alibaba Assessed Gold Supplier.

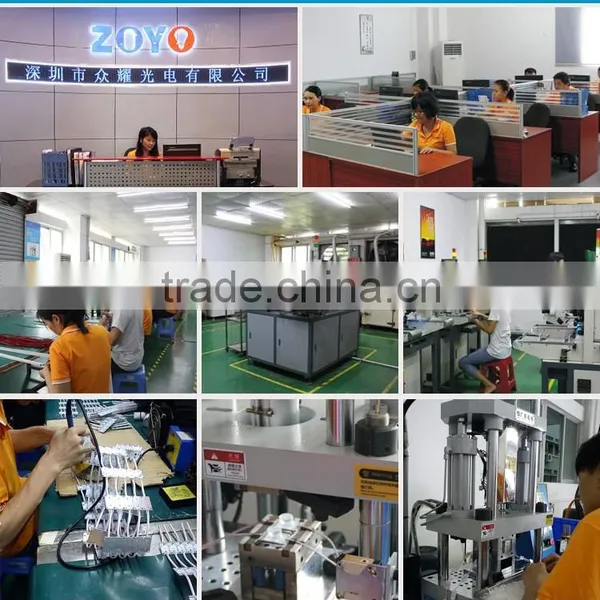

2.We are a factory professional manufacturing Injection molding LED modules with present 16 injection machines, SMT machines,
wire solderings for large production capability of 1million pieces a month, ISO9001:2008 quality control system, instant services.
3.We have our own R&D engineers’ team, strong product innovation capabilities.
4.100% Quality assured before shipment, 0 complain after customers received cargo.
5. factory direct sales, most competitive prices for LED Modules distributors & wholesalers.
6. All your inquires will be replied within 12 hours
7. Well-trained and professional sales consultant who can speak fluent English
8. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.
9. Experienced R&D engineers with strong ability to do ODM projects.
Welcome to ODM/OEM design!
