Specifications
custom led module manufacturer1. Professional led factory
2. All LED soldered is Epistar chips
3. 3 years warranty
custom led module manufacturer

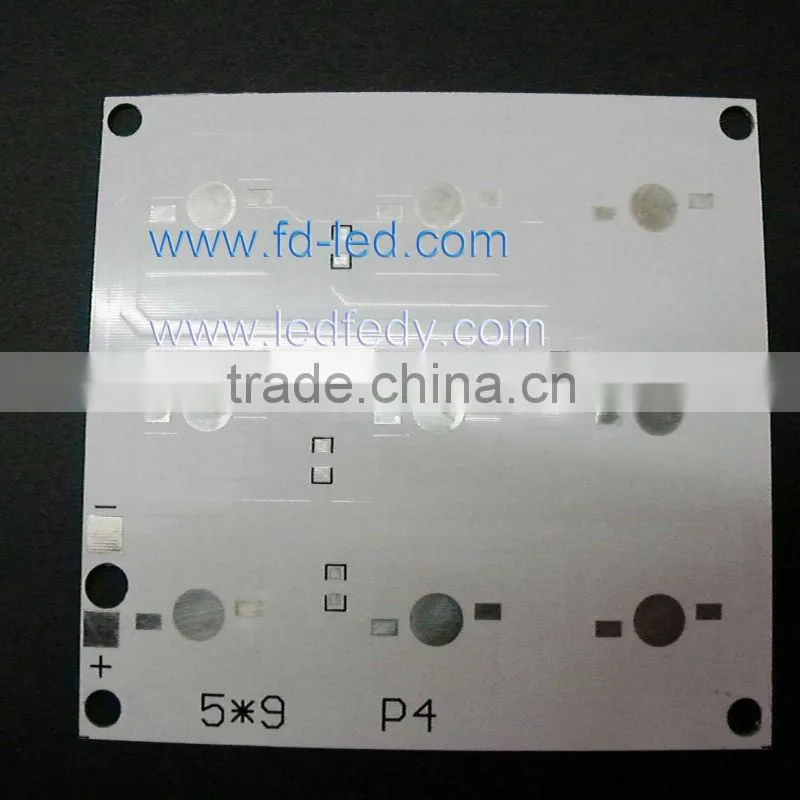

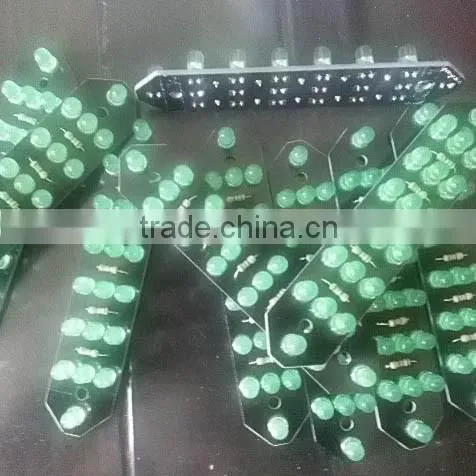

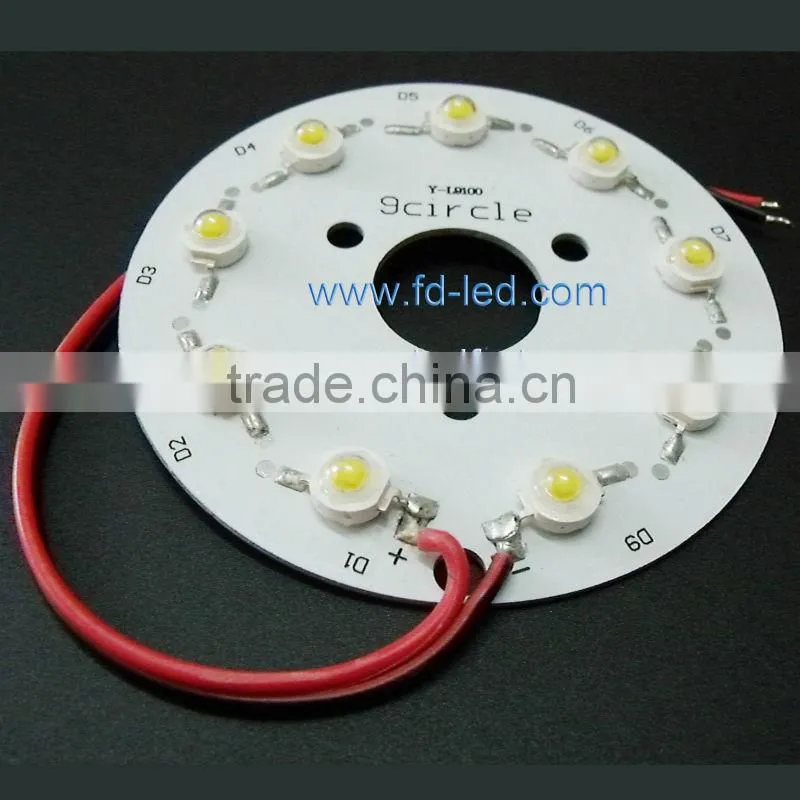

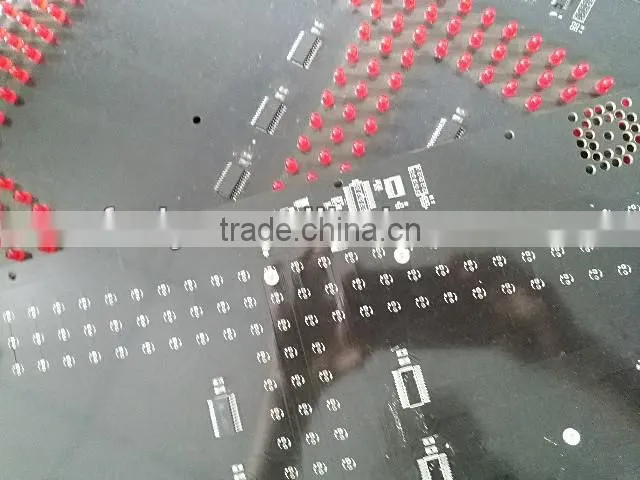

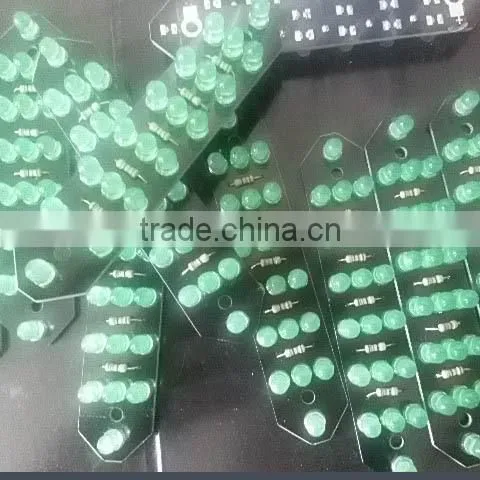

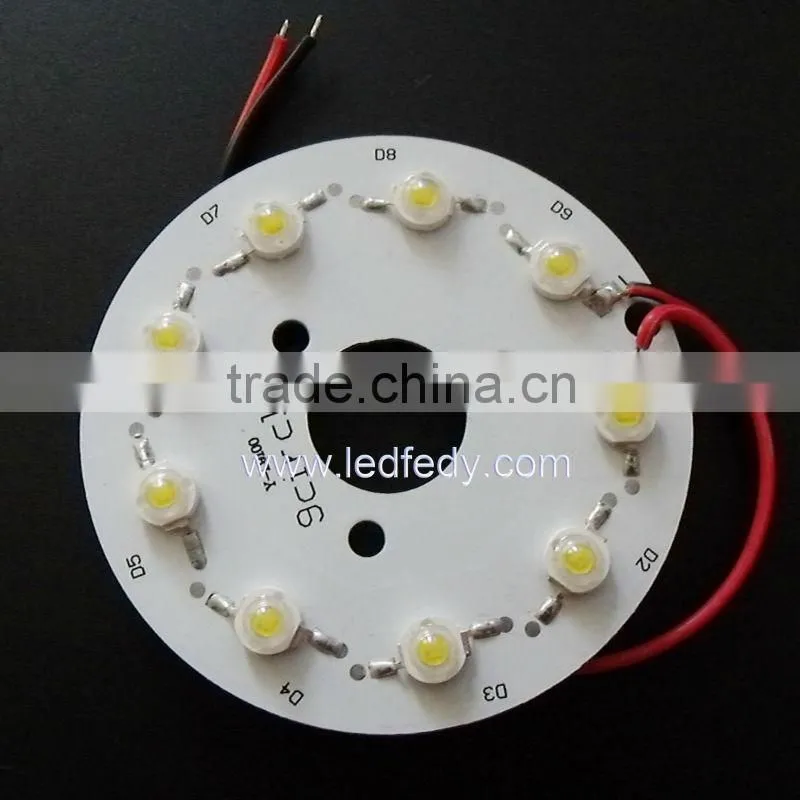

PCB with LED soldered .
PCB avaialble with various size .
LED available with : 3mm 5mm 8mm 10mm , Super flux , helmet . straw hat . 1w , 3w , SMD3528, 5050, 5730 etc
PCB material in FR4 FR6 and Aluminum
All apply to ROHS, including soldering materials.
Quality won't let you disappointed.
For small pcbs it 10pcbs a box of PP bag .
Large PCBs , 1pcb per static PP bag
Then in CTN .
Sample request is warmly welcome.
OEM is welcome .
We are a professional LED manufacturer since 2000. Focused on high quality LED component and relavent items.
Quality & Service & Price won't let you disappointed .
Need your detailed information on the PCB design and BOM list to do this part.
Application :

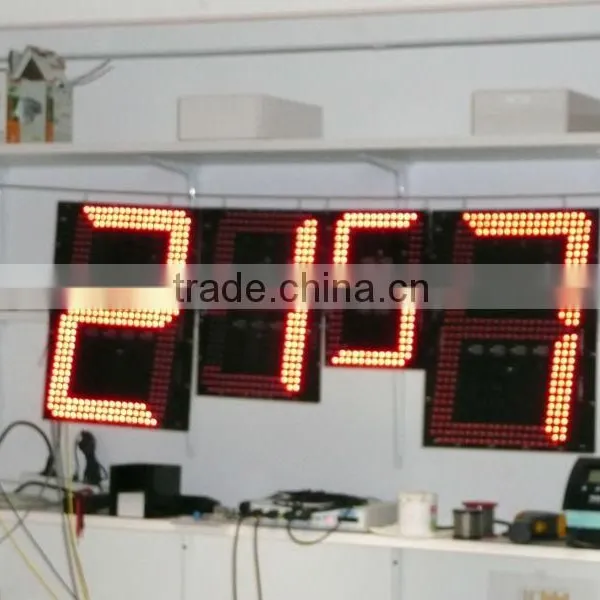

Inddor outdoor signs , signals , traffic signs , traffic arrows , Scroeboards .. etc .
Options of LEDs for PCB board :
3mm 5mm 8mm 10mm in various intensity ,
Emitting color : White, Blue, Green, Cyan , Yellow, Amber, Red, Pink, Purple,
Emitting angle : 15 20, 30, 45, 60, 90degree
Lens color : water clear , white diffused , color diffused .
Some details on 3mm 5mm for reference.
| Item | Color | Intensity | Item No. |
| 5mm led | White Warm white Cool white |
16000-18000 | FD-5TW-1 |
| 20000-23000 | FD-5TW-2 | ||
| 25000 | FD-5TW-3 | ||
| Green | 20000-23000 | FD-5TG-1 | |
| 23000-25000 | FD-5TG-2 | ||
| 25000-28000 | FD-5TG-3 | ||
| Blue | 6000-8000 | FD-5TB-1 | |
| 10000-15000 | FD-5TB-2 | ||
| 13000-15000 | FD-5TB-3 | ||
| 15000-18000 | FD-5TB-4 | ||
| Red | 4000-6000 | FD-5TR-1 | |
| 6000-8000 | FD-5TR-2 | ||
| 8000-12000 | FD-5TR-3 | ||
| 12000-18000 | FD-5TR-4 | ||
| 18000-20000 | FD-5TR-5 | ||
| 20000-23000 | FD-5TR-6 | ||
| 23000-25000 | FD-5TR-7 | ||
| Yellow | 5000-7000 | FD-5TY-1 | |
| 8000-10000 | FD-5TY-2 | ||
| 10000-15000 | FD-5TY-3 | ||
| 18000-22000 | FD-5TY-4 | ||
| 22000-25000 | FD-5TY-5 | ||
| Amber | 5000-7000 | FD-5TA-1 | |
| 8000-10000 | FD-5TA-2 | ||
| 10000-15000 | FD-5TA-3 | ||
| 18000-22000 | FD-5TA-4 | ||
| 22000-25000 | FD-5TA-5 | ||
| UV | 2000-3000 | FD-5TUV-1 | |
| 3000-5000 | FD-5TUV-2 | ||
| Pink | 2000-3000mcd | FD-5TPI-1 | |
| 3000-6000mcd | FD-5TPI-2 | ||
| 3mm led | White Warm white Cool white |
13000-16000 | FD-3TW-1 |
| 16000-18000 | FD-3TW-2 | ||
| 20000-23000 | FD-3TW-3 | ||
| Green | 16000-18000 | FD-3TG-1 | |
| 20000-23000 | FD-3TG-2 | ||
| 23000-25000 | FD-3TG-3 | ||
| Blue | 5000-6000 | FD-3TB-1 | |
| 6000-8000 | FD-3TB-2 | ||
| 10000-12000 | FD-3TB-3 | ||
| 12000-15000 | FD-3TB-4 | ||
| Red | 3000-4000 | FD-3TR-1 | |
| 4000-6000 | FD-3TR-2 | ||
| 6000-8000 | FD-3TR-3 | ||
| 8000-12000 | FD-3TR-4 | ||
| 12000-18000 | FD-3TR-5 | ||
| 18000-20000 | FD-3TR-6 | ||
| 20000-23000 | FD-3TR-7 | ||
| Yellow | 1500-2500 | FD-3TY-1 | |
| 5000-7000 | FD-3TY-2 | ||
| 8000-10000 | FD-3TY-3 | ||
| 10000-15000 | FD-3TY-4 | ||
| 18000-22000 | FD-3TY-5 | ||
| Amber | 1500-2500 | FD-3TA-1 | |
| 5000-7000 | FD-3TA-2 | ||
| 8000-10000 | FD-3TA-3 | ||
| 10000-15000 | FD-3TA-4 | ||
| 18000-22000 | FD-3TA-5 | ||
| UV | 1500-2500 | FD-3TUV-1 | |
| 2000-3000 | FD-3TUV-2 | ||
| Pink | 2000-2500mcd | FD-3TPI-1 | |
| 2500-5000mcd | FD-3TPI-2 |
Pictures :
