Linear shaft/Chrome rod Steel bars
- 100000 Piece / Pieces per Month
- Shenzhen
-
Maintenance-free EFOM-16 17 20 25 30 Flange Base Bearing Rhombus
-
Base Bearing Seat EFOM- 12 15 16 17 20 Wholesale Plastic Bearings
-
Self Lubricating Pedestal Bearing 01-04/06/08/10/12/15/20/25/30 EFOM
-
EFOM/EFSM/KSTM Flange Base Bearing-04 06 08 10 12 17 20 25 30
-
Self lubricating similar Igus replace sliding film for Plastic linear bearing
-
15mm High GFM-1012-15 Self-lubricating Engineering Plastic Sliding Bush Bearing
Product Details
| Place of Origin: | Guangdong, China |
Product Description
linear bearing from china LM UU/LM LUU/LM OP/LM AJ
1. Detailes for linear bearing from china LM UU/LM LUU/LM OP/LM AJ
Products Name | linear bearing from china LM UU/LM LUU/LM OP/LM AJ |
Precision grade | P0 P6 P5 P4 P2 |
Service | OEM service or customer’s sample |
Payment Term | T/T, Western Union, Paypal 1.30% deposit by T/T,Western Union,Paypal,70% before delivery 2.100% L/C at sight |
Packaging | linear bearing |
Market | South America,North America,Asia,Europe and so on |
linear bearing is
high precision linear motion rolling guide which travels along a shaft to achieve endless linear motion.
In the external cylinder, a retainer, steel balls, etc. Are compactly incorporated. Wide variations in size are available for selections suitable for each application.
Low frictional linear bearing
Steel balls are accurately guided by a retainer, so low frictional resistance and stable linear motion can be achieved.
BEARING CODE | BALL/ROW | WEIGHT/G | inner size(dr) | outer size(D) | length(L) |
LM6UU | 4 | 8 | 6 | 12 | 19 |
LM8SU | 4 | 11 | 8 | 15 | 17 |
LM8UU | 4 | 17 | 8 | 15 | 24 |
LM10UU | 4 | 30 | 10 | 19 | 29 |
LM12UU | 5 | 31.5 | 12 | 21 | 30 |
LM13UU | 5 | 43 | 13 | 23 | 32 |
LM16UU | 5 | 69 | 16 | 28 | 37 |
LM20UU | 5 | 87 | 20 | 32 | 42 |
LM25UU | 6 | 220 | 25 | 40 | 59 |
LM30UU | 6 | 250 | 30 | 45 | 64 |
LM35UU | 6 | 390 | 35 | 52 | 70 |
LM40UU | 6 | 585 | 40 | 60 | 80 |
LM50UU | 6 | 1580 | 50 | 80 | 100 |
LM60UU | 6 | 2000 | 60 | 90 | 110 |
LM80UU | 6 | 4520 | 80 | 120 | 140 |
2. Specification for linear bearing from china LM UU/LM LUU/LM OP/LM AJ:
BEARING CODE | BALL/ROW | WEIGHT/G | inner size(dr) | outer size(D) | length(L) |
LM6UU | 4 | 8 | 6 | 12 | 19 |
LM8SU | 4 | 11 | 8 | 15 | 17 |
LM8UU | 4 | 17 | 8 | 15 | 24 |
LM10UU | 4 | 30 | 10 | 19 | 29 |
LM12UU | 5 | 31.5 | 12 | 21 | 30 |
LM13UU | 5 | 43 | 13 | 23 | 32 |
LM16UU | 5 | 69 | 16 | 28 | 37 |
LM20UU | 5 | 87 | 20 | 32 | 42 |
LM25UU | 6 | 220 | 25 | 40 | 59 |
LM30UU | 6 | 250 | 30 | 45 | 64 |
LM35UU | 6 | 390 | 35 | 52 | 70 |
LM40UU | 6 | 585 | 40 | 60 | 80 |
LM50UU | 6 | 1580 | 50 | 80 | 100 |
LM60UU | 6 | 2000 | 60 | 90 | 110 |
LM80UU | 6 | 4520 | 80 | 120 | 140 |

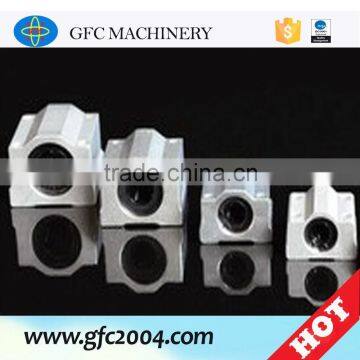

3. picture for linear bearing from china LM UU/LM LUU/LM OP/LM AJ:
4.Any more quesitons ,pls feel free to contact me.Tks
