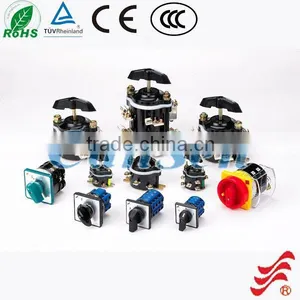

1000v 2 poles solar isolator

Specifications

1000v 2 poles solar isolator
history for 30 years,
current range:10A to 160A
certificate:Rohs&CE

  1000v 2 poles solar isolator

Our company specializes in various rotary switch in your exact specification.If you do not find the exact items your needs,please do not be rush to go away.Send your specifications or item number or picture to us so we can give you our best resolves.



Advantage:



1.Specializes in manufacturing rotary switch more than 30 years as well as export the relevant component more than 5 years



2.CCC-marked products conform to REACH,TUV,and CCC regulations



3.Rich selection of rotary switch,change over switch,cam switch,isolator switch



4.ISO 9001:2008-certified factory quipped with automated assembly lines



5.Sample take up to 3 days,but can be finished with one day in ugent cases



6.The rotary switch can replace Kraus & Naimer retary switch



7.Provide mark logo serivice when the quantity more than 1000pcs



8.Custom orders welcome



No.	Tech Parameters	requirement
1.	rated voltage	below 440V & DC220
2.	rated current	10A,20A,25A,32A,63A,80A,100A,125A,160A
3.	frequency	AC50HZ
4.	No.of poles	2P,3P,4P
5.	No.of layers	make as required with circuit diagram
6.	panel size	30*30mm,48*48mm,64*64mm,88*88mm
7.	colour of handle	black,white,red,grey
8.	working temperature	-25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C)
9.	Working height	≤2,000m
10.	Relative humidity	≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C)
11.	Instalation conditions	polution class III
12.	Mechanical life	0.1*106times
13.	Electrical life	0.03*106times
14.	Operative frequency	120times/hour
15.	transform angle	30°/45°/60°/90°/120°/135°/150°

1000v 2 poles solar isolator
