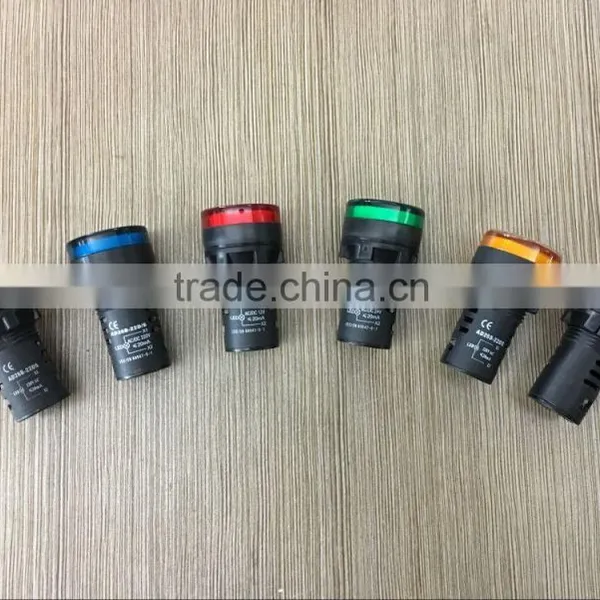

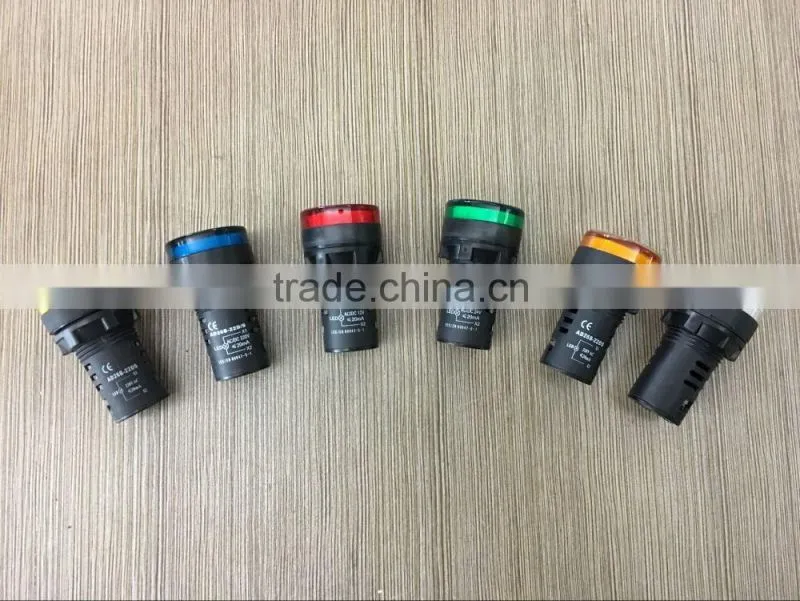

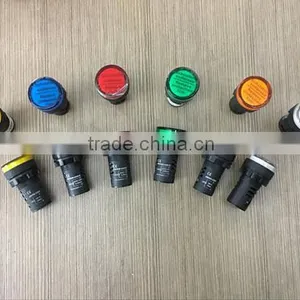

Help CenterSignal Indicator Lamp AD16-22D/S AC 220V,AD26-22D/S AC/DC 220V
Related Products

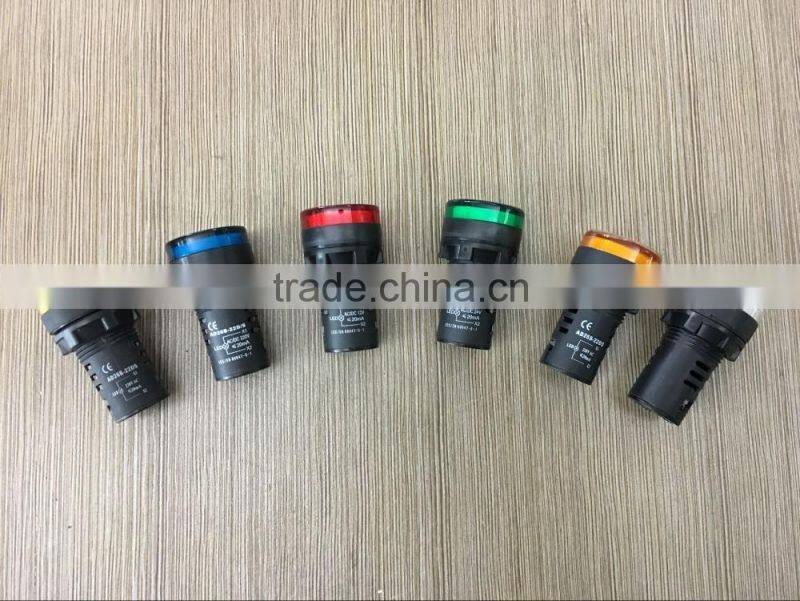

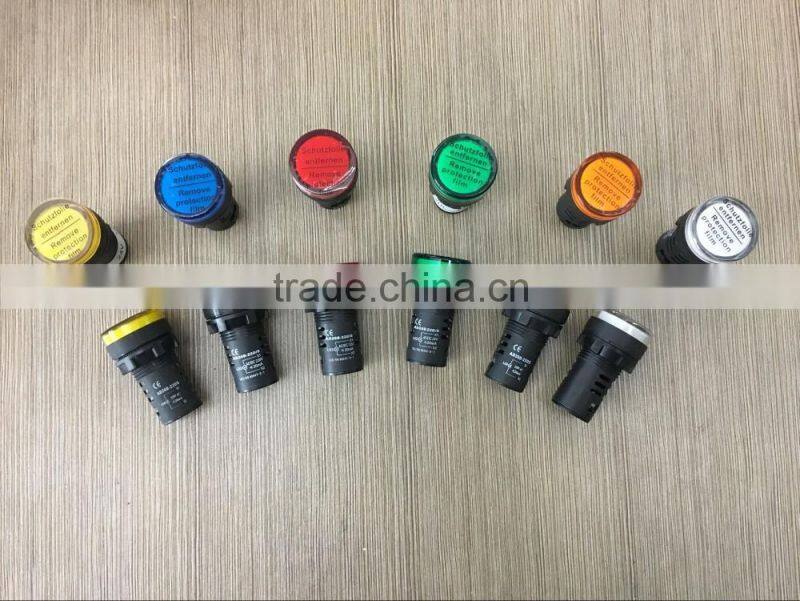

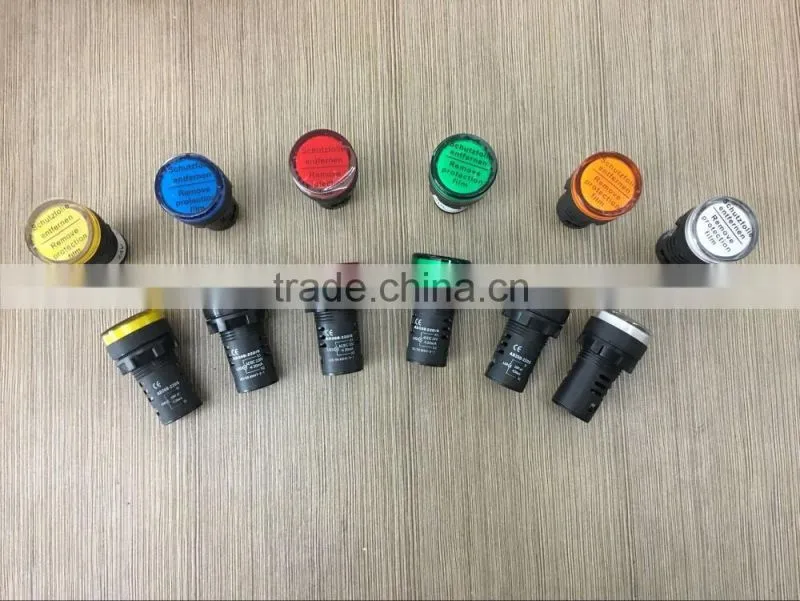

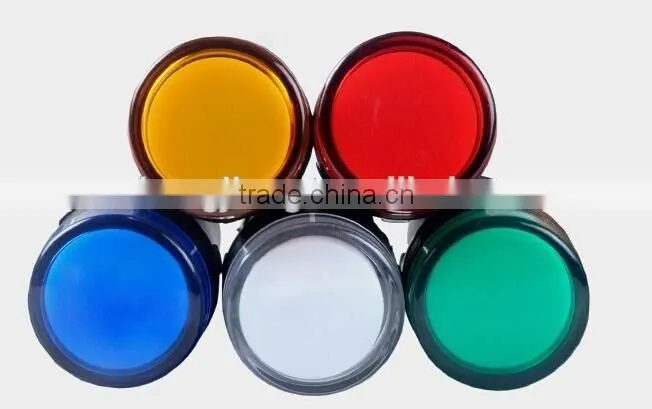

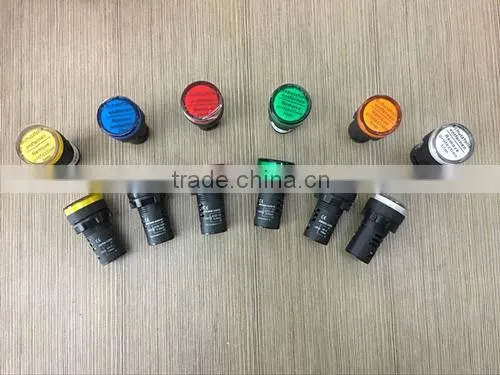

AD16-22DS Short body Economical Signal light with screw terminal
1.Model Number:AD16-22D/S signal light
2.Power Frequency withstand Voltage:2.5kv/1 min (effective AC value)
3.Insulation resistance:≥2MΩ
4.Allowable voltage fluctuation:±20%
5.Continuous Operationg Life:≥30000h
6.Brightness:≥100cd/m2
7.CTI≥100
8.Protection degree of the head IP65,IP67 is avaliable on request.
9.Applying Frequency:AC50-60HZ
10. Optional voltage:12V 24V 220V 380V (customized 230V 110V)

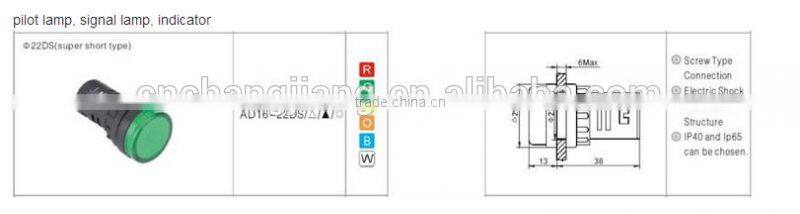

11.Dimension: 50mm*28mm
Performance and characteristic
| Working temperature | -25°C ~ +55°C No frozen The around of light switch body must be airiness | |||||||
| Work environment humidity | 45-85%RH Non condening | |||||||
| Contact material | Silver cadmium oxideS ilver plated gold plating thickness 3 µm | |||||||
| Contact resistance | ≤50mΩ | |||||||
| Insulation resistance | ≥100mΩ | |||||||
| Max withstand voltage | 300V.AC50Hz | |||||||
| Vibration proof | 50Hz,Amplitude about1.0mm | |||||||
| Impact resistance | Greater than 10g | |||||||
| Mechanical life | 1,000,000 times | |||||||
| Electric life | Above 30,000 times | |||||||
| Wiring | Screw join Line dia max 2x1.5mm, Wiring insert:6.3 0.8mm | |||||||
| Operating | Operating force:200gf~500gf, depend the quatity of switch element | |||||||

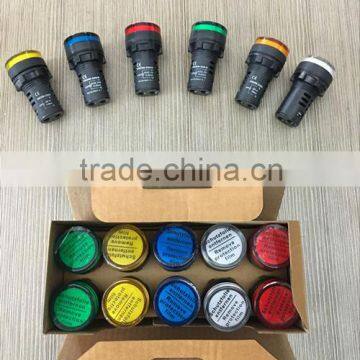

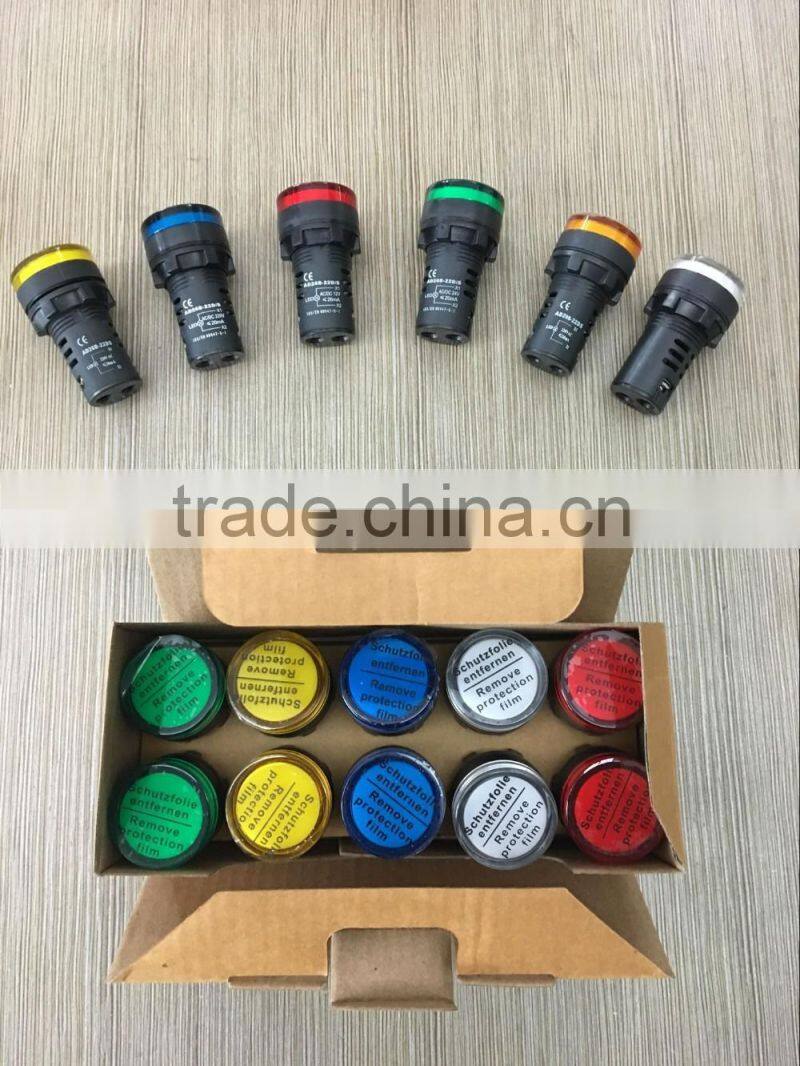

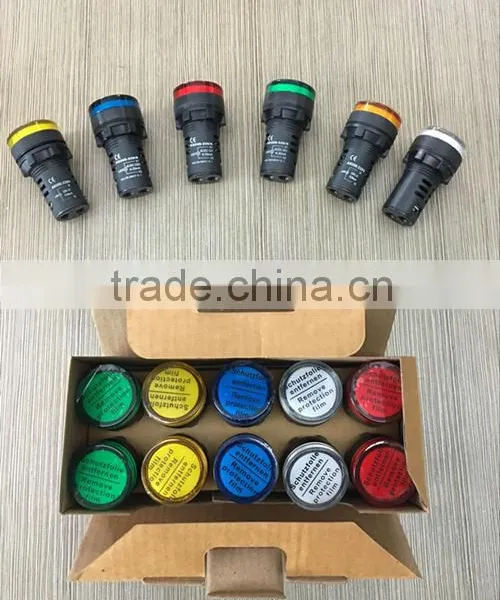

AD16-22DS plastic signal light with screw termimal, We pack each diameter 22mm plastic push button switches packed into a small box separately.Then will put 10 small boxes into a 3 layers corrugated inner box with 1 piece of guarantee card.Finally ,we packed 50 boxes into a 5 layers corrugated export carton.
DETAILS:
