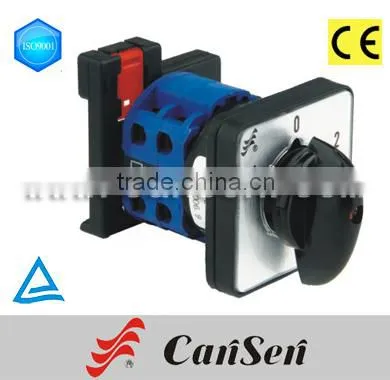

Cam Switch LW26 (ROHS,CE Certificate) With Single Hole Installation

Name: Cam Switch LW26 (ROHS,CE Certificate) With Single Hole Installation
Brand: CANS
SKU: 109666929

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

CANS

Model Number:

LW26

Wenzhou Changjiang Electrical Appliance Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo&Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name CANS

Model Number LW26

Max. Current 160A

Max. Voltage 440V&DC 240V

Mechanical Life 10,000,000times

Specifications

productive history for 30 years,
current range:10A to 160A
certificate:Rohs&CE
IP class:IP65

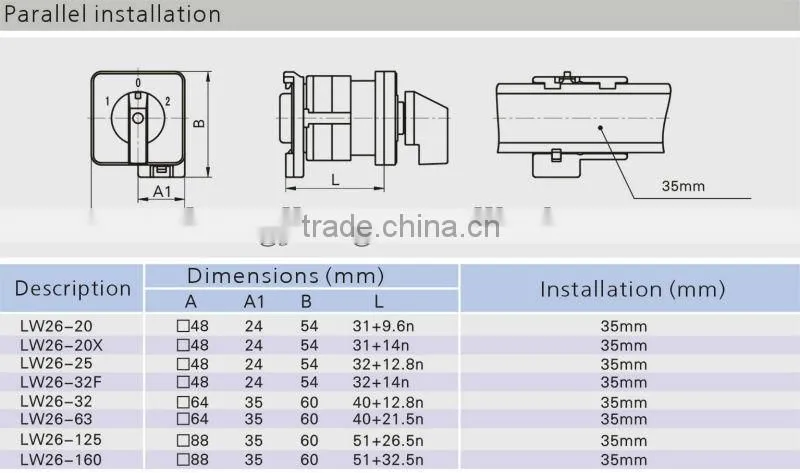

cam switch LW26 (ROHS,CE certificate) with single hole installation

No.	Tech Parameters	requirement
1.	rated voltage	below 440V & DC220
2.	rated current	10A,20A,25A,32A,63A,80A,100A,125A,160A
3.	frequency	AC50HZ
4.	No.of poles	2P,3P,4P
5.	No.of layers	make as required with circuit diagram
6.	panel size	3030mm,4848mm,6464mm,8888mm
7.	colour of handle	black,white,red,grey
8.	Working temperature	-25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C
9.	Working height	≤2,000m
10.	Relative humidity	≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C)
11.	Instalation conditions	polution class III
12.	Mechanical life	0.1*10⁶times
13.	Electrical life	0.03*10⁶times
14.	Operative frequency	120times/hour
15.	transform angle	30°/45°/60°/90°/120°/135°/150°
