Specifications
7 inch monitor with metal case for CNC1. OEM metal shell
2. Powerful metal shell
3. 18 months warranty
4. CE

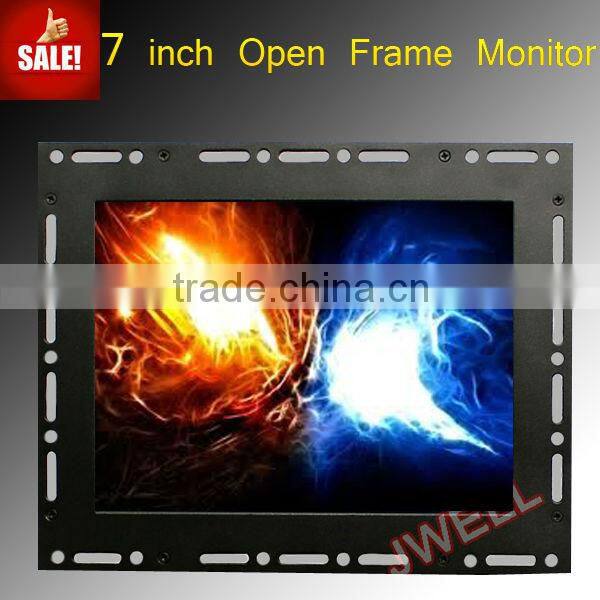

7 inch open frame monitor with all powerful metal shell
Quick Details
Place of Origin:Guangdong, China (Mainland)
Brand Name:JWELL
Model Number:OP-768M
Type:TFT
Application:Indoor
Panel Size:
Max Resolution:800*600
Viewing Angle:170
Pixel Pitch:0.2175x0.2088
Color:16.7 million
Contrast Ratio:500:1
Brightness:400
Response Time:5S
Input Voltage:<20W
Touch screen:Optional
Frame material:Metal / Aluminum
Input:AV,VGA,HDMI,DVI, BNC optional
Aging test:at lest 48 hours
Packaging & Delivery
Packaging Details: | 3-7 days |
Delivery Detail: | 3days |
Specifications

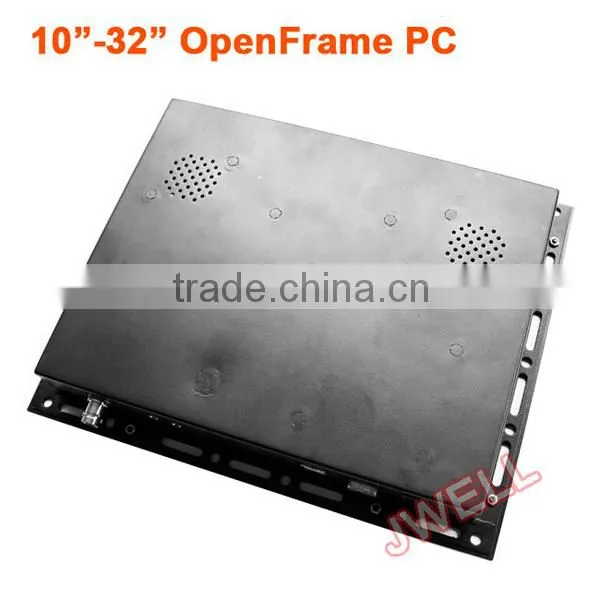

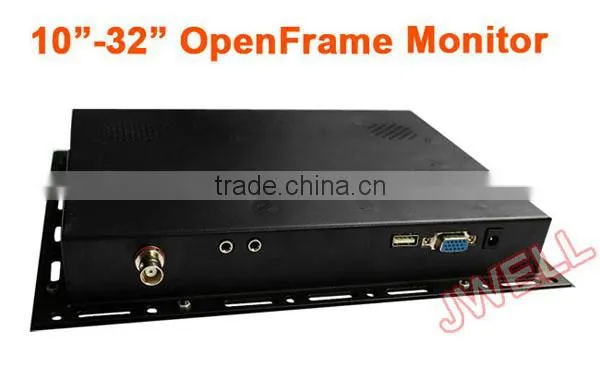

Open frame monitor 8"/9.7"/10"/12"/15 optional
With AV/VGA/HDMI/DVI/TOUCH SCREEN Optional
Metal frame size: 269.6X217.6X35mm
Factory offer Industrial 7" / 8"/ 10"/ 12" / 15" / 17" / 19"/ 22" /
26" / 32" Open frame LCD Monitor with/without Touch screen
Support OEM
Description:
1) 7 inch TFT touch screen monitor
3) Display type: 7" Active Matrix TFT LCD ( 4:3)
4) Active display area:
5) Resolution: 1024 x 768 @ 75Hz max
7) Pixel pitch: 0.1905(W) X 0.1905(H) mm
8) Pixel response time: 12ms
9) Colors: 16.7 million
10) Brightness: 400 cd/m2
11) Contrast: 500:1
12) Viewing angle horizontal (left/right): 170° (85°/85°)
(From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
13) Backlight lamp life hours: 50,000
14) Input video format: Analog RGB, NTSC/PAL/SCAME(AUTO)
15) Touch screen Interface: USB
16) Touch response time Serial/USB: 10.4ms
17) Touch sensitivity: Fixed
18) Operating temperature:-10°C - 60°C
19) Storage temperature:-20°C - 80°C
20) Power Supply: AC 110-240V, DC 12V, 50-60 Hz
21) Power Consumption: <10 W Typ
22) Gift box Weight: 4.5kg
23) Warranty: 1 year
24) Remote control
Specification:
1) 4 wires resistive touch-screen interface with high Sensitivity (USB port)
2) Standard VGA input (15 pin D-SUB/USB) and HDMI input can match with PC, GPS and security systems
3) 2 RCA video input can match with VCD, DVD and camera
4) RGB input
5) Touch-screen for PC display
6) Built-in speaker/amplifier and earphone jack
7) Operating Systems: DOS/Windows 9X, ME, 2K, XP, 7, Vista, NT, CE
/ LINUX / Mac,etc.
| Name | 7 inch open frame monitor |
| Model | OP-768 |
| Description | 7 inch open frame monitor |
| Case/ Bezel color | Black |
| Touch monitor performance | Standard |
| Display type | 4:3 ratio 7 inch active matrix TFT LCD |
| Active display area | mm |
| Native resolution | standard800*600 , 1024*768 for option |
| Sychronization range | 30*80KHz horizontal, 55-75 Hz verical |
| Pixel pitch | 0.264W*0.264H mm |
| Pixel response time rise+fall(typically) | 12ms |
| Plug and play | VESA DDC 1/2B |
| On screen display (OSD) | Remote OSD |
| Brightness | 500:1 |
| Viewing angle horizontal(left/right) | 170 degrees (85/85) |
| From center, CR>=5 Vertical(up/ down) | 160 degrees (70/90) |
| LED backlight life hours | 50,000 |
| Input video format | Analog RGB , CVBS NTSC/PAL (AUTO) |
Touch screen Interface | Serial COM(RS232) or USB |
Touch Response Time Serial/USB | 10.4ms |
| Touch sensitivity | Fixed |
| Touch pen hitting life | >=1,000,000 times |
| Monitor dimensions | mm |
| Shipping carton dimensions | mm |
| Provider weight monitor/ shipping | 4.5kg |
| Power supply | External:85-256VAC,50-60Hz |
| Power consumption | <20W typ |
| Temperature range | Operation: 0-50 degrees, storage:-20- -80 degrees |
| Relative humidity non condensing | Operation:10%-90%, storage 5%-90% |
| Warranty | 18 months |
| Agency Approvals | FCC,CE,RoHS |
| Main key word | open frame monitor, open frame touch screen |
| Item | open frame touch screen monitor |
| Open frame | Powerful enough to fit your machine |
Accessories
1. USB cable
2. VGA cable
3. Remote controller
4. Adapter
5. Software CD
6. English user manual
7. Metal Case
8. Touch pen
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confimation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 12 months warranty for items
