50mm2 Electrical Welding Cable

50mm2 Electrical Welding Cable photo-1

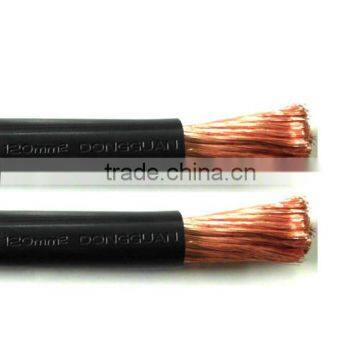

50mm2 Electrical Welding Cable photo-2

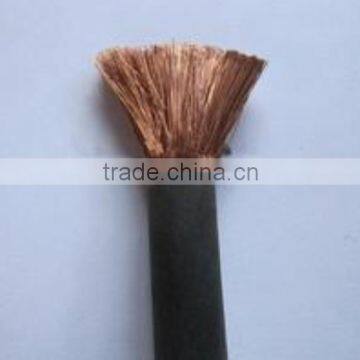

50mm2 Electrical Welding Cable photo-3

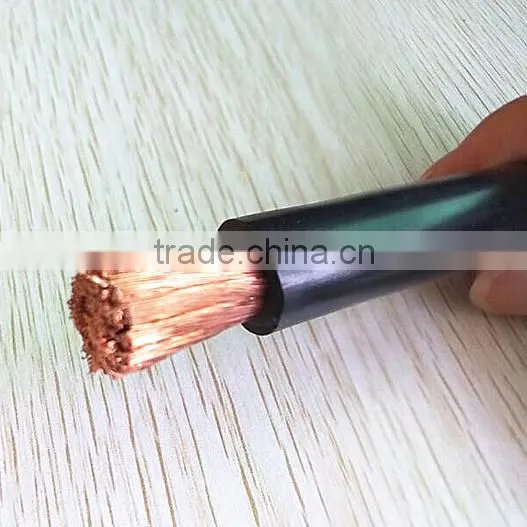

50mm2 Electrical Welding Cable photo-4

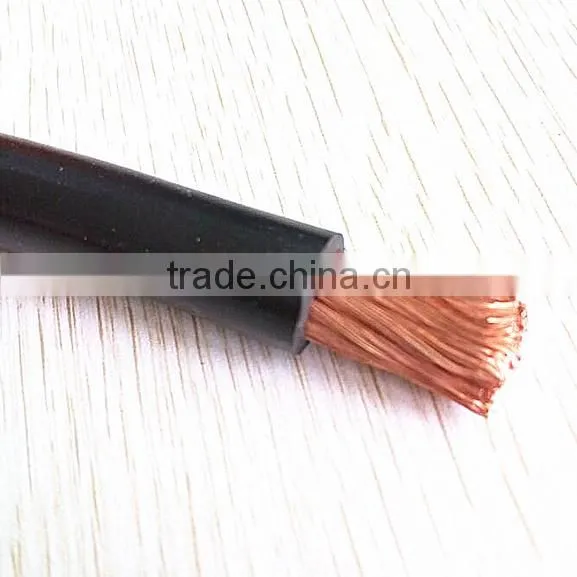

50mm2 Electrical Welding Cable photo-5
US$ 0.13 - 30 MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
San Heng
Model Number:
welding cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or as yur request
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name San Heng
Model Number welding cable
Type Insulated
Application Other, construction, welding machine
Conductor Material Copper
Conductor Type Other, Stranded / Solid
Insulation Material Rubber

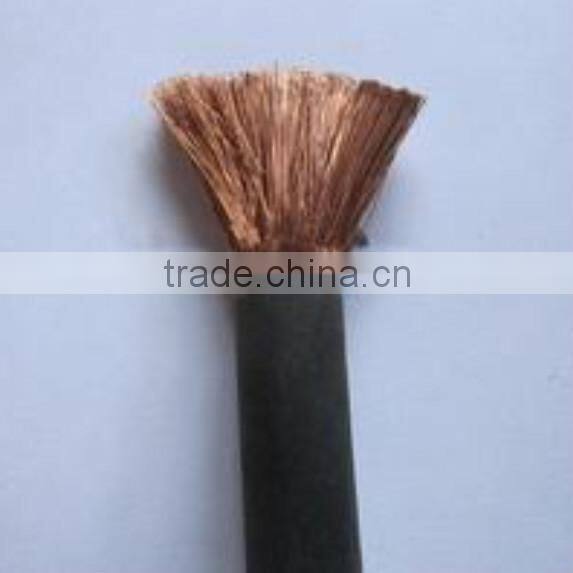

      50mm2 electrical welding cable



The welding cable can be used in the connectors of electric weld and plier of the electrical welding whose toward earth



1.The welding cable can be produced according to the standard ISO-9001



2.Specific Property for Using



(1) The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage is not more than AC 200V and the pulsed DC peak value is 400V.



(2) The long-time permissible working temperature of cable is not more than 65C



3. Name and IEC Standard



(1) Rubber and sheathed welding cable 245IEC 81



(2) Rubber sheathed welding cable 45IEC82, which is made of the composite materials.



(3) Model Names and work in the temperature



Model

Name

Working temperature of core

<(C)

YH

Natural rubber sheath for welding cable

65



(4) specifications, size weight and technical data(see table2)



Section

(mm²)

Core/No.dia

(mm)

Thickness (mm)

OD

(mm)

20 °Cconductor resistance<

(Ω/km)



Reference weight

(kg/km)

10

322/0.2

0.8

7.5-9.7

1.91

146

16

513/0.2

2.0

9.2-11.5

1.16

218.9

25

798/0.2

2.0

10.5-13.0

0.758

316.6

35

1121/0.2

2.0

11.5-14.5

0.538

426

50

1596/0.2

2.2

13.5-17.0

0.379

592.47

70

2214/0.2

2.4

15.0-19.5

0.268

790

95

2997/0.2

2.6

17.0-22.0

0.198

1066.17

120

1702/0.3

2.8

19.0-24.0

0.161

1348.25

150

2135/0.3

3.0

21.0-27.0

0.129

1678.5

185

1443/0.4

3.2

22.0-29.0

0.106

1983.8







50mm2 electrical welding cable50mm2 electrical welding cable

50mm2 electrical welding cable50mm2 electrical welding cable

50mm2 electrical welding cable50mm2 electrical welding cable

50mm2 electrical welding cable

50mm2 electrical welding cable

50mm2 electrical welding cable

50mm2 electrical welding cable

 50mm2 electrical welding cable50mm2 electrical welding cable
