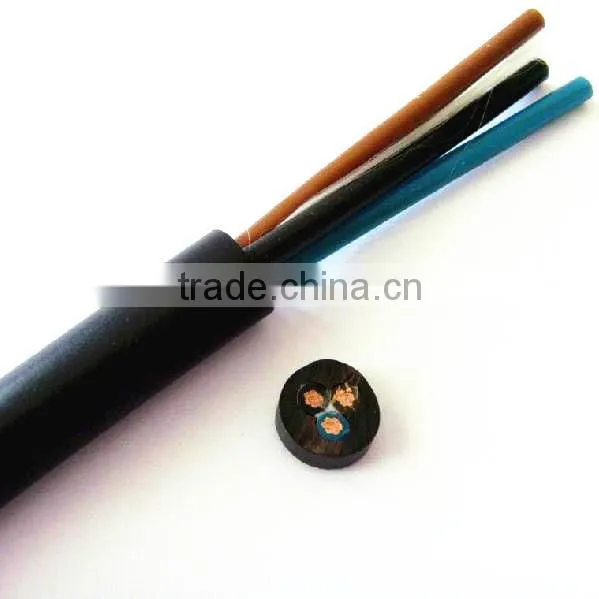

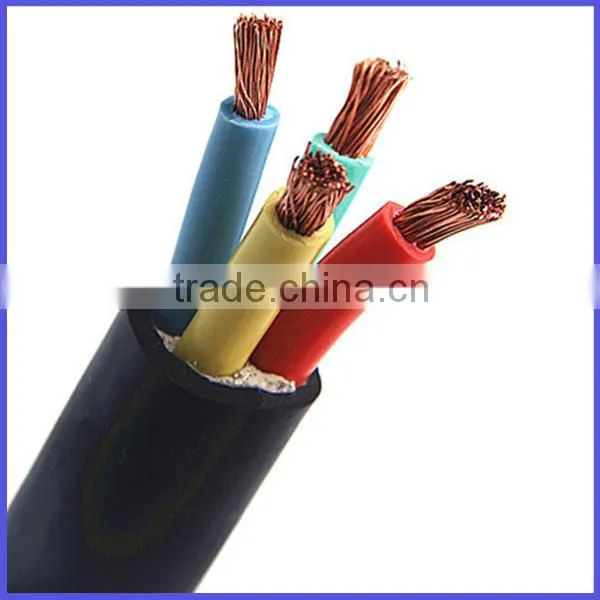

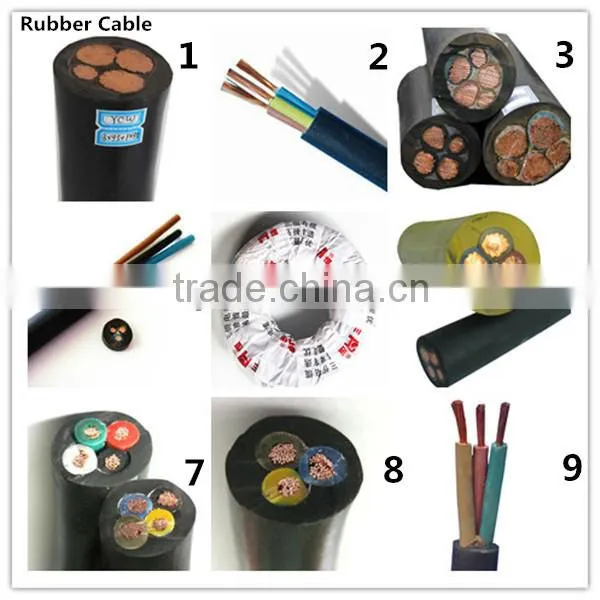

300/500V EPR rubber cable H05RR-F
- 1000 Kilometer / Kilometers per Month
- Qingdao port or as yur request
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | sanheng | Model Number: | H05RR-F |
Insulation Material: | Rubber | Type: | Low Voltage | Application: | Other, Industrial, equipment |
Conductor Material: | Copper | Jacket: | Rubber |
Product Description
300/500V EPR rubber cable H05RR-F
1.Rubber Cable Working Conditions:
1.Rated voltage :300/500(YZ type),450/750V(YC type)
2.The long-term working temperature of conductor should be no longer than 65C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
2.Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
3.Specification
Type | Name |
YQ | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty |
YQW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty |
YZ | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty |
YZW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty |
YC | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty |
YCW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty |
YH | NR/SBR rubber sheathed arc welding cable |
THF | Neoprene rubber sheathed arc welding cable |
Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors
and contaminated by the oil.
4.Application:
Light rubber cable, used for easy-duty and medium mechanical loads in dry areas. Suitable for household, kitchens, offices and workshops (for inst. tailoring) for smaller electrical devices (washing-machines, vacuum-cleaners, irons, household appliances, soldering sets etc.) and mobile devices operating in heavier conditions, such as light industrial and agricultural machines. Not suitable for permanent outdoor use. Ozone-resistant, allowed contact with oils and greases.
5.Rubber Cable Specification Range:
Type |
Rated Voltage |
Core Number | Nominal Cross-section Area |
YQ,YQW | 300/300 | 2.3 | 0.3~0.5 |
YZ,YZW | 300/500 | 2.3.4.5.3+1 | 1.5~6 |
Light Rubber Cable Demension: 2x0.75, 2x1.0, 2x1.5, 2x2.5
3G0.75, 3G1.0, 3G1.5, 3G2.5
4G0.75, 4G1.0, 4G1.5, 4G2.5
5G1.5, 5G2.5
G = With protective yellow/green conductor
x = Without protective yellow/green conductor

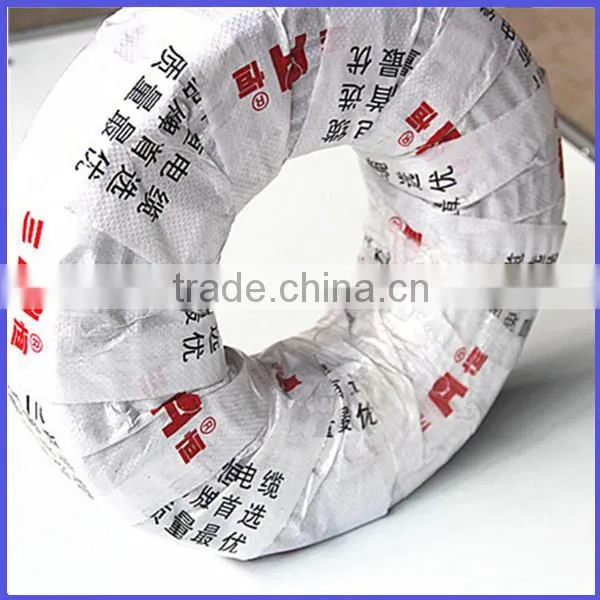

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
1.Q:Are you a factory or trading company?
A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A: Our factory has gained BV,SGS,CCC,ISO, certification.
