We take quality management as the foundation. The company has passed the identification of ISO9001 Quality Management System, we create the famous brand with international comperitiveness by modernized management, advanced technology, first-rate mailtechnology and technical force.

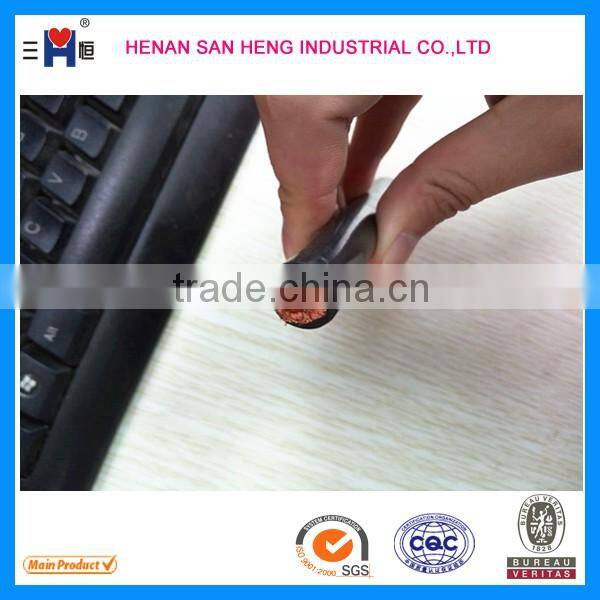

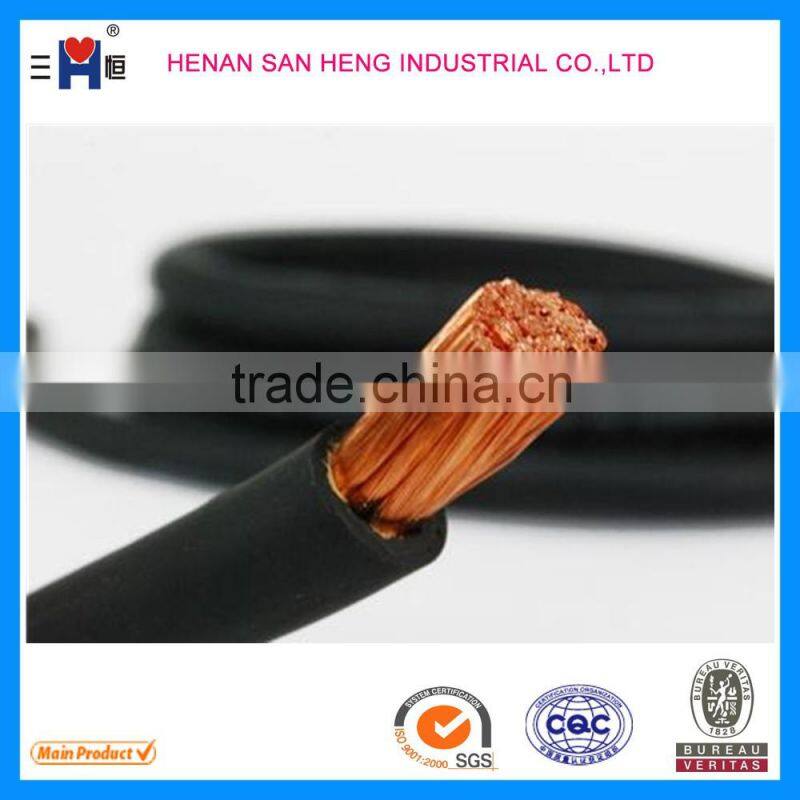

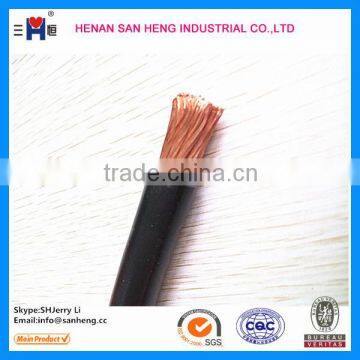

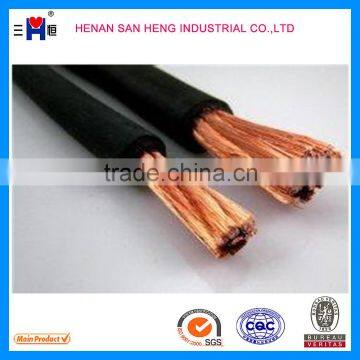

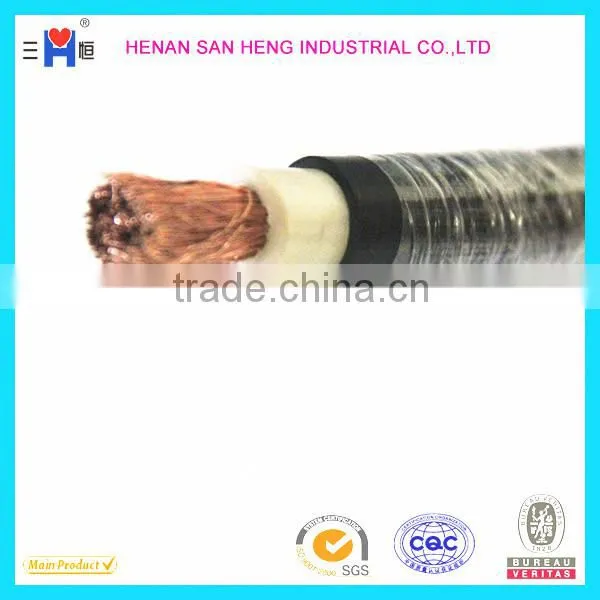

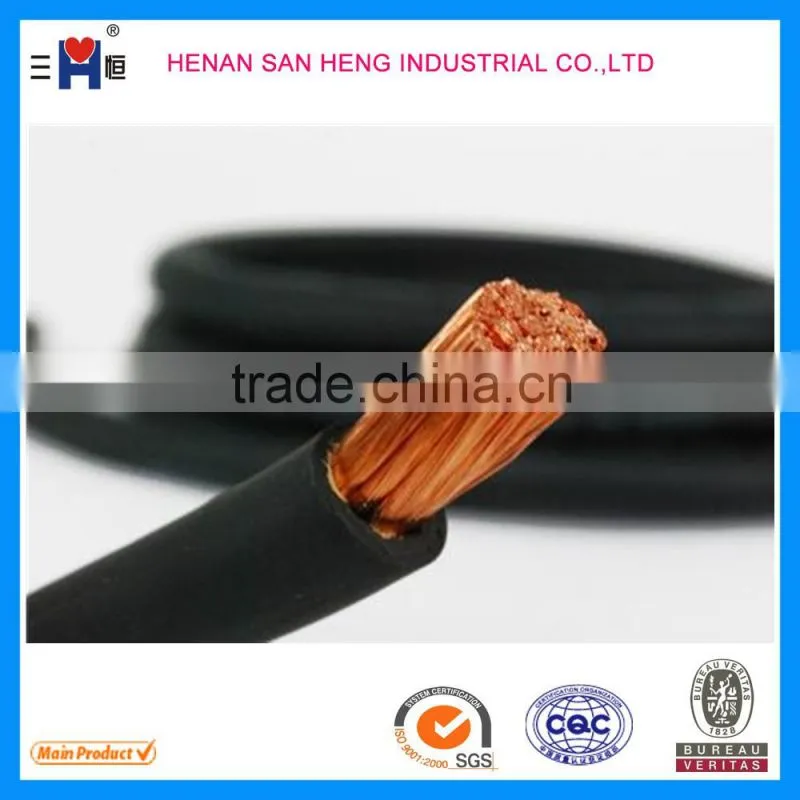

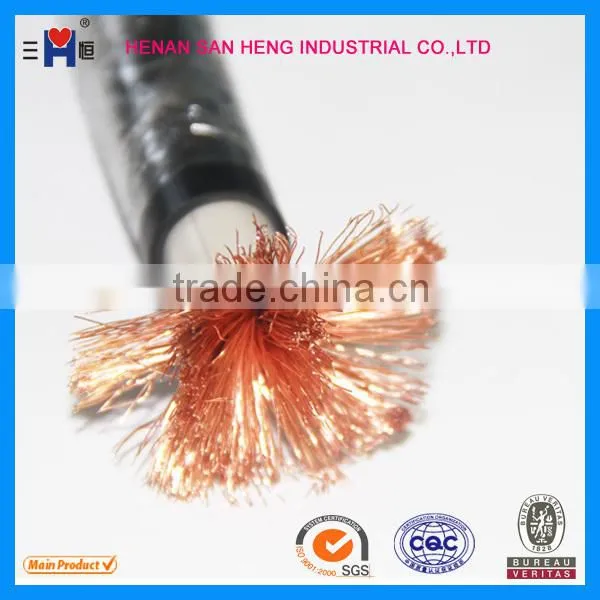

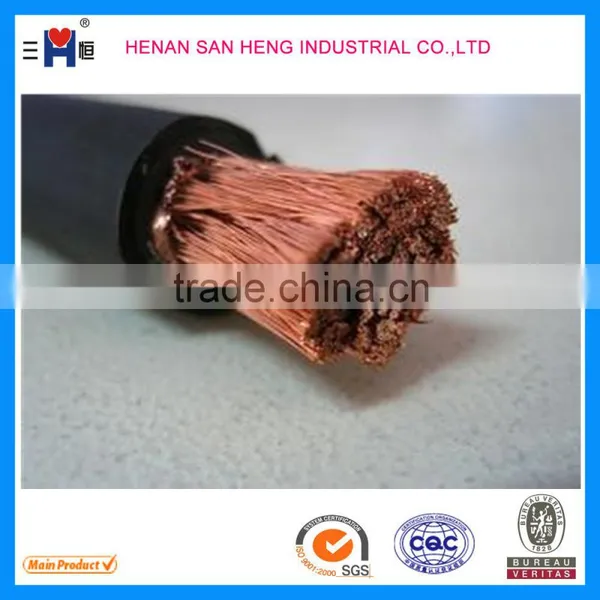

Welding Cable 120mm2 with PVC Insulation
Specifications
Application
This flexible cable is used in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Standard
GB/T 5023, IEC 60227
Technical Data
Conductor: Class 5 flexible plain copper conductors to GB/T 3956
Insulation: Rubber
Sheath: (Rubber)
Sheath Colour: Black or White
Temperature Rating: 0°C to +70°C
Minimum Bending Radius: 6 x overall diameter
Core Identification: Single Core
Number of cores x Nominal Cross Section (mm2) | Sheath | Nominal Overall Diameter (mm) | Nominal Cable Weight (Kg/Km) | Max Conductor | |||
Min | Max | Cu | Tin-Cu | ||||
10 | Rubber | 1.8 | 7.5 | 9.7 | 159 | 1.91 | 1.95 |
16 | Rubber | 2 | 8.8 | 11 | 239 | 1.16 | 1.19 |
25 | Rubber | 2 | 10.1 | 12.7 | 334 | 0.758 | 0.78 |
35 | Rubber | 2 | 11.4 | 14.2 | 439 | 0.536 | 0.552 |
50 | Rubber | 2.2 | 13.2 | 16.5 | 610 | 0.379 | 0.39 |
70 | Rubber | 2.4 | 15.3 | 19.2 | 836 | 0.268 | 0.276 |
95 | Rubber | 2.6 | 17.1 | 21.4 | 1098 | 0.198 | 0.204 |
120 | Rubber | 3 | 19 | 24 | 1399 | 0.161 | 0.164 |
150 | Rubber | 3.2 | 21 | 27 | 1737 | 0.129 | 0.132 |

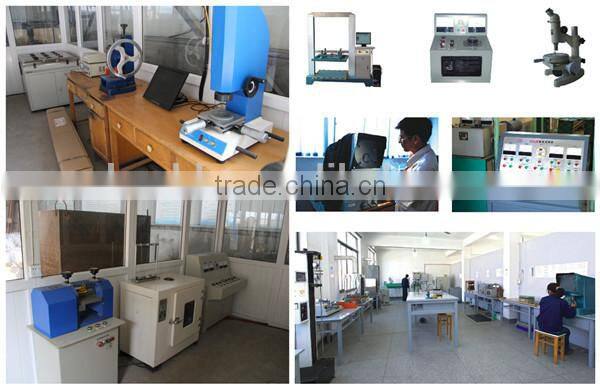

1.The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
2.The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
