rubber insulation material and construction application cable

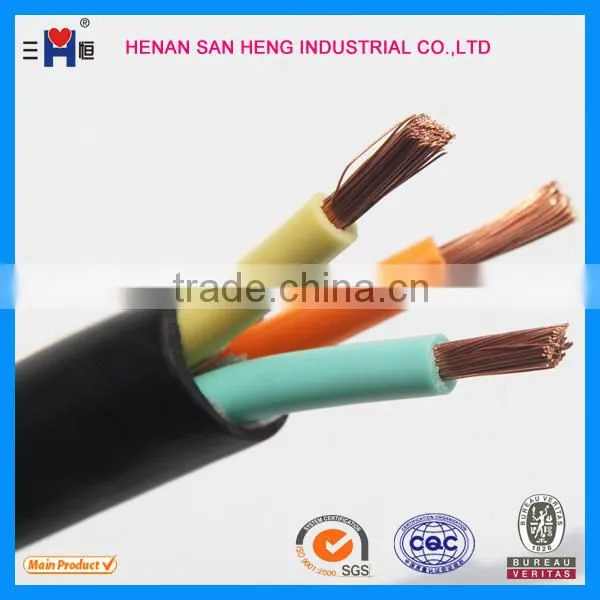

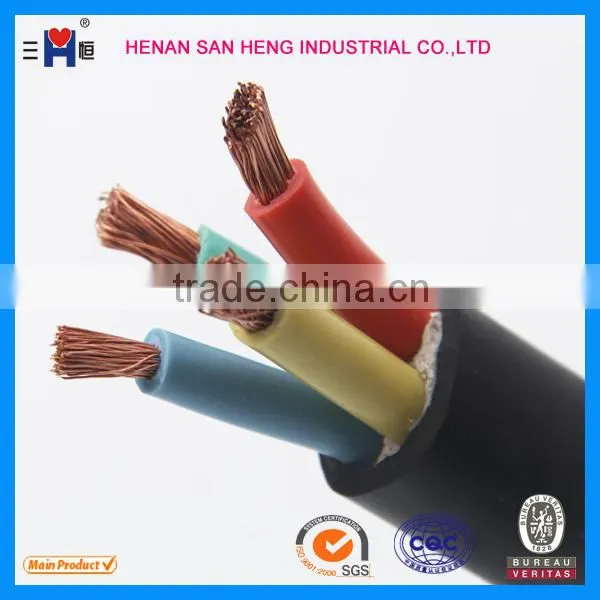

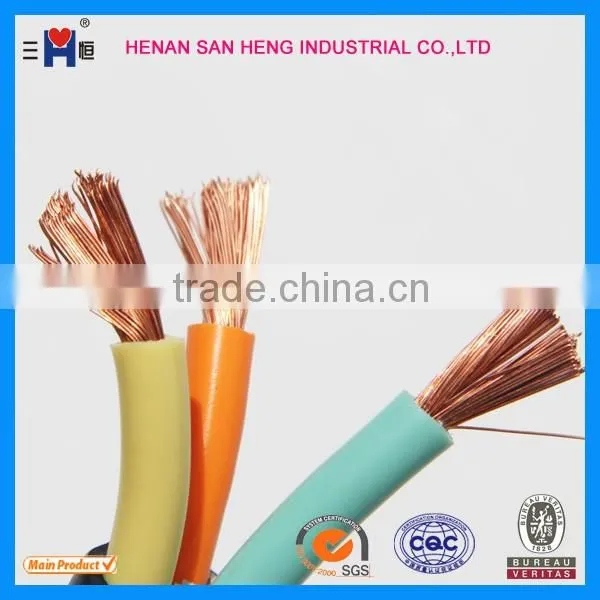

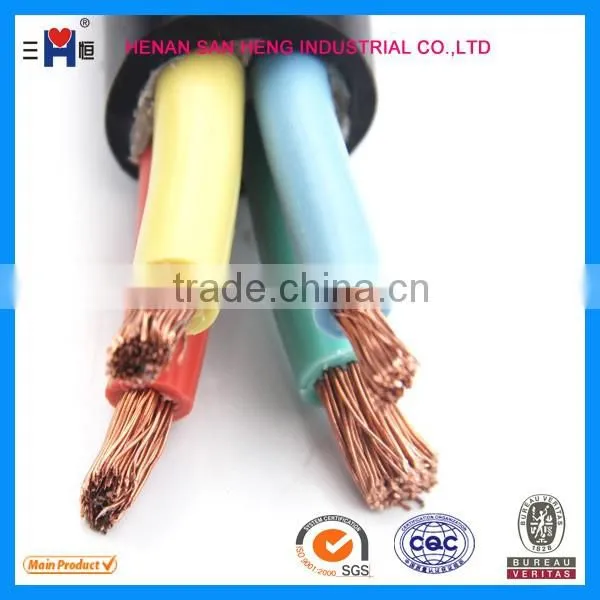

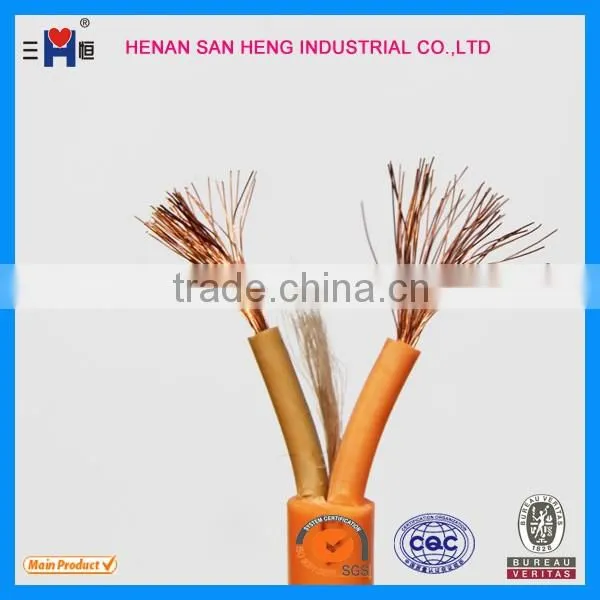

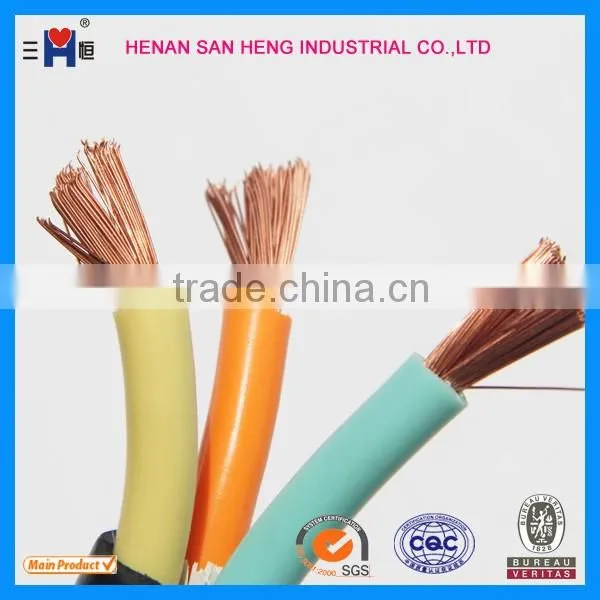

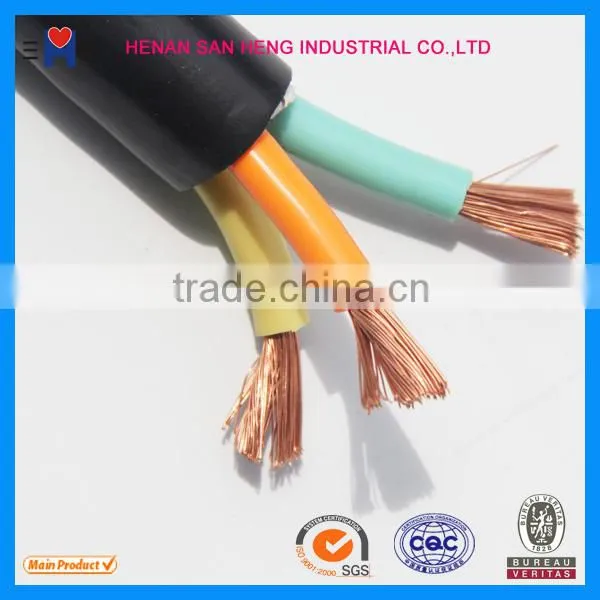

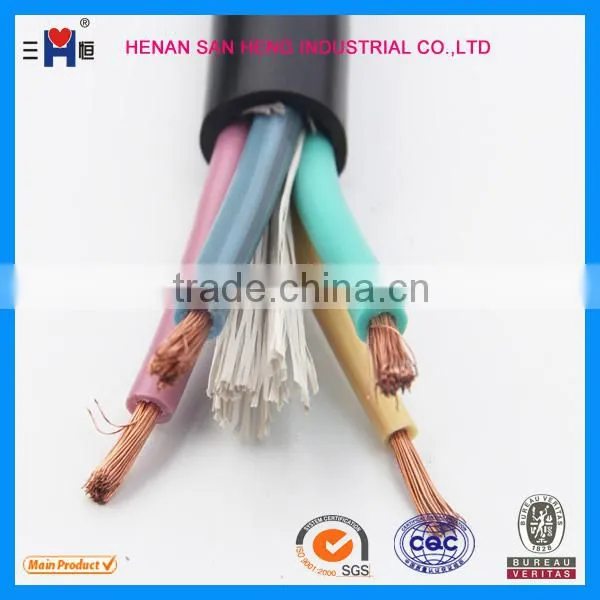

Specifications H07RN-F multi core flexible rubber cable manufacturer
1) Copper Rubber cable.
2) Meeting IEC, VDE, EN standard, widely used
3) Excellent performance and competitive price
Standard rubber insulation material and construction application cable
IEC 60245
Application of rubber insulation material and construction application cable
rubber insulation material and construction application cable is used for connecting the electrode to the welding machine.
Product Description rubber insulation material and construction application cable
1) Nominal area: 10~185mm2
2) Conductor: class 5 tinned or plain copper wire
3) No. of cores: 1
4) Insulation: rubber compound, PCP
5) The products available include:
60245IEC 81: rubber sheathed arc welding electrode cable
60245IEC 82: polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable
Technical Parameters rubber insulation material and construction application cable
Sectional Area |
Max. wire dia. of conductor |
Total thickness of sheath |
Avg. overall dia. (mm) |
Approx. weight (kg/km) |
Max. d.c. resistance at 20°c (Ω/km) |
|||
mm2 |
mm |
mm |
Min. |
Max. |
IEC81 |
IEC82 |
Plain copper |
Tinned coppner |
10 |
0.21 |
1.8 |
7.5 |
9.7 |
146 |
154 |
1.91 |
1.95 |
16 |
0.21 |
2.0 |
8.8 |
11.0 |
219 |
231 |
1.21 |
1.24 |
25 |
0.21 |
2.0 |
10.1 |
12.7 |
317 |
312 |
0.780 |
0.795 |
35 |
0.21 |
2.0 |
11.4 |
14.2 |
426 |
440 |
0.554 |
0.565 |
50 |
0.21 |
2.2 |
13.2 |
16.5 |
593 |
611 |
0.386 |
0.393 |
70 |
0.21 |
2.4 |
15.3 |
19.2 |
790 |
818 |
0.272 |
0.277 |
95 |
0.21 |
2.6 |
17.1 |
21.4 |
1067 |
1103 |
0.206 |
0.210 |
120 |
0.35 |
2.8 |
19.0 |
24.0 |
1349 |
1393 |
0.161 |
0.164 |
150 |
0.35 |
3.0 |
21.0 |
27.0 |
1679 |
1699 |
0.129 |
0.132 |
185 |
0.45 |
3.2 |
22.0 |
29.0 |
1984 |
2021 |
0.106 |
0.108 |
rubber insulation material and construction application cable
I. Specifications
1.Conductor: Tinned Copper, Copper or CCA Conductor
2.Rubber Insulated Welding Cable 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm
welcome to inquire the rubber insulation material and construction application cable.
Company Profile
Sanheng industrial CO.,Ltd,is one of the most professional cable &wire producer under modern enterprise system in China,which was founded in 2000,integrating production and sales.Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerialbundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe.
Our advantages
1.Good cost-control system, with highly-competitive prices.
2.Strong and Professional R&D team to meet your specific needs.
3.Fast delivery &reliable products are always the reason why you choose us.
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
