Rubber sheathed copper welding cable/wire (YH YHF)
- 10000 Meter / Meters per Month
- Qingdao port or as yur request of Rubber sheathed copper welding cable/wire (YH YHF)
- T/T Credit Card PayPal
-
PVC/Rubber insulation single 25mm2 35mm2 50mm2 75mm2 electric welding cable IEC60245
-
25 mm2 50mm2 70mm2 Electric Black Rubber Weld Core Welding Cable copper aluminum welding cable connector
-
750V super flexible Single Tinned Copper Core Welding Cable
-
IEC standard 25 sq mm rubber cable flexible welding machine cable multicore flexible cables
-
underwater electrical welding cable 0.6/1kv for welding machine using
-
Single Core Welding Machines Used Super Flexible Electric Welding Cables
Product Details
| Place of Origin: | Henan, China | Brand Name: | San Heng | Model Number: | H01N2-F/H01N2-E |
| Type: | Insulated | Application: | Other, construction, welding machine | Conductor Material: | Copper |
| Conductor Type: | Other, Stranded / Solid | Insulation Material: | Rubber |
Product Description

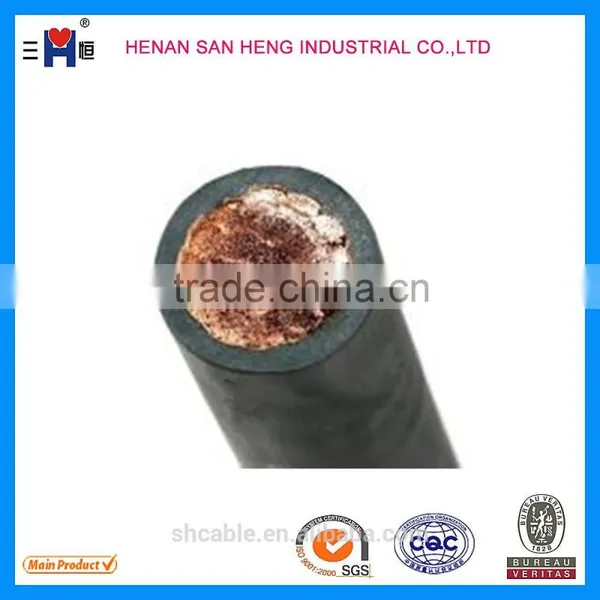

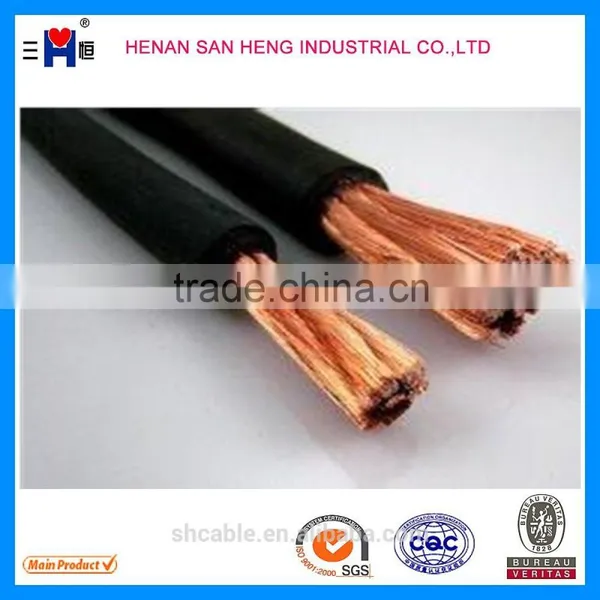

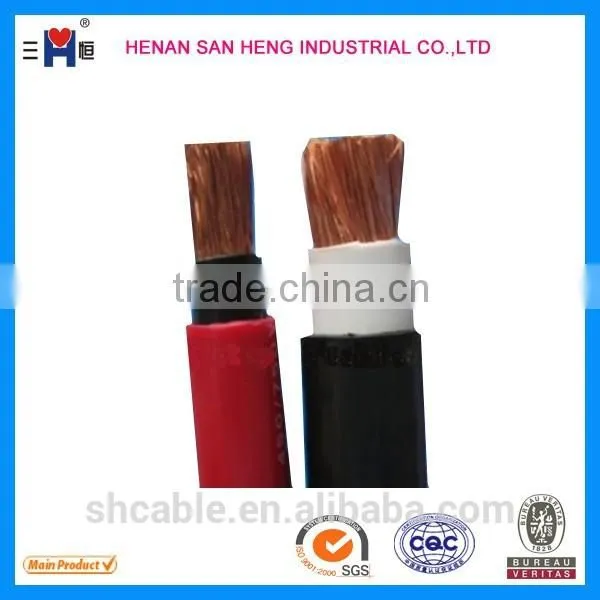

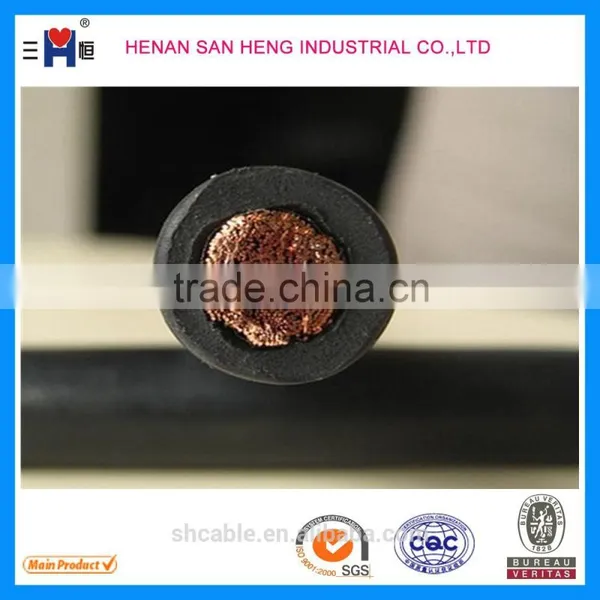

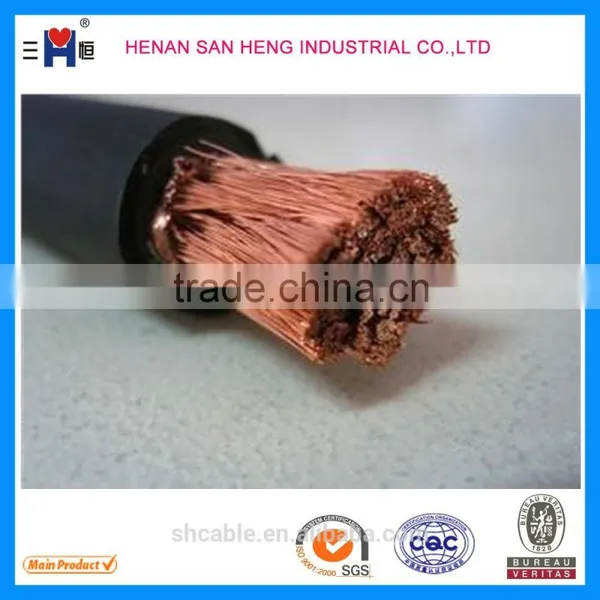

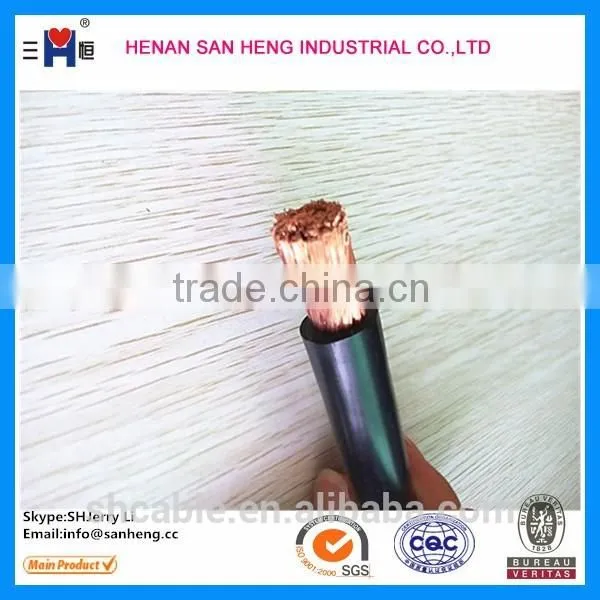

Rubber sheathed copper welding cable/wire (YH YHF)
Rubber sheathed copper welding cable/wire (YH YHF)
The welding cable can be used in the connectors of electric weld and plier of the electrical welding whose toward earth
1.The welding cable can be produced according to the standard ISO-9001
2.Specific Property for Using
(1) The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage is not more than AC 200V and the pulsed DC peak value is 400V.
(2) The long-time permissible working temperature of cable is not more than 65C
3. Name and IEC Standard
(1) Rubber and sheathed welding cable 245IEC 81
(2) Rubber sheathed welding cable 45IEC82, which is made of the composite materials.
(3) Model Names and work in the temperature
Model | Name | Working temperature of core <(C) |
YH | Natural rubber sheath for welding cable | 65 |
specifications and technical data of Rubber sheathed copper welding cable/wire (YH YHF)
Section (mm²) | Core/No.dia (mm) | Thickness (mm) | OD (mm) | 20 °Cconductor resistance< (Ω/km)
| Reference weight (kg/km) |
10 | 322/0.2 | 0.8 | 7.5-9.7 | 1.91 | 146 |
16 | 513/0.2 | 2.0 | 9.2-11.5 | 1.16 | 218.9 |
25 | 798/0.2 | 2.0 | 10.5-13.0 | 0.758 | 316.6 |
35 | 1121/0.2 | 2.0 | 11.5-14.5 | 0.538 | 426 |
50 | 1596/0.2 | 2.2 | 13.5-17.0 | 0.379 | 592.47 |
70 | 2214/0.2 | 2.4 | 15.0-19.5 | 0.268 | 790 |
95 | 2997/0.2 | 2.6 | 17.0-22.0 | 0.198 | 1066.17 |
120 | 1702/0.3 | 2.8 | 19.0-24.0 | 0.161 | 1348.25 |
150 | 2135/0.3 | 3.0 | 21.0-27.0 | 0.129 | 1678.5 |
185 | 1443/0.4 | 3.2 | 22.0-29.0 | 0.106 | 1983.8 |
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
1. Quality assurance
2. Professional production
3. Long service life
4. Customization
5. ISO 9001/CE/RoHS/CCC approved
6. Factory price, because we can make some raw material
7. Short delivery time
8. Factory direct sales, reasonable price
9. 15 years experience.
