Copper Cable With PVC Sheath
US$ 0.1 - 56
MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
San Heng
Model Number:
H07V-K
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or by your request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
H05V-U 4mm Thw Meaning of Solid Cable bv CableUS$ 0.1 - 2.5MOQ: 8000 Meters -
H03VH-H PVC Insulated Flexible Cord Parallet Twin Copper WireUS$ 0.1 - 2.5MOQ: 5000 Meters
-
16mm Electrical CableUS$ 0.1 - 25MOQ: 1 Kilometer
-
Electrical Wire Cables 2.5mmUS$ 0.1 - 25MOQ: 1 Kilometer
-
House Wiring Electrical 2.5mmUS$ 0.1 - 25MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
San Heng
Model Number
H07V-K
Type
Insulated
Application
Other, Household, Residential/Lightning/Home
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC

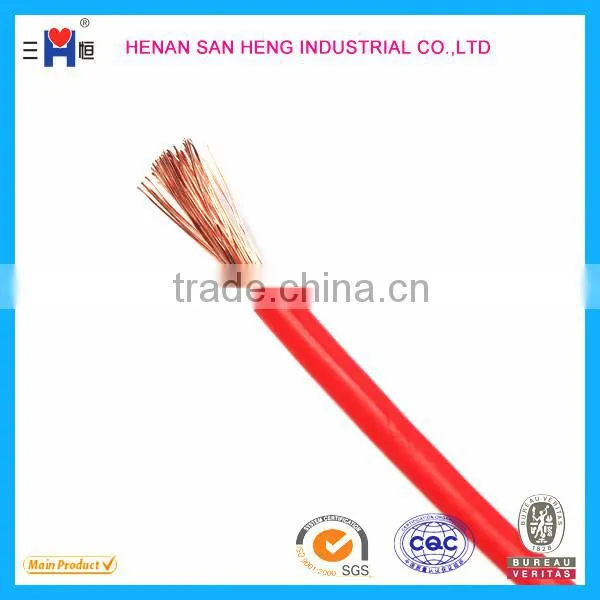

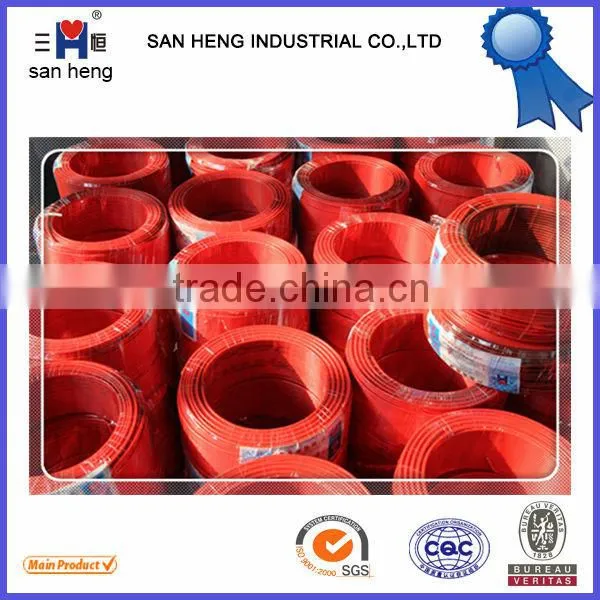

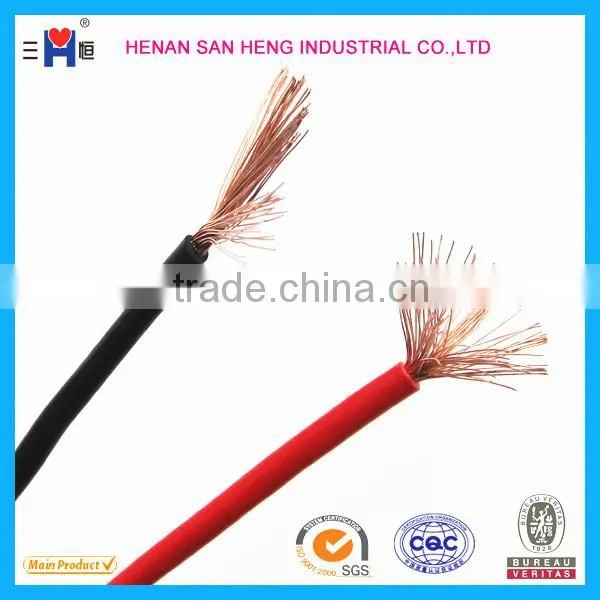

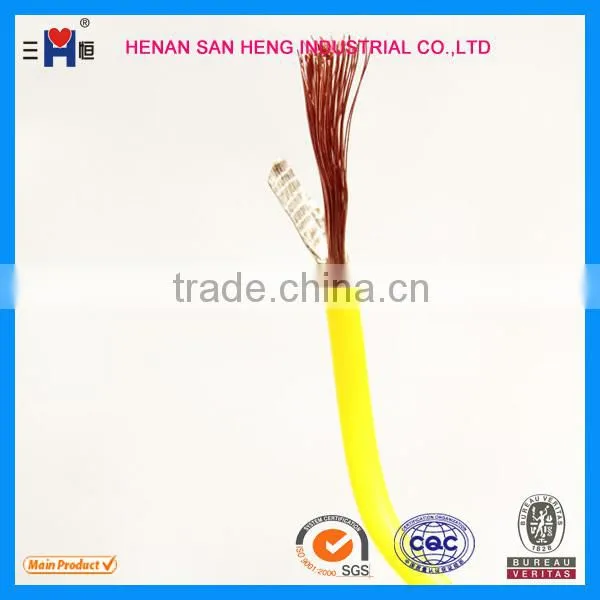

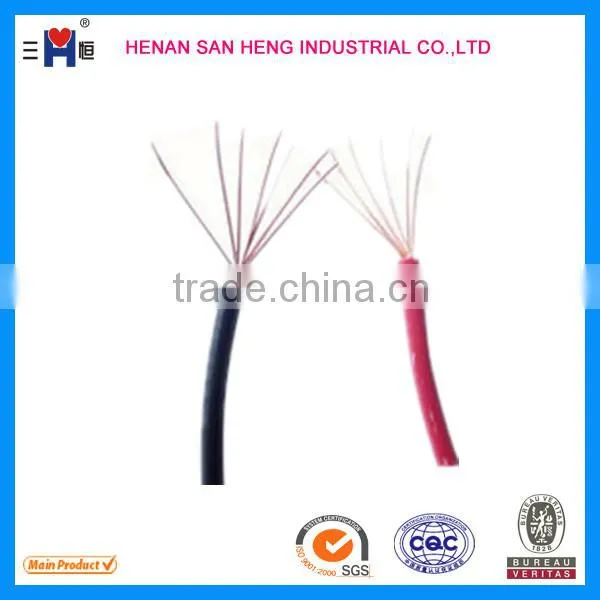

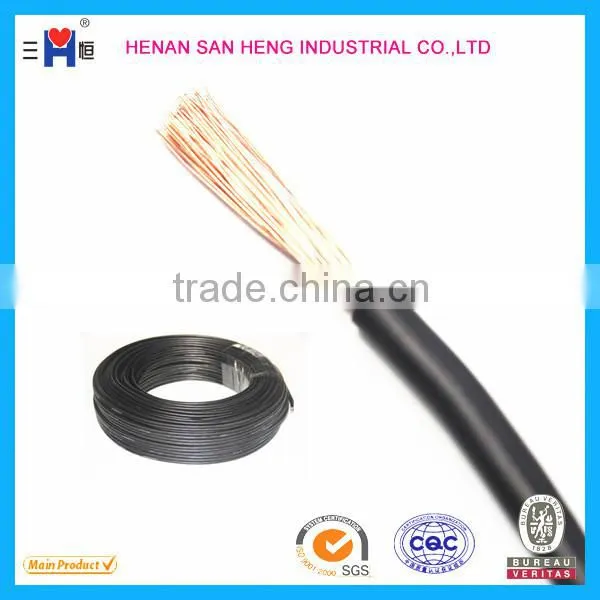

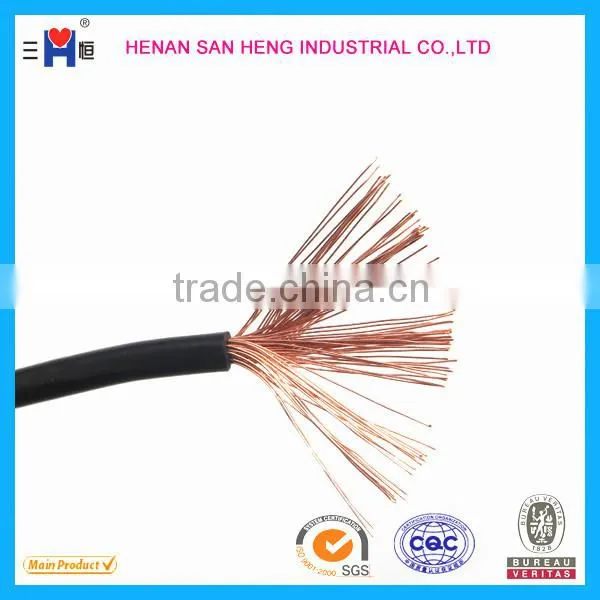

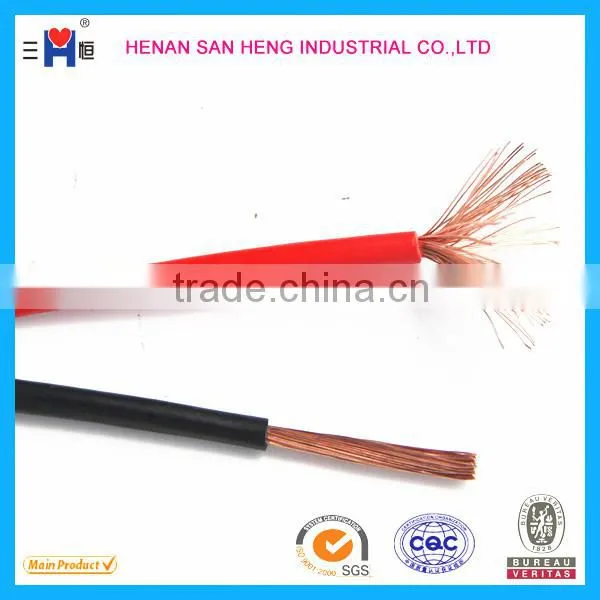

Copper Cable with PVC Sheath
Specifications:
Color: Black, white, yellow,green, red, blue, etc, as you like.
Insulation: PVC.
Size: 0.5--120mm2, or as you required
Packing: Carton, plastic reel, paper reel, reel.
Conductor: Copper or al or CCA or CCS or SS. Any materail as you like
Operation temperature:For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.
Type 08 will allow 105°C.
Size:
| 60227IEC02(RV)450/750V | |||
| Nominal Area mm² |
Insulate thickness mm |
Biggest Diameter mm |
Least insulates resistance MΩ*KM |
| 1.5 | 0.7 | 3.4 | 0.01 |
| 2.5 | 0.8 | 4.1 | 0.009 |
| 4 | 0.8 | 4.8 | 0.007 |
| 6 | 0.8 | 5.3 | 0.006 |
| 10 | 1 | 6.2 | 0.0056 |
| 16 | 1 | 8.1 | 0.0046 |
| 25 | 1.2 | 10.2 | 0.0044 |
| 35 | 1.2 | 11.7 | 0.0038 |
| 50 | 1.4 | 13.9 | 0.0037 |
| 70 | 1.4 | 16 | 0.0032 |
| 95 | 1.6 | 18.2 | 0.0032 |
| 120 | 1.6 | 20.2 | 0.0029 |
| 150 | 1.8 | 22.5 | 0.0029 |
| 185 | 2 | 24.9 | 0.0029 |
| 240 | 2.2 | 28.4 | 0.0028 |
| 60227IEC06(RV)300/500V | |||
| 0.5 | 0.6 | 2.5 | 0.013 |
| 0.75 | 0.6 | 2.7 | 0.011 |
| 1 | 0.6 | 2.8 | 0.01 |
