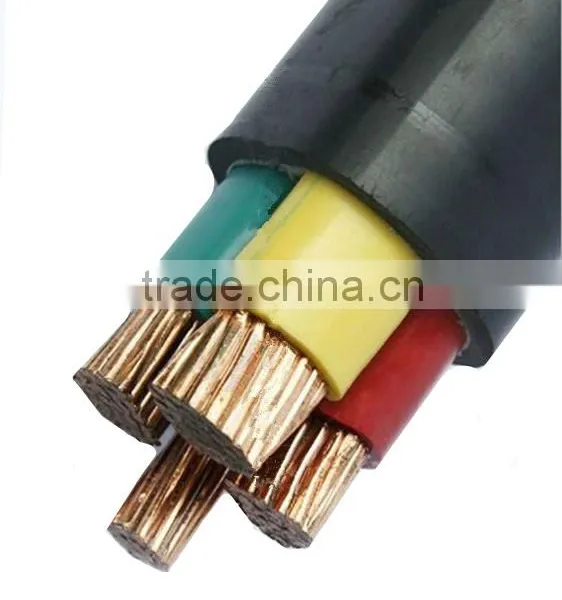

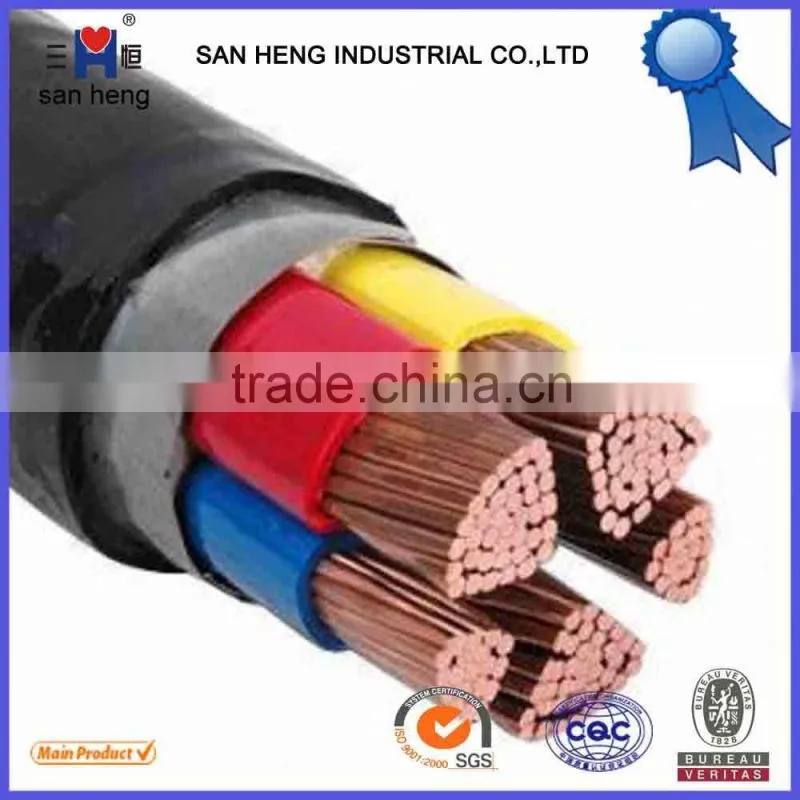

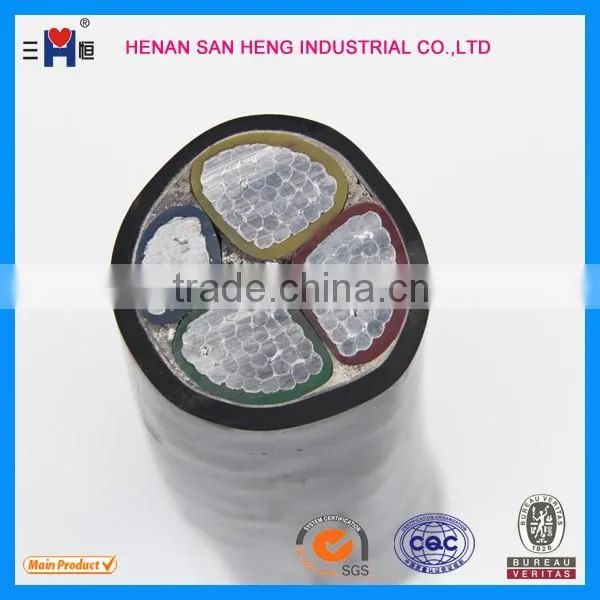

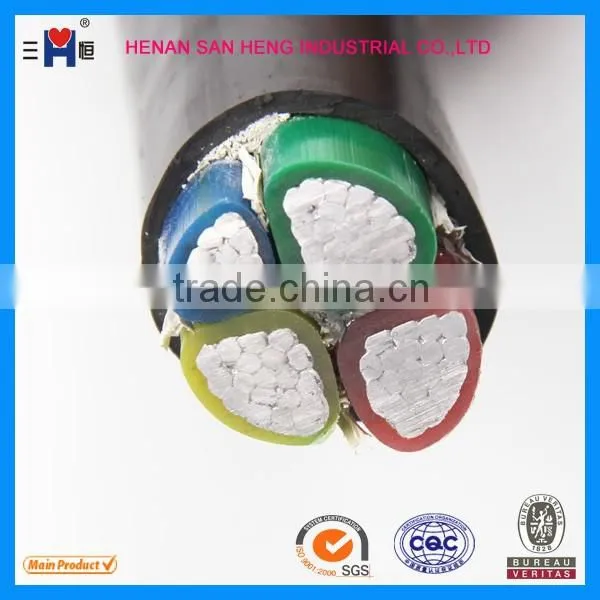

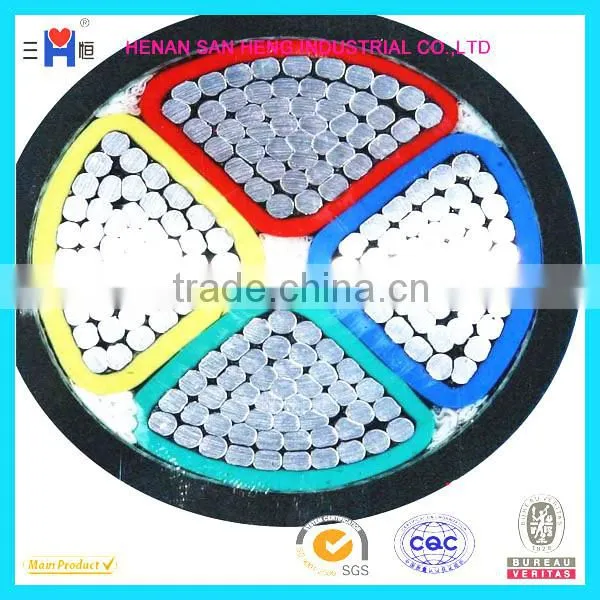

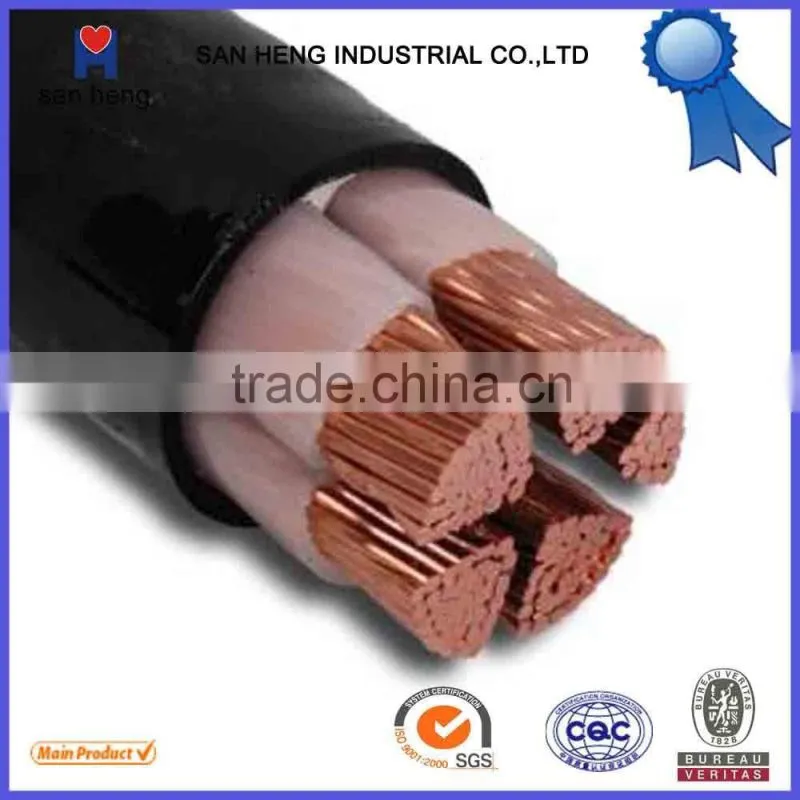

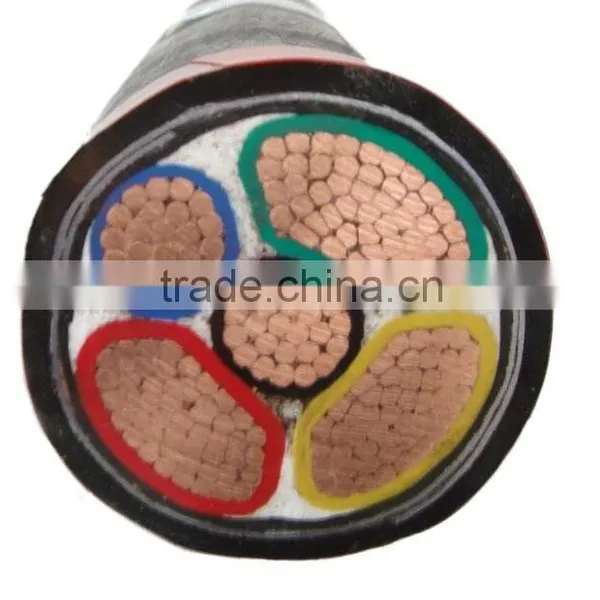

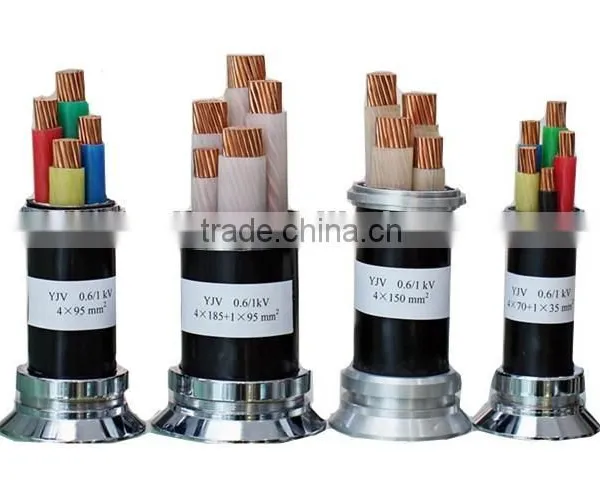

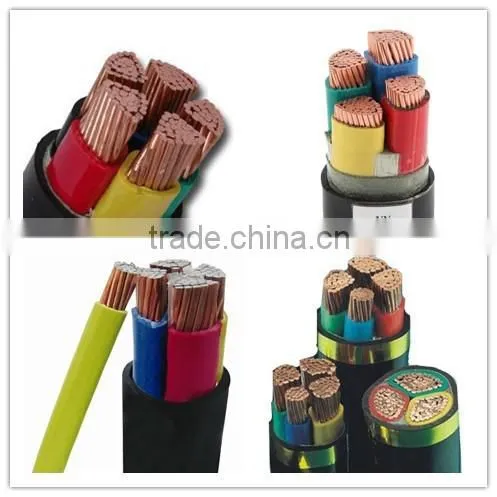

copper / aluminum cable YJV YJLV VV VLV all sizes cable
1.MAIN CHARACTERISTICS:
1. Twin core PVC insulated
2. AC 450/750V
3. 0.75-240mm²
4. rated temperature: 65~75°C
5. CCC IEC ISO (IEC 60227-1997, IEC 227-1979)
6. Design and manufacture according to the requirements of customers.

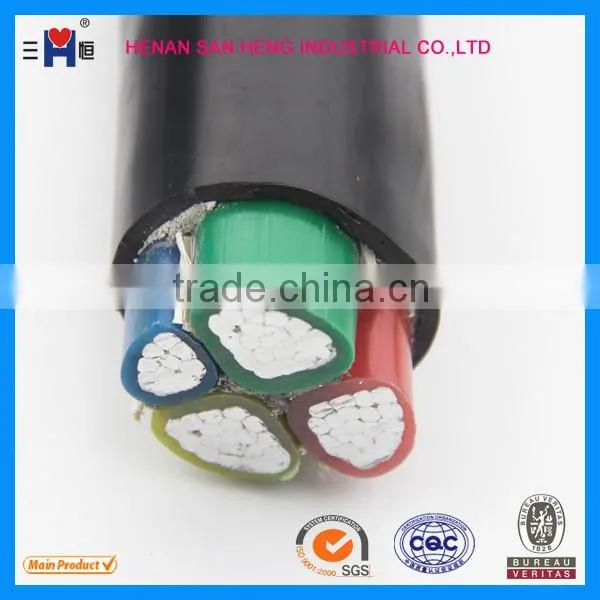

copper / aluminum cable YJV YJLV VV VLV all sizes cable
Type |
Designation |
Application |
VV |
Copper conductor ,PVC insulated ,PVC sheathed power cable |
For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
VLV |
Aluminium conductor ,PVC insulated ,PVC sheathed power cable |
|
VY |
Copper conductor, PVC insulated, PE sheathed power cable |
|
VLY |
Aluminium conductor ,PVC insulated ,PE sheathed power cable |
|
VV22 |
Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
VLV22 |
Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV23 |
Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable |
|
VLV23 |
Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
|
VV32 |
Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable
|
For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
VLV32 |
Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV33 |
Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
|
VLV33 |
Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |
|
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied | ||
4. Nominal Cross-sectional Areas:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
5. Production Range:
single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
core: 1 core, 2 core, 3 core, 4 core, 5 core, 3+1 core, 3+2 core, 4+1 core.
6. Operating Characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The ambient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter.
We also can manufacture many other specifications, if you have interest, welcome your enquiry! Everything we do is trying to make your business more successful.
We are at your service
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality product HT NOW !

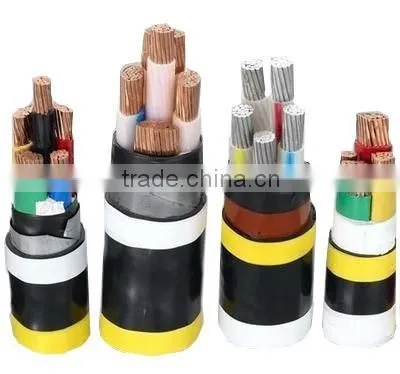

copper / aluminum cable YJV YJLV VV VLV all sizes cable
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
1.Q:Are you a factory or trading company?
A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A: Our factory has gained BV,SGS,CCC,ISO, certification.

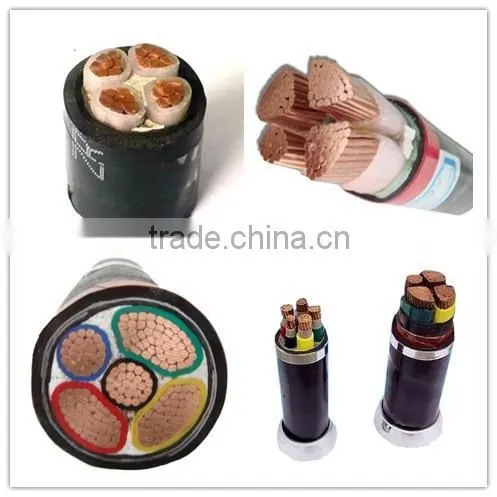

copper / aluminum cable YJV YJLV VV VLV all sizes cable
