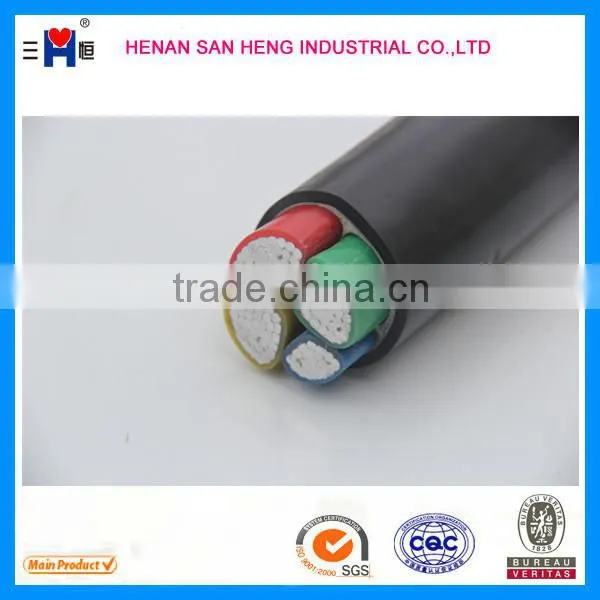

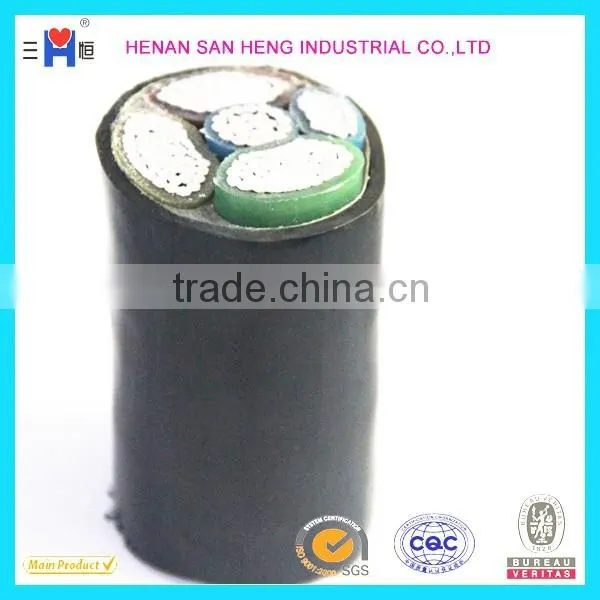

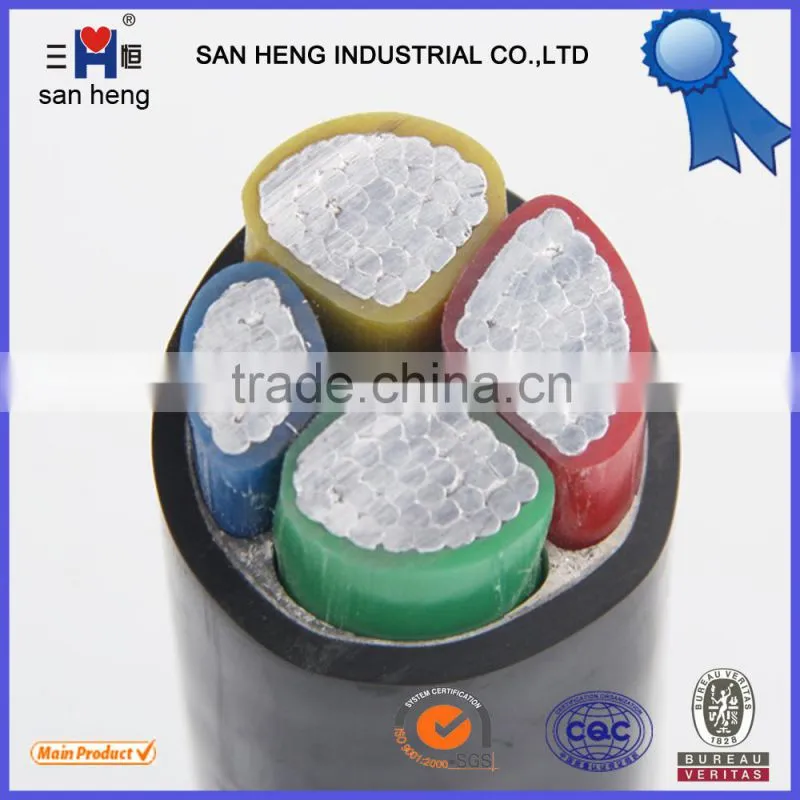

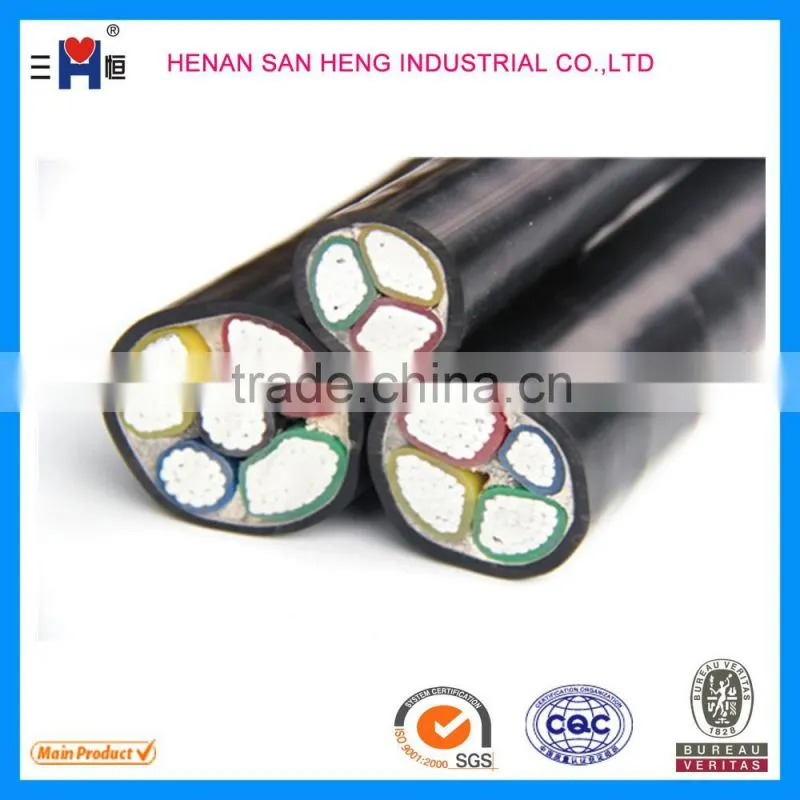

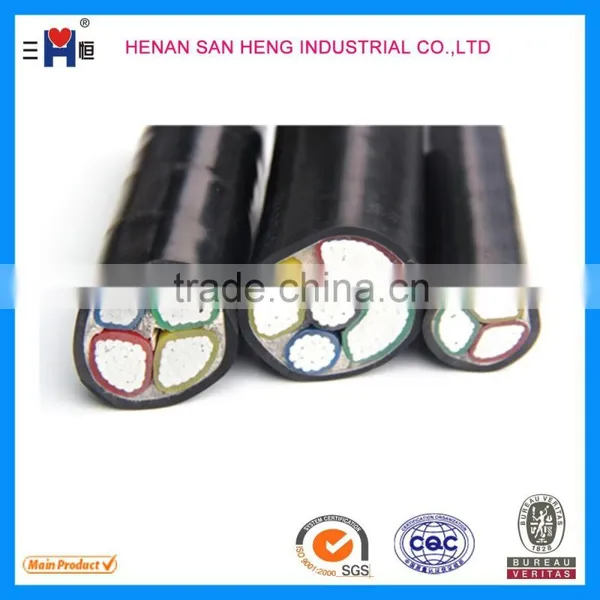

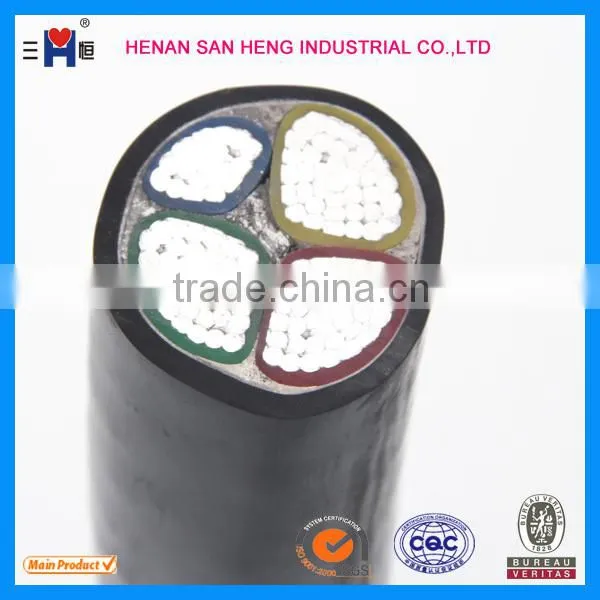

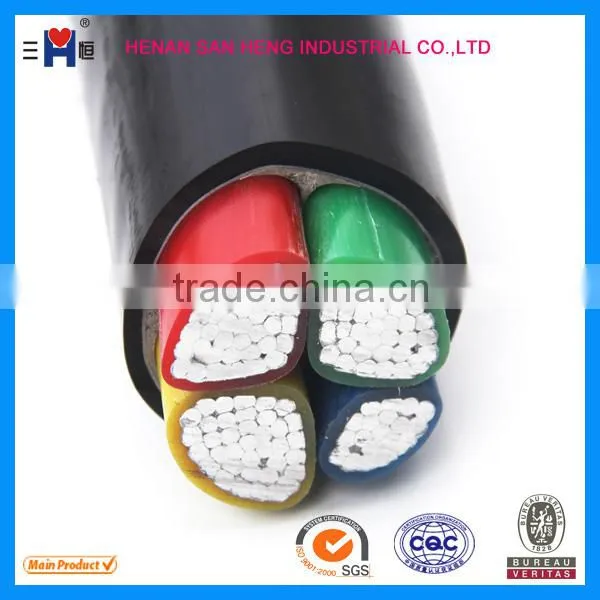

Aluminum Conductor Power Cable Electric Cable
()
1 Product Standard
This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA
standard as customer request.
2 Application
The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.
Operating Performance
1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃
4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
6). The test voltage (A.C.): 3.5kV/5min.
7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.
3 Construction:
Conductor: Solid or stranded copper,aluminum
Insulation: Cross-linked polyethylene( XLPE or PVC)
Circuit Identification: The insulation shall be red, black
Filler: Polypropylene lament with lapped binding tape
Inner Sheath: Polyvinyl chloride (Black)
Armor: Galvanized steel wire
Core-covering: Binding tape
Outer Sheath: Polyvinyl chloride (Black)
Package: Wooden Drum Package or Iron-wooden drum
4 Type and Name
| Type | Designation | |
| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable |
|
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable |
|
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
|
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
10. Product constructions and main technical parameters
