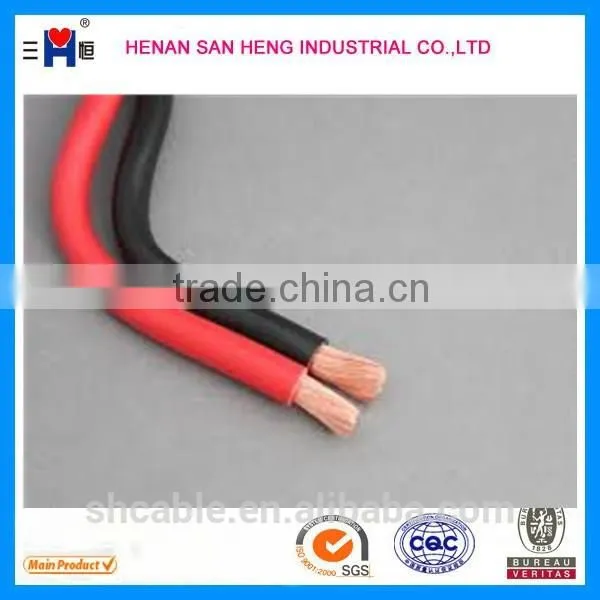

low voltage cable HO7V-K for house electric waring wire
Characteristics:
| Operating temperature: | +5°C to +70°C on the Conductor |
| Rated voltage: | H05V-K: 300/500 V H07V-K: 450/750 V |
| Max. temperature of short circuit: | 160° C on the conductor 140° C on the conductor / size>300 mm2 |
| Min. bending radius: | Fixed installation: 4x outer diameter |
Specifications Data:
| Section | Max diam. of conductor | Insulation thickness* |
Outer |
Max resistance at 20°C |
Cable weight |
| mm² | mm | mm | mm | ohms/km | kg/km |
H05V-K | |||||
| 0,5 | 0,21 | 0,6 | 2,1 | 39,0 | 9 |
| 0,75 | 0,21 | 0,6 | 2,3 | 26,0 | 12 |
| 1 | 0,21 | 0,6 | 2,5 | 19,5 | 15 |
H07V-K | |||||
| 1,5 | 0,26 | 0,7 | 2,9 | 13,3 | 20 |
| 2,5 | 0,26 | 0,8 | 3,6 | 7,98 | 30 |
| 4 | 0,31 | 0,8 | 4,1 | 4,95 | 45 |
| 6 | 0,31 | 0,8 | 4,7 | 3,30 | 65 |
| 10 | 0,41 | 1,0 | 6,1 | 1,91 | 110 |
| 16 | 0,41 | 1,0 | 7,1 | 1,21 | 160 |
| 25 | 0,41 | 1,2 | 8,7 | 0,780 | 250 |
| 35 | 0,41 | 1,2 | 9,9 | 0,554 | 340 |
| 50 | 0,41 | 1,4 | 11,6 | 0,386 | 480 |
| 70 | 0,51 | 1,4 | 13,3 | 0,272 | 670 |
| 95 | 0,51 | 1,6 | 15,2 | 0,206 | 890 |
| 120 | 0,51 | 1,6 | 17,0 | 0,161 | 1140 |
| 150 | 0,51 | 1,8 | 18,9 | 0,129 | 1410 |
| 185 | 0,51 | 2,0 | 21,0 | 0,106 | 1710 |
| 240 | 0,51 | 2,2 | 23,9 | 0,0801 | 2270 |
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Our factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, first-class technicians, Elite team, high quality workers.
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to be Qualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
1. Quality assurance
2. Professional production
3. Long service life
4. Customization
5. ISO 9001/CE/RoHS/CCC approved
6. Factory price, because we can make some raw material
7. Short delivery time
8. Factory direct sales, reasonable price
9. 15 years experience.
1.Q:Are you a factory or trading company?
A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A: Our factory has gained BV,SGS,CCC,ISO, certification.
This is cherry. If you have any problem , please feel free to contact me. Let me know your needs! RIGHT NOW ! ACTION !
