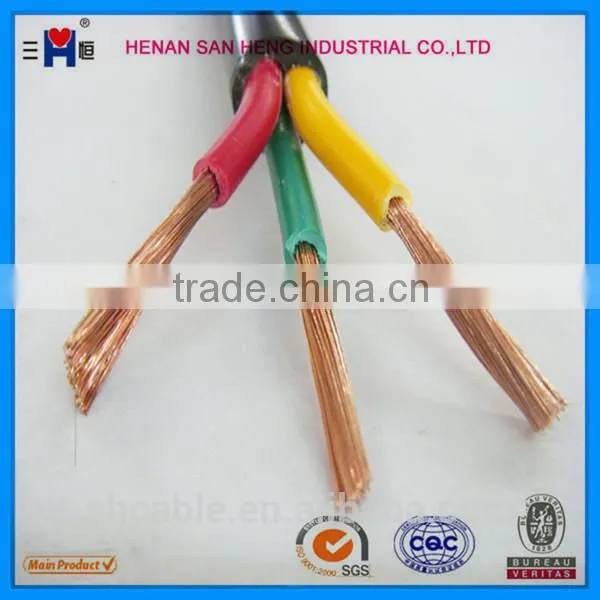

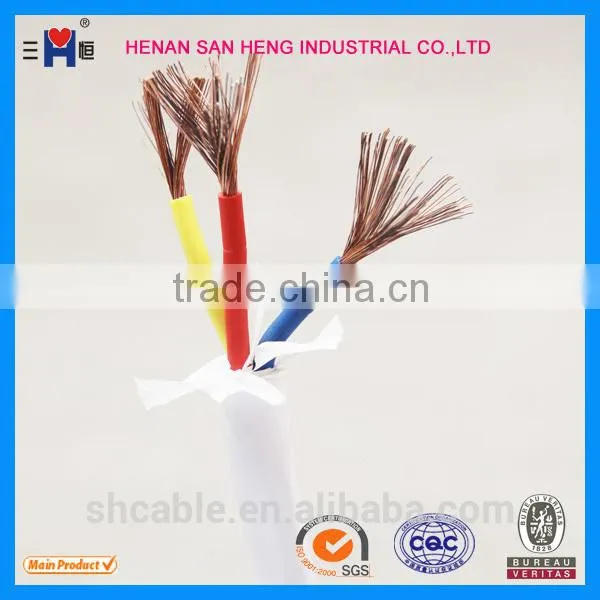

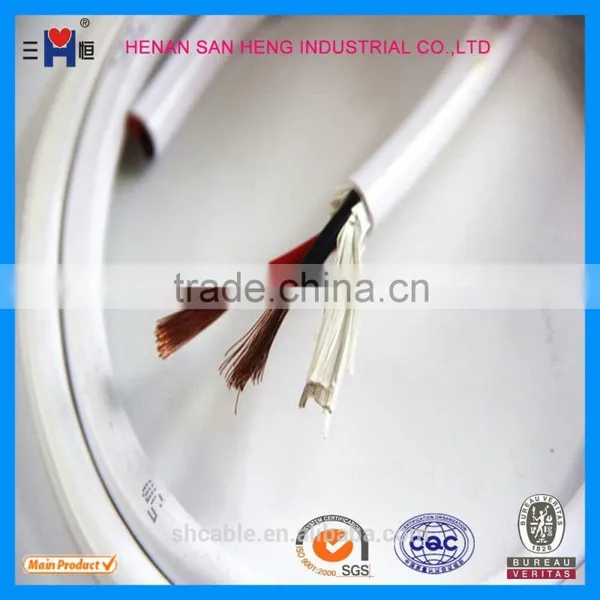

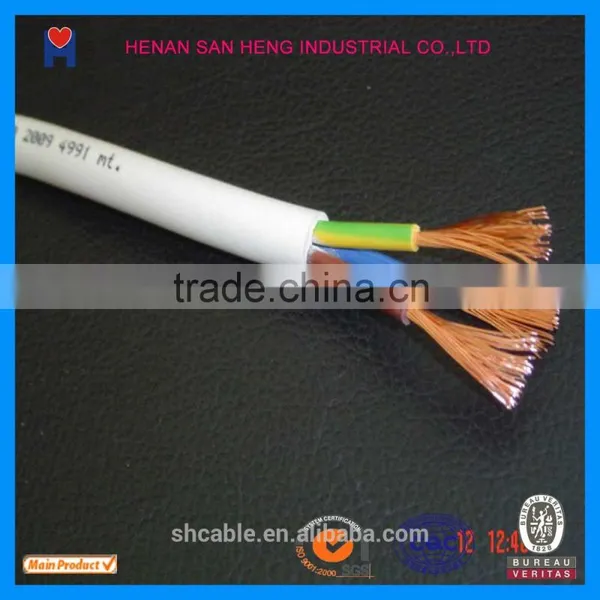

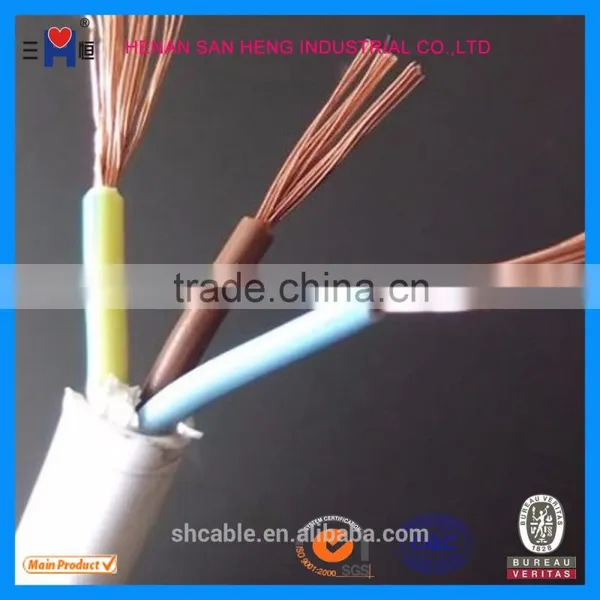

Factory price RVV /H05VV-F 3 core flexible cable
Description
1.This product fit for ac voltage 300/500V and below of domestic electrical appliances.of smaller size motoriace tools,of instruments,of various meters and motorized lighting installations.
2. Electric wire has high quality and low price .We can also produce products according to your special requirement.
3. We promise you of the most competitive prices. If you need, we can offer you some samples for your reference.
4. Rated temperature of the wire is 70 centigrade.
5. Finished insualtion core and finished power line are put into the water at the temperature 20+50°C for an hour,they should be able to bear stipulated acsohz,soaked voltagetest at stated.
6.Wire has excellent electric insulation chnical property,non-inflammability,so it is safe and convent in using .
7. If you have any problem about the electrical wire and cable, please feel free to connected with me.
Specifications:
Conductor
Finely stranded Copper conductor, bare, conductor category 5
Insulation & sheath
PVC
Nominal voltage U0/U
H03VVH2-F H03VV-F 300/300V
H05VVH2-F H05VV-F 300/500V
Temperature at continuous load
+70°C
|
No. of cores* nominal cross section |
No. of individual wires/diameter |
Wall thickness |
Wall thickness of sheath |
Outer dimension or outer diameter
Min. Max. |
||
mm2 |
mm |
mm |
mm |
mm |
||
H03VVH2-F | ||||||
2*0.5 |
16/0.20 |
0.5 |
0.6 |
3.0*4.9 |
3.7*5.9 |
|
2*0.75 |
24/0.20 |
0.5 |
0.6 |
3.2*5.2 |
3.8*6.3 |
|
H03VVH-F | ||||||
2*0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 |
5.9 |
|
2*0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
|
3*0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
|
3*0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
|
H05VVH2-F | ||||||
2*0.75 |
24/0.20 |
0.6 |
0.8 |
3.7*6.0 |
4.5*7.2 |
|
2*1 |
32/0.20 |
0.6 |
0.8 |
3.9*6.2 |
4.7*7.5 |
|
H05VVH-F | ||||||
2*0.75 |
24/0.20 |
0.6 |
0.8 |
5.7 |
7.2 |
|
2*1 |
32/0.20 |
0.6 |
0.8 |
5.9 |
7.5 |
|
2*1.5 |
30/0.25 |
0.7 |
0.8 |
6.8 |
8.6 |
|
2*2.5 |
49/0.25 |
0.8 |
1.0 |
8.4 |
10.6 |
|
3*0.75 |
24/0.20 |
0.6 |
0.8 |
6.0 |
7.6 |
|
3*1 |
32/0.20 |
0.6 |
0.8 |
6.3 |
8.0 |
|
3*1.5 |
30/0.25 |
0.7 |
0.9 |
7.4 |
9.4 |
|
3*2.5 |
49/0.25 |
0.8 |
1.1 |
9.2 |
11.4 |
|
4*0.75 |
24/0.20 |
0.6 |
0.8 |
6.6 |
8.3 |
|
4*1 |
32/0.20 |
0.6 |
0.9 |
7.1 |
9.0 |
|
4*1.5 |
30/0.25 |
0.7 |
1.0 |
8.4 |
10.5 |
|
4*2.5 |
49/0.25 |
0.8 |
1.1 |
10.1 |
12.5 |
|
5*0.75 |
24/0.20 |
0.6 |
0.9 |
7.4 |
9.3 |
|
5*1 |
32/0.20 |
0.6 |
0.9 |
7.8 |
9.8 |
|
5*1.5 |
30/0.25 |
0.7 |
1.1 |
9.3 |
11.6 |
|
5*2.5 |
49/0.25 |
0.8 |
1.2 |
11.2 |
13.9 |
|
Factory price RVV /H05VV-F 3 core flexible cable
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
