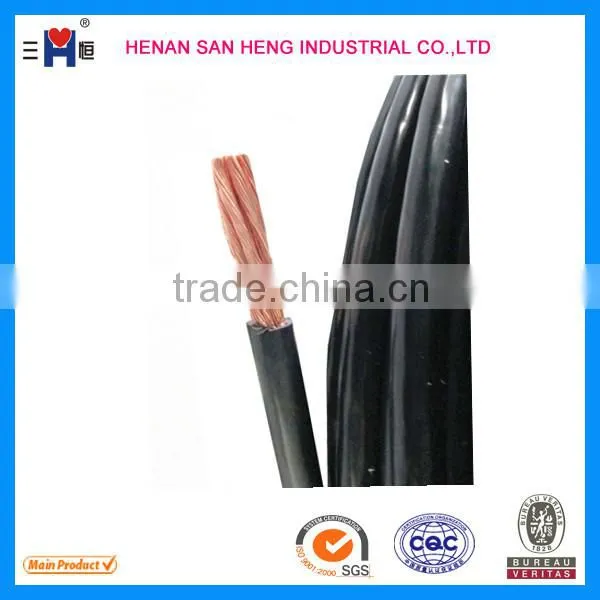

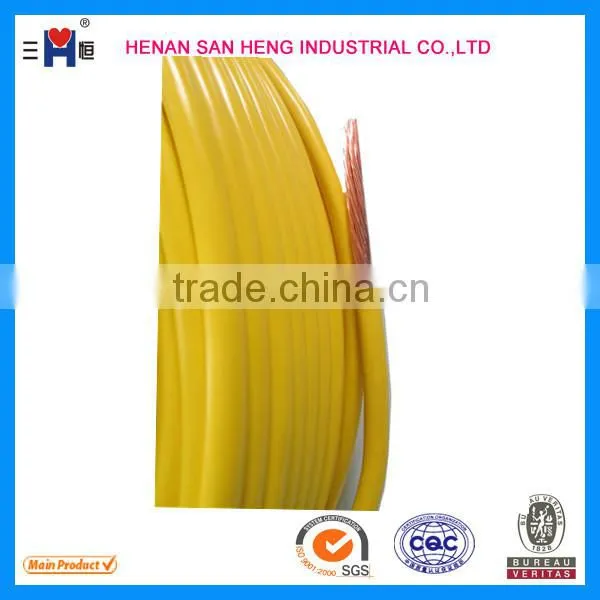

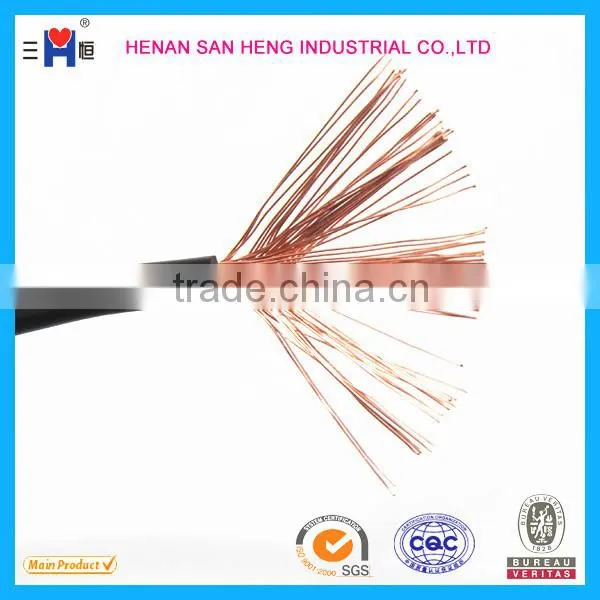

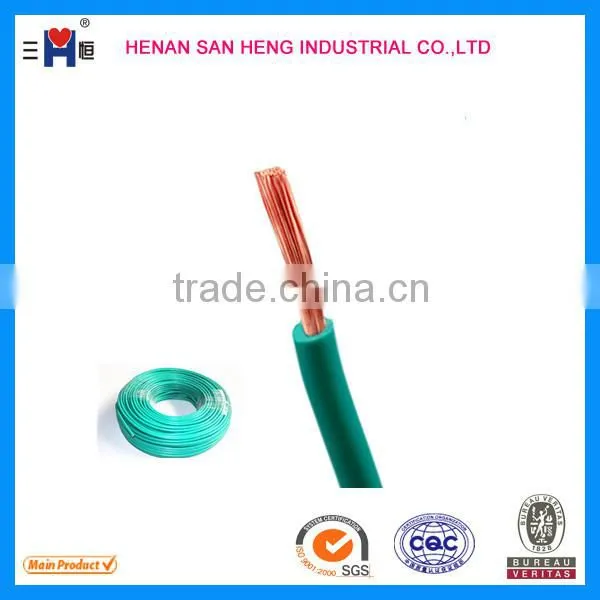

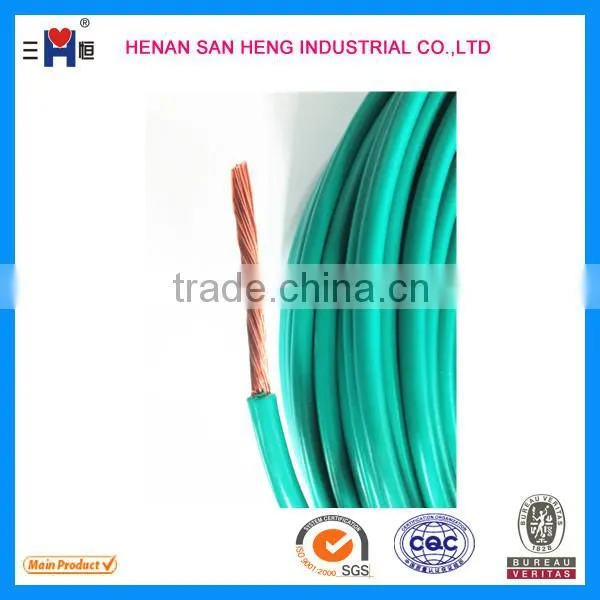

low voltage building wire multi strand copper electrical wires
1.Range of Application
Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.Service Conditions
Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.
3.Model and Name:see table1
Model |
Name |
RV |
Copper Core PVC Insulation Flexible Wire |
RVB |
Copper Core PVC Insulation Flat Flexible Wire |
RVS |
Copper Core PVC Insulation Twisted Flexible Wire |
RVV |
Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB |
Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-90 |
Copper Core Heat-resistak Losc PVC Flexible Wire |
4.Specification Size and Technical Data:see table 2
Nominal Section (mm2) |
Core Structure No./Dia.(mm) |
Max Dia.(mm) |
Reference Weight(kg/km) |
0.3 |
16/0.15 |
2.3 |
6.4 |
0.4 |
23/0.15 |
2.5 |
8.1 |
0.5 |
16/0.2 |
2.6 |
9.1 |
0.75 |
24/0.2 |
2.8 |
12.2 |
1.0 |
32/0.2 |
3.0 |
15.1 |
RV 450/750V
Nominal Section (mm2) |
Core Structure No./Dia.(mm) |
Max Dia.(mm) |
Reference Weight(kg/km) |
1.5 |
30/0.25 |
3.5 |
21.4 |
2.5 |
49/0.25 |
4.2 |
24.5 |
4 |
56/0.20 |
4.8 |
51.8 |
6 |
84/0.30 |
6.4 |
74.1 |
10 |
84/0.30 |
8.0 |
12.4 |
Package:
1) Packing length:100m per roll or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
