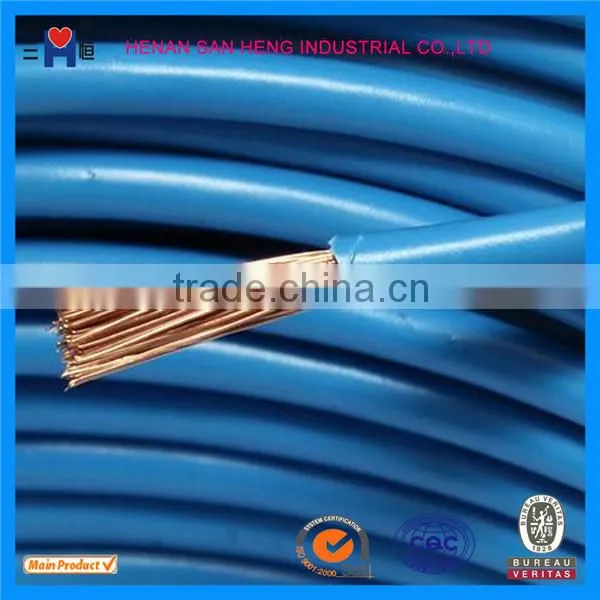

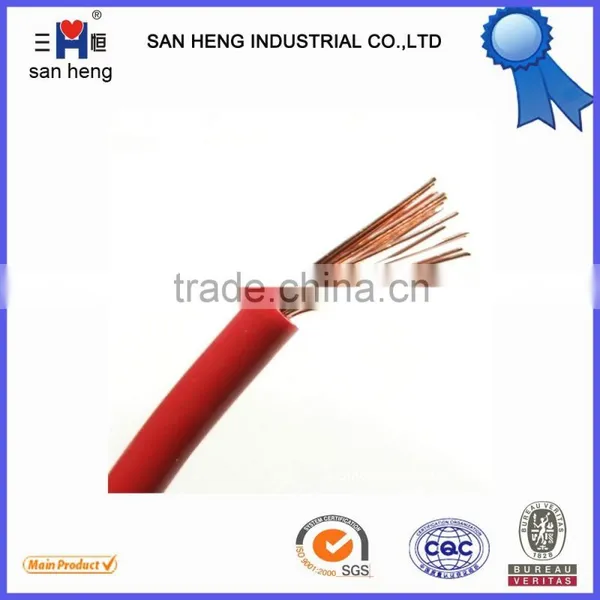

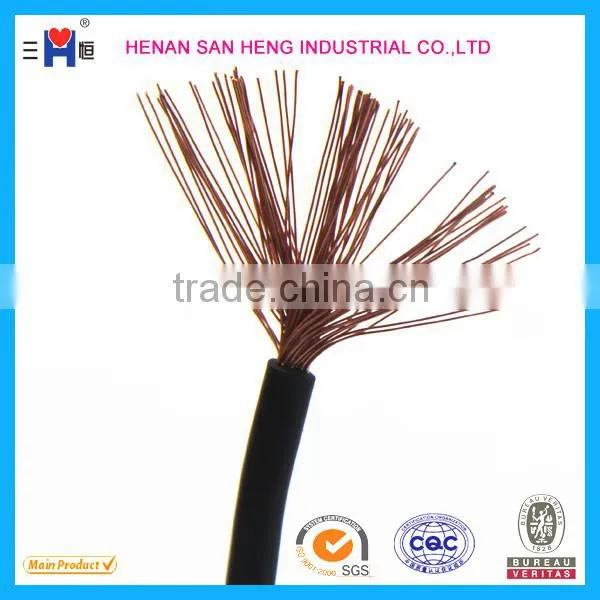

PVC insulated flexible electrical wire cable for house wiring
()
1.Range of Application
Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.Service Conditions
Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.
3.Model and Name:see table1
Model |
Name |
RV |
Copper Core PVC Insulation Flexible Wire |
RVB |
Copper Core PVC Insulation Flat Flexible Wire |
RVS |
Copper Core PVC Insulation Twisted Flexible Wire |
RVV |
Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB |
Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-90 |
Copper Core Heat-resistak Losc PVC Flexible Wire |
4.Specification Size and Technical Data:see table 2
Nominal Section (mm2) |
Core Structure No./Dia.(mm) |
Max Dia.(mm) |
Reference Weight(kg/km) |
0.3 |
16/0.15 |
2.3 |
6.4 |
0.4 |
23/0.15 |
2.5 |
8.1 |
0.5 |
16/0.2 |
2.6 |
9.1 |
0.75 |
24/0.2 |
2.8 |
12.2 |
1.0 |
32/0.2 |
3.0 |
15.1 |
Nominal Section (mm2) |
Core Structure No./Dia.(mm) |
Max Dia.(mm) |
Reference Weight(kg/km) |
1.5 |
30/0.25 |
3.5 |
21.4 |
2.5 |
49/0.25 |
4.2 |
24.5 |
4 |
56/0.20 |
4.8 |
51.8 |
6 |
84/0.30 |
6.4 |
74.1 |
10 |
84/0.30 |
8.0 |
12.4 |
Package:
1) Packing length:100m per roll or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
