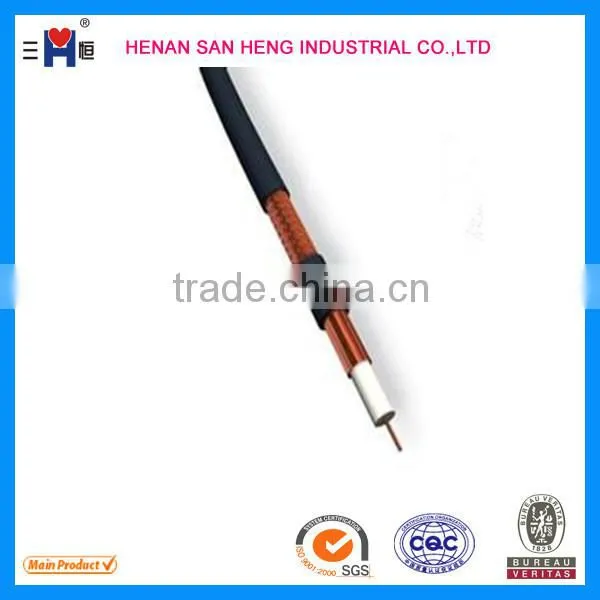

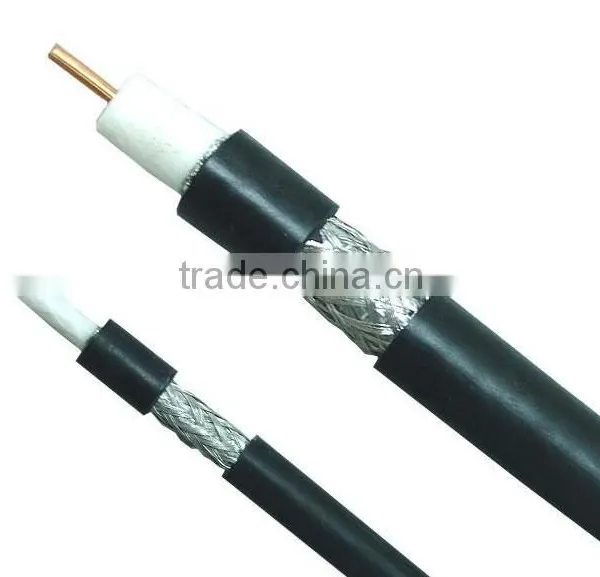

PE insulation PVC Jacket rg59 rg11 rg6 75 Ohm coaxial cable
1. Product Items:

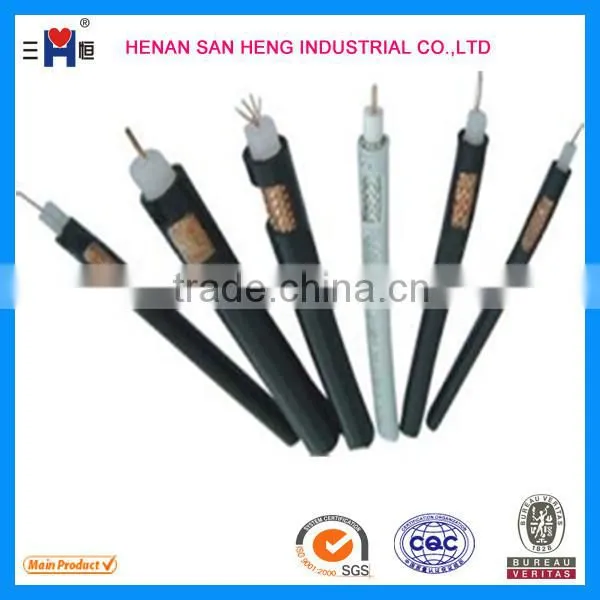

75 Ohm Coaxial Cables
| Item |
Structure (mm) |
Insulation Dia (mm) |
Braid Coverge (%) |
Approx Overall Dia (mm) |
| RG59 | 1/0.81 | 3.70 | 60% | 6.10 |
| RG59 Messenger | 1/0.81+1/1.30 | 3.70 | 60% | 6.10 |
| RG6 | 1/1.02 | 4.57 | 60% | 7.00 |
| RG6 Messenger | 1/1.02+1/1.30 | 4.57 | 60% | 7.00 |
| RG11 | 1/1.63 | 7.11 | 60% | 10.1 |
| RG11 Messenger | 1/1.63+1/1.83 | 7.11 | 60% | 10.1 |
| RG174 | 7/0.16 | 1.50 | 95% | 2.80 |
| 17 VATC | 1/1.13 | 4.85 | 60% | 6.90 |
| 19 VATC | 1/1.02 | 4.6 | 60% | 6.90 |
| KX6 | 7/0.2 | 3.70 | 70% | 6.10 |
| KX8 | 7/0.6 | 7.25 | 80% | 10.1 |
| QR500 | 1/2.77 | 11.5 | / | 14.7 |
| QR540 | 1/3.15 | 13.0 | / | 15.4 |
50 Ohm Coaxial Cables
| Item |
Structure (mm) |
Insulatin Dia (mm) |
Braid Coverage (%) |
Approx Overall Dia (mm) |
| RG58 | 19/0.18 | 2.95 | 95% | 4.95 |
| RG213 | 7/0.75 | 7.25 | 95% | 10.1 |
| RG223 | 1/0.90 | 2.95 | 95% | 5.30 |
| RG214 | 7/0.75 | 7.25 | 95% | 10.80 |
| RG8 | 7/0.75 | 7.24 | 95% | 10.30 |
| RG195 | 1/0.94 | 2.79 | 95% | 4.95 |
| RG200 | 1/1.12 | 2.95 | 95% | 4.95 |
| RG400 | 1/2.74 | 7.24 | 95% | 10.29 |
| RG600 | 1/4.47 | 11.56 | 95% | 14.99 |
2.Product Description:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
4. Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required.
