Specifications
-Copper solid wire-Manufacture more than 20years experience
-Quick delivery
-Competitive price with good quality
We take quality management as the foundation. The company has passed the identification of ISO9001 Quality Management System, we create the famous brand with international comperitiveness by modernized management, advanced technology, first-rate mailtechnology and technical force.

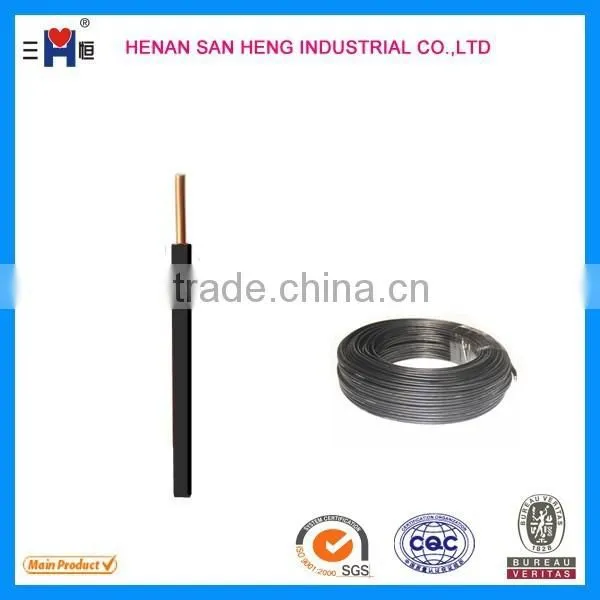

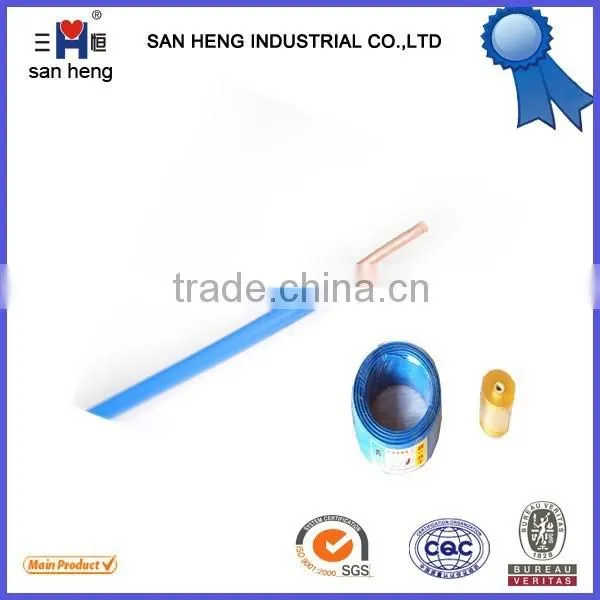

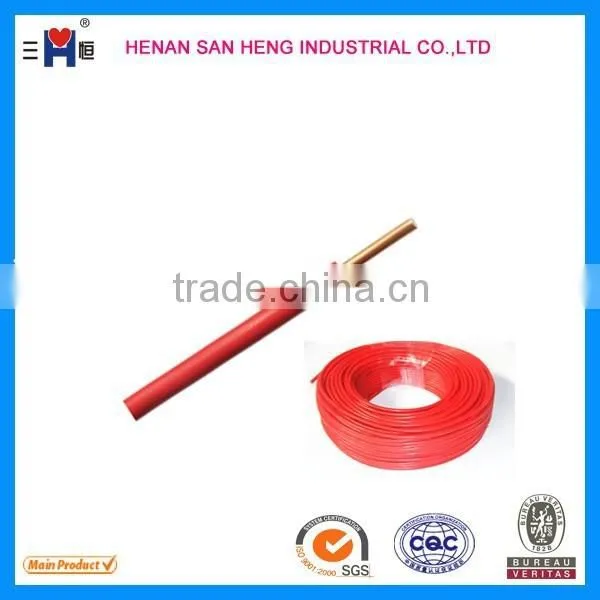

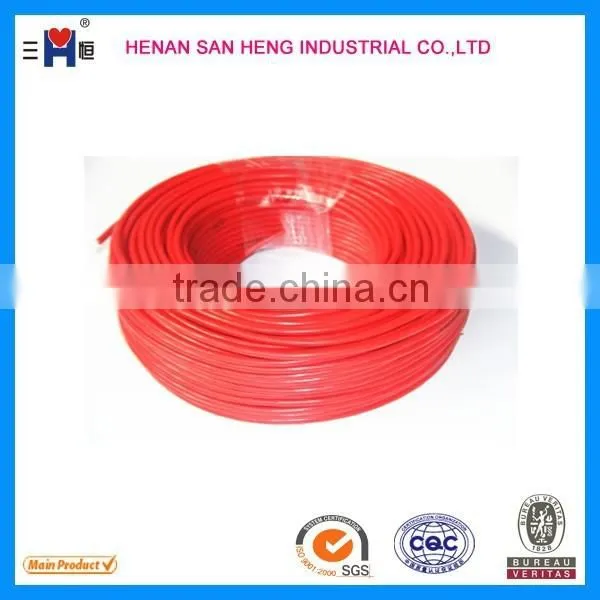

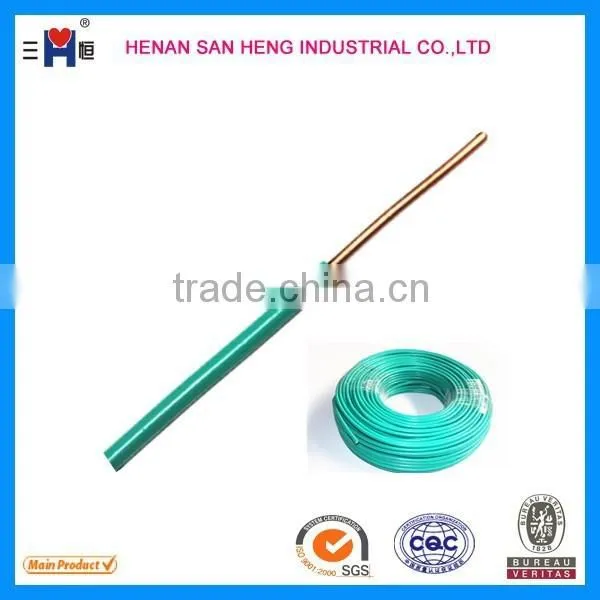

single solid copper core PVC insulation electrical wire
1. Cable is made by single soild copper wire,PVC insulation
2. Conductor: t100% pure copper
3. Range of application:this product is fit A.C rated voltage 450/750V
4.PVC type TI Ito BS-6746 rated temp7o °C; also available for 105 °C
5.Colour: Red, Yellow, Blue, Black and Yellow Green
6.Application:Includes house wiring, factory wiring, switching panel
distribution boards& installation purposes.
7. We can also customize electrical wire and cable as your request!
8. Specification,Size and Technical Date:
BV 300/500V | |||
|
Nominal Section
(mm2) |
No.Dia. of Core (mm) |
Max outer diameter (mm) |
Conductor resistance at 20C
(≤Ωkm) |
0.5 |
1/0.8 |
2.4 |
36.0 |
0.75(A) |
1/0.97 |
2.6 |
24.5 |
0.75(B) |
7/0.37 |
2.8 |
24.5 |
1(A) |
1/1.13 |
2.8 |
18.1 |
1(B) |
7/0.43 |
3.0 |
18.1 |
BV 450/750V | |||
1.5(A) |
1/1.38 |
3.3 |
- |
1.5(B) |
7/0.52 |
3.5 |
- |
2.5(A) |
1/1.78 |
3.9 |
11.8 |
2.5(B) |
7/0.68 |
4.2 |
11.8 |
4(A) |
1/2.25 |
4.4 |
7.39 |
4(B) |
7/0.85 |
4.8 |
7.39 |
6(A) |
7/0.85 |
4.8 |
4.91 |
6(B) |
7/1.04 |
5.4 |
4.91 |
10 |
7/1.35 |
7.0 |
3.08 |
16 |
7/1.70 |
8.0 |
1.91 |
25 |
27/2.04 |
10.0 |
1.20 |
35 |
27/2.52 |
11.5 |
0.868 |
50 |
19/1.78 |
13.0 |
0.641 |
70 |
19/2.14 |
15.0 |
0.443 |
95 |
19/2.52 |
17.5 |
0.320 |
120 |
37/2.03 |
19.0 |
0.253 |
150 |
37/2.25 |
21.0 |
0.206 |
185 |
37/2.52 |
23.5 |
0.164 |
240 |
61/2.25 |
26.5 |
0.125 |
300 |
61/2.52 |
29.5 |
0.100 |
1.The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
2.The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
