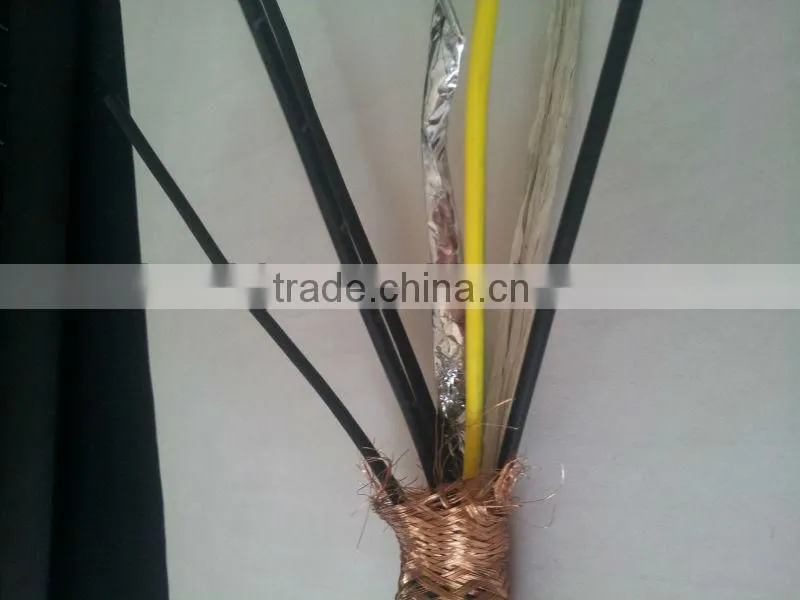

Help CenterH05VV5 - F 0.75M G4 SCREEN FLEX_ CABLE
Related Products
-
H05VV5 - F 6M G4 SCREEN FLEX _ CABLEUS$ 1 - 4.22MOQ: 1 Kilometer -
H05VV5 -F 1.5M G5 SCREEN FLEX _ CABLEUS$ 1 - 80MOQ: 1 Kilometer
-
Ccs Wire,ccs.copper Clad Steel WireUS$ 0.32 - 0.48MOQ: 10 Kilometers
-
Cca Wire, Copper Coated Aluminum WireUS$ 9.13 - 9.15MOQ: 1000 Meters
-
Copper/aluminum Core Electrical Cable Wire 10mm2 16mm2US$ 0.5 - 9MOQ: 1 Kilometer
Specifications
-Prompt delivery,quality assured-CCC IEC ISO
-Rated Voltage:300/500V
-Manufacture more than 20 years
-Stock available

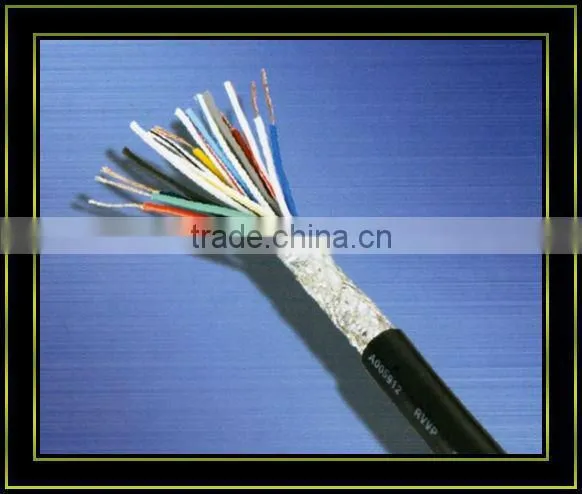

Copper Core PVC Insulation Sheath Round Flexible SCREEN RVVP -CABLE Wire
1.This product fit for ac voltage 300/500V and below of domestic electrical appliances.of smaller size motoriace tools,of instruments,of various meters and motorized lighting installations.
2. Electric wire has high quality and low price .We can also produce products according to your special requirement.
3. We promise you of the most competitive prices. If you need, we can offer you some samples for your reference.
4. Rated temperature of the wire is 70 centigrade.
5. Finished insualtion core and finished power line are put into the water at the temperature 20+50°C for an hour,they should be able to bear stipulated acsohz,soaked voltagetest at stated.
6.Wire has excellent electric insulation chnical property,non-inflammability,so it is safe and convent in using .
7. If you have any problem about the electrical wire and cable, please feel free to connected with me.
8. Specifications:
CONDUCTOR |
INSULATION |
JACKET |
MAX COND RESISTENCE (20 Ω/KM)
|
|||||
|
Cross section (mm²) |
Core structure (No./mm) |
Dia (mm) |
Core |
Insulation Thinckness (mm) |
O.D (mm) |
Jacket Thickness (mm) |
O.D (mm) |
|
|
0.75 |
24/0.20 |
1.13 |
2 |
0.61 |
2.35 |
0.80 |
6.30 |
26.7 |
3 |
0.61 |
2.35 |
0.82 |
6.70 |
||||
4 |
0.61 |
2.35 |
0.82 |
7.30 |
||||
5 |
0.61 |
2.35 |
0.93 |
8.20 |
||||
|
1 |
32/0.20 |
1.31 |
2 |
0.60 |
2.50 |
0.80 |
6.60 |
20.0 |
3 |
0.60 |
2.50 |
0.86 |
7.10 |
||||
4 |
0.60 |
2.50 |
0.93 |
7.90 |
||||
5 |
0.60 |
2.50 |
0.93 |
8.60 |
||||
|
1.5 |
30/0.25 |
1.58 |
2 |
0.71 |
3.00 |
0.80 |
7.60 |
13.7 |
3 |
0.71 |
3.00 |
0.92 |
8.30 |
||||
4 |
0.71 |
3.00 |
1.08 |
9.40 |
||||
5 |
0.71 |
3.00 |
1.15 |
10.40 |
||||
|
2.5 |
49/0.25 |
2.02 |
2 |
0.82 |
3.65 |
1.00 |
9.30 |
8.21 |
3 |
0.82 |
3.65 |
1.07 |
10.00 |
||||
4 |
0.82 |
3.65 |
1.19 |
11.20 |
||||
5 |
0.82 |
3.65 |
1.32 |
12.50 |
||||
Send Inquiry to This Supplier
