H05V-K (cabel) Electric Cable

Name: H05V-K (cabel) Electric Cable
Brand: SanHeng
SKU: 109630907
Availability: InStock

H05V-K (cabel) Electric Cable thumbnail-1

H05V-K (cabel) Electric Cable thumbnail-2

H05V-K (cabel) Electric Cable thumbnail-3

H05V-K (cabel) Electric Cable thumbnail-4

H05V-K (cabel) Electric Cable thumbnail-5

H05V-K (cabel) Electric Cable thumbnail-6

US$ 1 - 80 MOQ: 1 Kilometer

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

SanHeng

Model Number:

BVR electric cabel

Contact Supplier Request Quote Chat Now

Henan Sanheng Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name SanHeng

Model Number BVR electric cabel

Type Bare

Application Other, Heating, heating or construction

Conductor Material Copper

Conductor Type Other, Stranded, Stranded

Insulation Material PVC

Specifications

PVC Insulated BV Wire electric cabel
1.Rated temperature: 65~75
2.Solid bare copper conductor
3.ISO9001 & ISO14001

H05V-K (cabel) electric cable

1 Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC60227

2 Rated Voltages :

300/500V 450/750V (600/1000V also available)

3 Application

The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical appliances

like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less

Working Tempreture

The temperature allowing the cable of 227IEC02(RV) to work for long time should not exceed +70 centigrade, and installation temperature should not less than -15centigrade. And for RV-105, the operating temperature should not exceed 105 centigrade.

4 Model and Name

Model	Name
BV	Copper Core PVC Insulation Wire
BLV	Aluminum Core PVC Insulation Wire
BVR	Copper Core PVC Insulation Flexible Wire
BVV	Copper Core PVC Insulation PVC Sheath Round Wire
BVVB	Copper Core PVC Insulation PVC Sheath Flat Wire
BLVVB	Aluminum Core PVC Insulation PVC Sheath Flat Wire
BV-90	Copper Core Heat-resistance 105oC PVC Insulation

5 Solid copper electric wire / Stranded Copper Electric Wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Flexible wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0

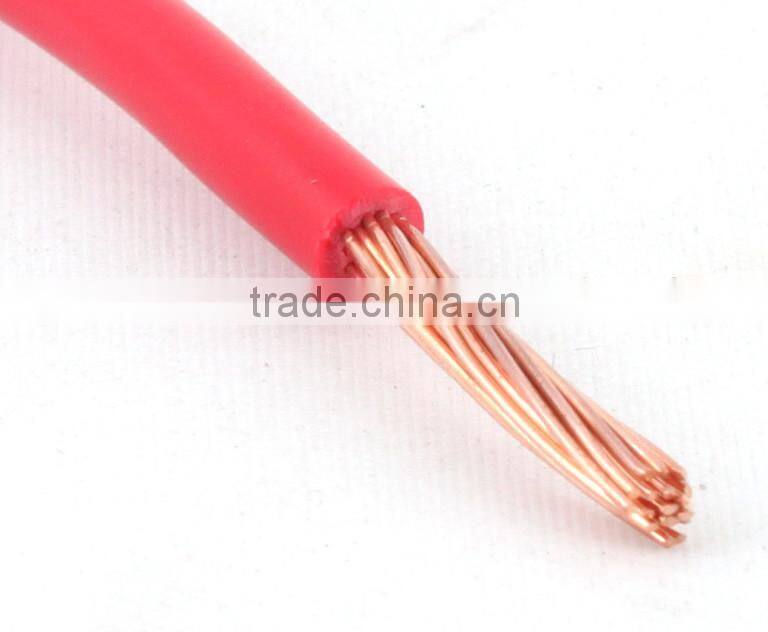

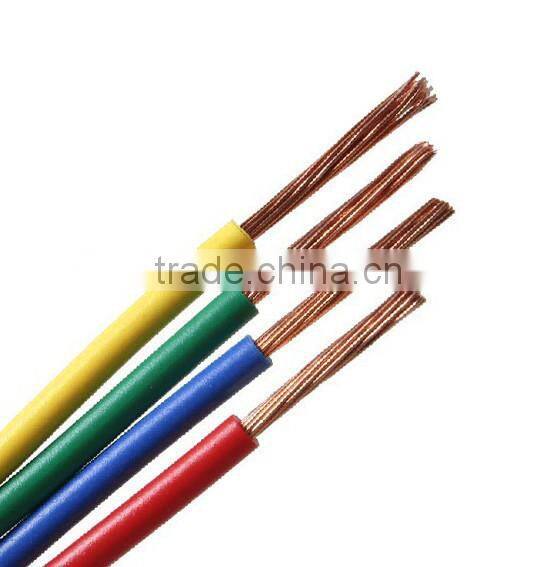

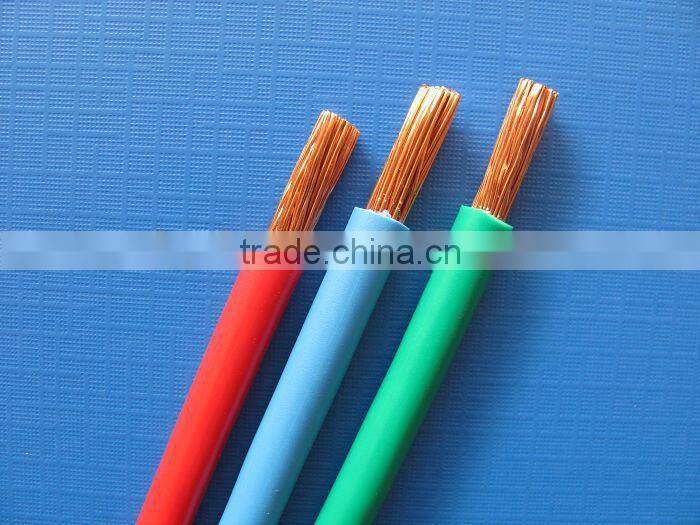

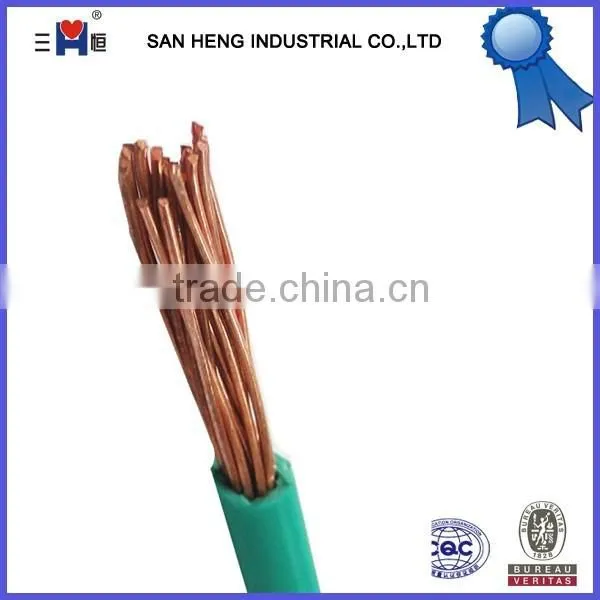

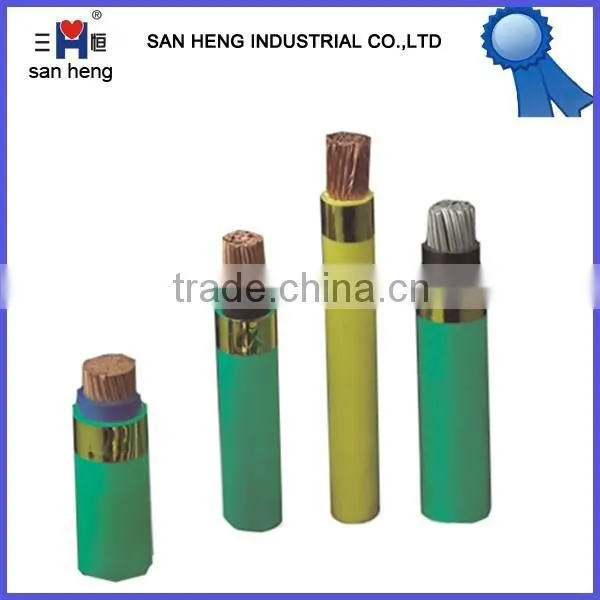

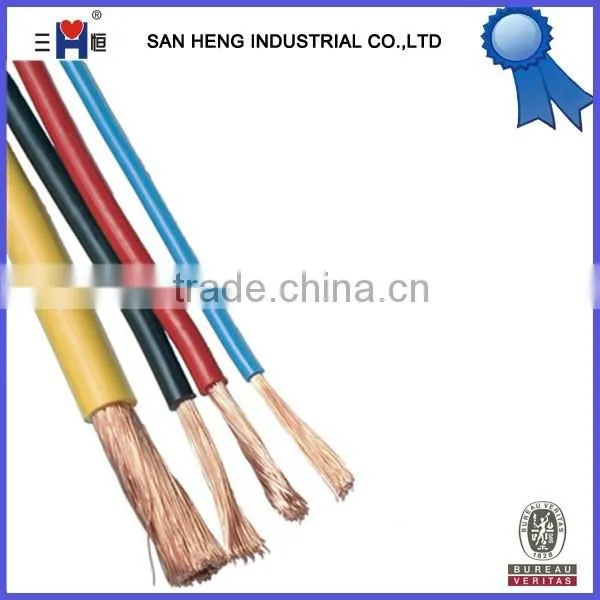

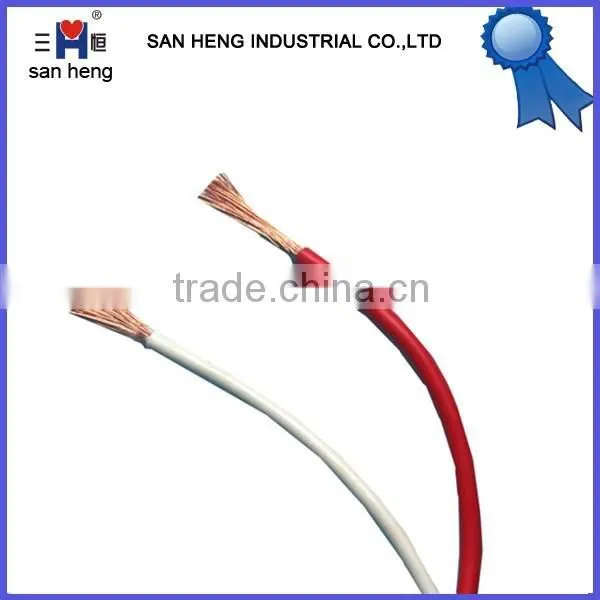

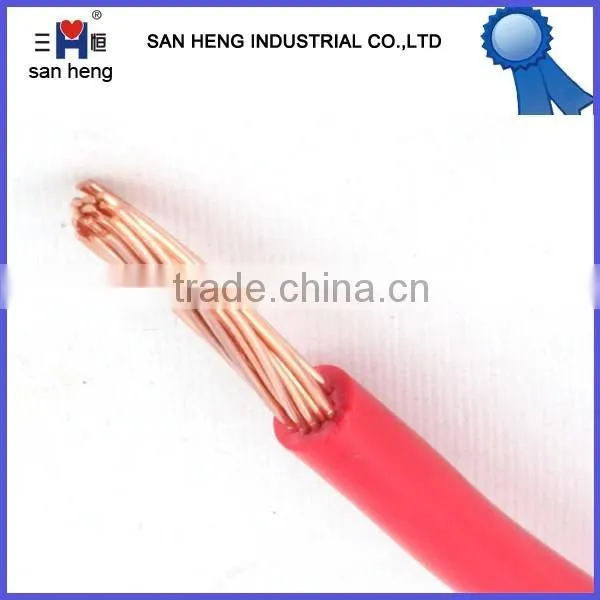

Product pictures

We are manufacturer supply wires and cables. accept OEM service, provide free samples.

We have high quality products, best price and best service !

Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !

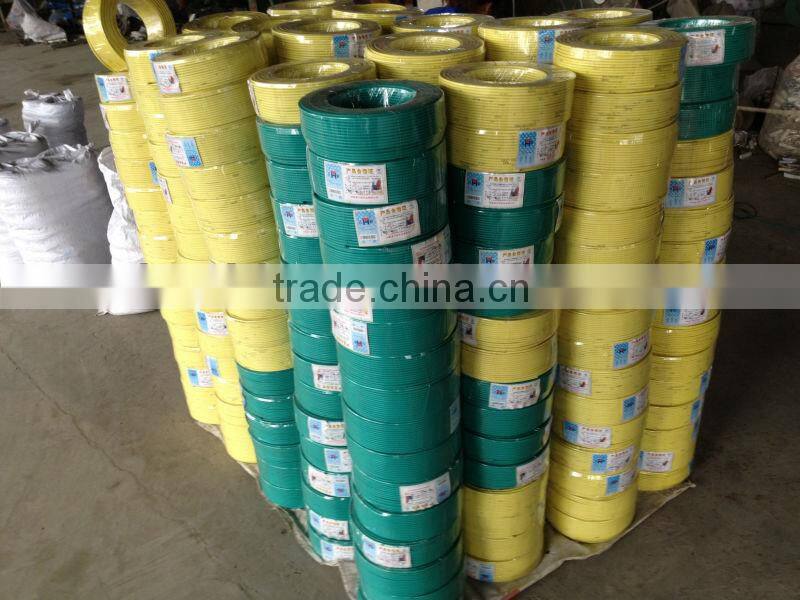

Packaging & Shipping

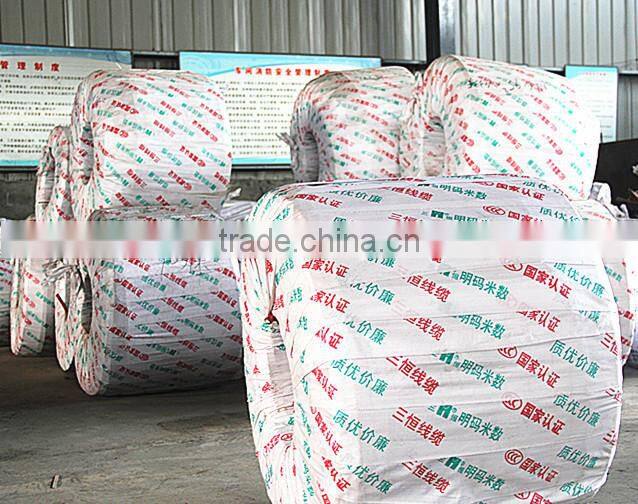

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.

Company Information

- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.

- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.

Certifications

Quality First ! Customer First ! Service First !

We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.

FAQ

1.Q:Are you a factory or trading company?

A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?

A: We are honored to offer you samples according your inquiry.

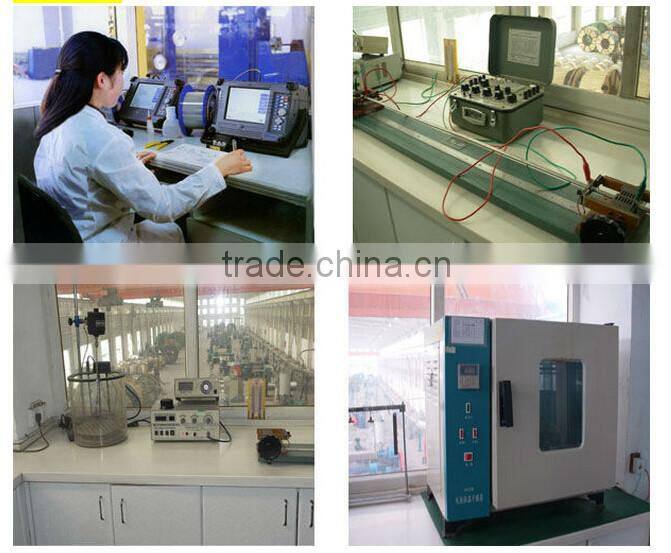

4.Q:How does your factory do regarding quality control?

A: Our factory has gained BV,SGS,CCC,ISO, certification.

Our Services

♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.

♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.

♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
